333-056 Series
Manufacturer: EDAC Inc.
Beta
⌘K

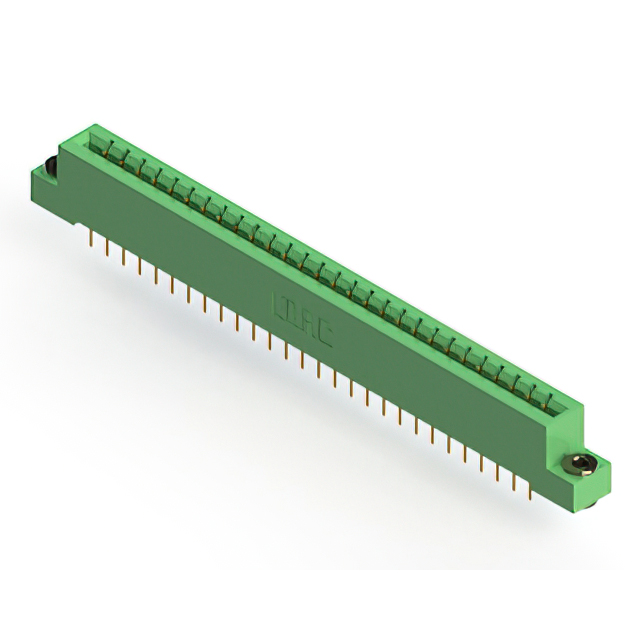

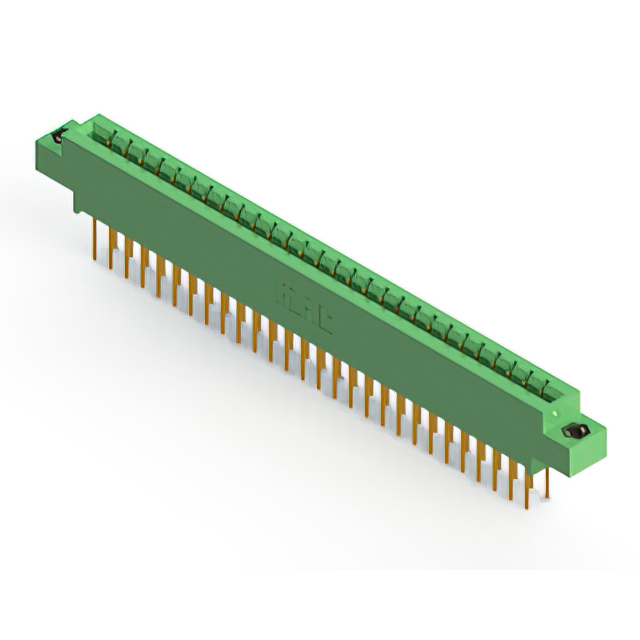

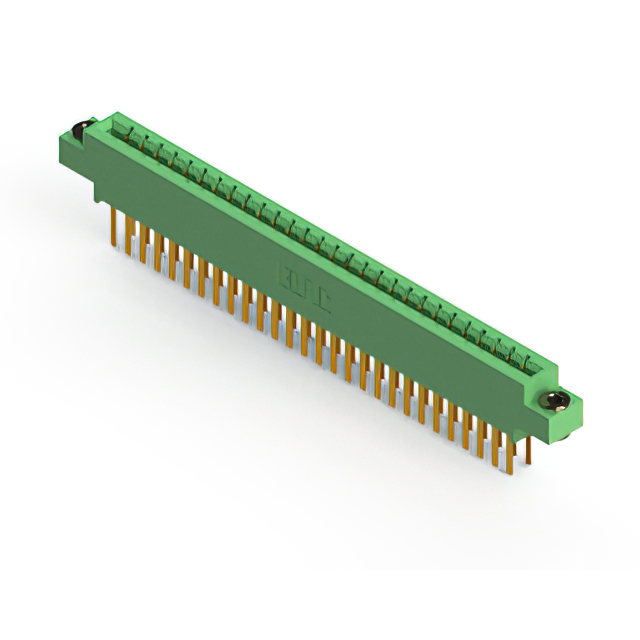

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 56 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows [custom] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Number of Rows [custom] | Number of Positions | Read Out | Card Type | Color | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Number of Positions/Bay/Row | Contact Type | Pitch | Pitch | Mounting Type | Gender | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | 0.25 Ám | 10 Áin | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | -40 C | 105 ░C | Solder | 2 | 56 | Dual | Non Specified - Dual Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 28 | Cantilever | 3.96 mm | 0.156 in | Through Hole | Female | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | 0.25 Ám | 10 Áin | 0.128 " | 3.25 mm | -40 C | 105 ░C | Solder | 2 | 56 | Dual | Non Specified - Dual Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 28 | Cantilever | 3.96 mm | 0.156 in | Right Angle Through Hole | Female | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | 0.25 Ám | 10 Áin | 0.116 " | Floating Bobbin Top Mount Opening | 2.95 mm | -40 C | 105 ░C | Wire Wrap | 2 | 56 | Dual | Non Specified - Dual Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 28 | Cantilever | 3.96 mm | 0.156 in | Through Hole | Female | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | -40 C | 105 ░C | Solder | 2 | 56 | Dual | Non Specified - Dual Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 28 | Cantilever | 3.96 mm | 0.156 in | Through Hole | Female | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | 0.25 Ám | 10 Áin | 0.116 " | Floating Bobbin Top Mount Opening | 2.95 mm | -40 C | 105 ░C | Solder | 2 | 56 | Dual | Non Specified - Dual Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 28 | Cantilever | 3.96 mm | 0.156 in | Through Hole | Female | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | 0.25 Ám | 10 Áin | 0.128 " | 3.25 mm | -40 C | 105 ░C | Solder | 2 | 56 | Dual | Non Specified - Dual Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 28 | Cantilever | 3.96 mm | 0.156 in | Through Hole | Female | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | 0.25 Ám | 10 Áin | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | Wire Wrap | 2 | 56 | Dual | Non Specified - Dual Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 28 | Cantilever | 3.96 mm | 0.156 in | Right Angle Through Hole | Female | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Wire Wrap | 2 | 56 | Dual | Non Specified - Dual Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 28 | Cantilever | 3.96 mm | 0.156 in | Right Angle Through Hole | Female | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | 0.25 Ám | 10 Áin | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | -40 C | 105 ░C | Wire Wrap | 2 | 56 | Dual | Non Specified - Dual Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 28 | Cantilever | 3.96 mm | 0.156 in | Through Hole | Female | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | 0.25 Ám | 10 Áin | 0.116 " | Floating Bobbin Top Mount Opening | 2.95 mm | -40 C | 105 ░C | Solder | 2 | 56 | Dual | Non Specified - Dual Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 28 | Cantilever | 3.96 mm | 0.156 in | Board Edge Straddle Mount | Female | Card Extender |
