9CRB0412 Series

Catalog

DC FAN AXIAL BALL BEARING 12V 10.8V TO 13.2V 25.1CFM 61DB 40 X 40 X 56MM PWM/SENSOR

Part	Material - Blade	Current Rating (Amps)	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	RPM [custom]	RPM [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Noise	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Bearing Type	Voltage - Rated	Width [y]	Termination	Weight [custom]	Weight [custom]	Static Pressure	Static Pressure	Fan Type	Air Flow	Air Flow
Sanyo Denki America Inc. 9CRB0412P5J201	Plastic	0.72 A	40000 Hrs	10.8 VDC	13.2 VDC	Plastic	17300 RPM	16000 RPM	-20 ░C	70 °C	8.64 W	61 dB(A)	cURus TUV	40 mm	40 mm	Ball	12 VDC	56 mm	4	100.7 g	0.222 lb	2.61 in H2O	650.1 Pa	Tubeaxial (Dual)	0.703 m³/min	25.1 CFM

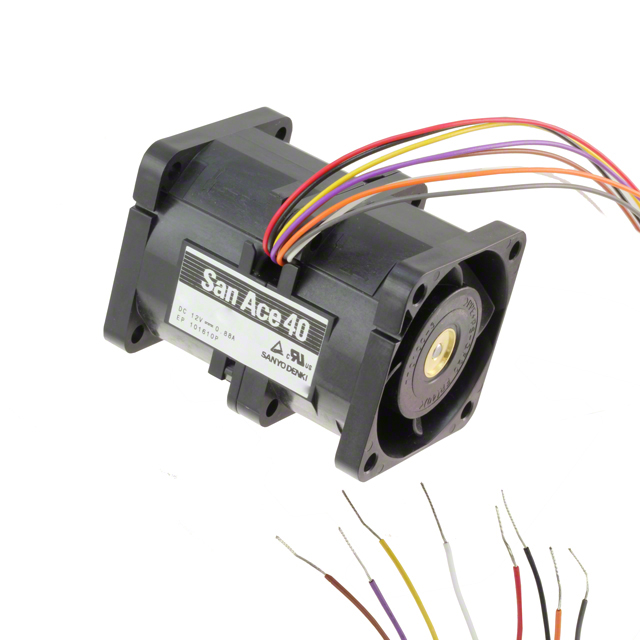

Sanyo Denki America Inc. 9CRB0412P5K001	Plastic	880 mA	40000 Hrs	10.8 VDC	13.2 VDC	Plastic	19000 RPM	17000 RPM	-20 ░C	70 °C	10.56 W	62 dB(A)	cURus TUV	40 mm	40 mm	Ball	12 VDC	56 mm	4	100.7 g	0.222 lb	2.93 in H2O	729.8 Pa	Tubeaxial (Dual)	0.75 mł/min	26.8 CFM
