H2174 Series
Manufacturer: Harwin Inc.
Beta
⌘K

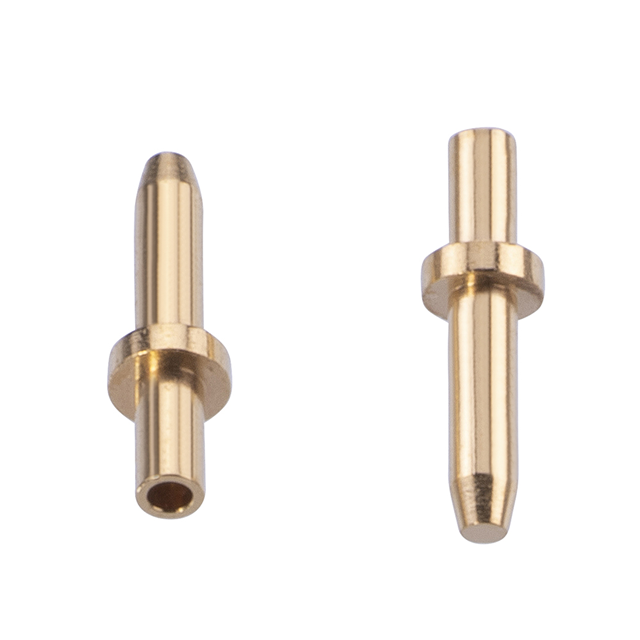

MALE VERTICAL THROUGHBOARD TERMINAL PIN ROHS COMPLIANT: YES
| Part | Termination | Board Thickness | Board Thickness | Contact Finish | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Terminal Style | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Insulation | Contact Material | Length - Above Flange | Length - Above Flange [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Mounting Type | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Swage | 0.063 in | 1.6 mm | Gold | 0.041 in | 1.04 mm | Single End | 1.04 mm | 1.14 mm | 0.041 in | 0.045 in | Non-Insulated | Brass | 3.81 mm | 0.15 in | 1.77 mm | 0.07 in | 6.4 mm | 0.252 in | Through Hole | 2.08 mm | 0.082 " | PC Pin |
