LCCF Series

Terminals Copp Comp Lug 2H 250 kcmi

Manufacturer: Panduit Corp

Catalog

Terminals Copp Comp Lug 2H 250 kcmi

Catalog

Terminals Copp Comp Lug 2H 250 kcmi

Part	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Contact Finish	Diameter - Barrel ID	Diameter - Barrel ID	Contact Material	Diameter - Ring ID	Diameter - Ring ID	Termination	Tab Thickness [custom]	Tab Thickness [custom]	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size	Terminal Style	Length - Overall [x]	Length - Overall [x]	Terminal Type	Wire Gauge	Mounting Type	Color	Insulation	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Tab Thickness	Tab Thickness	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall	Length - Overall	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Tab Thickness [x]	Tab Thickness [x]	Diameter - Ring ID	Wire Gauge

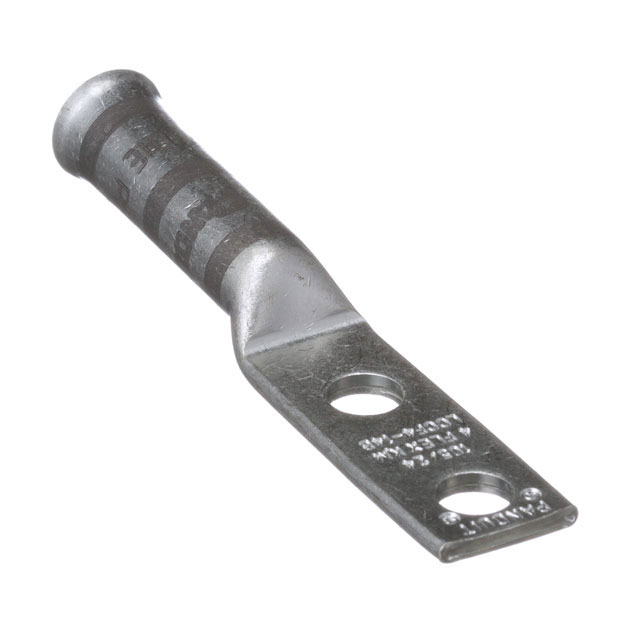

Panduit Corp LCCF4-14B-L	0.46 "	11.68 mm	Electro-Tin	7.11 mm	0.28 in	Copper	0.27 in	6.86 mm	Barrel Crimp	0.09 in	2.29 mm	0.55 in	13.97 mm	0.25 Stud	Two Stud Holes	73.15 mm	2.88 in	Rectangular Tongue	4 AWG	Free Hanging (In-Line)	Gray	Non-Insulated

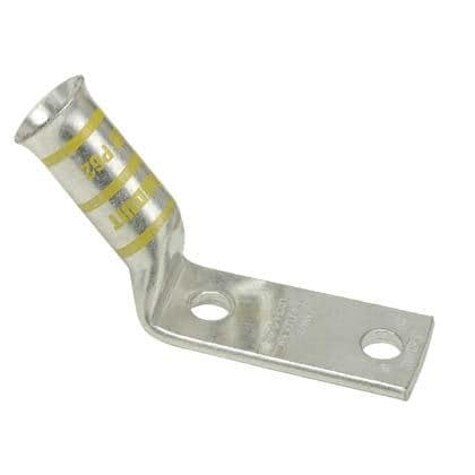

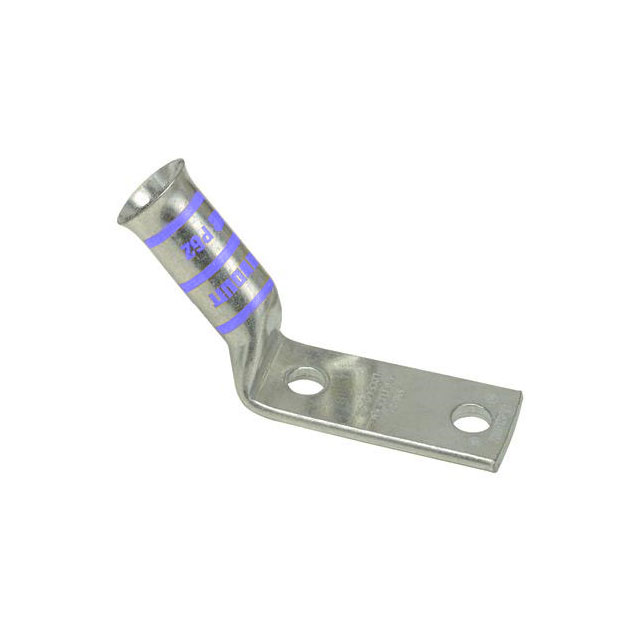

Panduit Corp LCCF6-14AH-L	0.37 in	9.4 mm	Electro-Tin			Copper	0.27 in	6.86 mm	Barrel Crimp					0.25 Stud	Two Stud Holes			Rectangular Tongue	6 AWG	Free Hanging (In-Line)	Blue	Non-Insulated	0.22 in	5.59 mm	0.08 "	2.03 mm	12.19 mm	0.48 "
Panduit Corp LCCF8-14B-L	0.32 in	8.13 mm	Electro-Tin			Copper	0.27 in	6.86 mm	Barrel Crimp					0.25 Stud	Two Stud Holes	59.44 mm	2.34 "	Rectangular Tongue	8 AWG	Free Hanging (In-Line)	Red	Non-Insulated	0.18 in	4.57 mm	0.07 in	1.78 mm	12.19 mm	0.48 "
Panduit Corp LCCF1-14B-X			Electro-Tin			Copper	0.27 in	6.86 mm	Barrel Crimp					0.25 Stud	Two Stud Holes			Rectangular Tongue	1 AWG	Free Hanging (In-Line)	Pink	Non-Insulated	0.39 in	9.91 mm	0.12 in	3.05 mm	19.3 mm	0.76 "	84.07 mm	3.31 in
Panduit Corp LCCF6-14AF-L									Barrel Crimp					0.25 Stud	Two Stud Holes			Rectangular Tongue	6 AWG	Free Hanging (In-Line) Right Angle	Blue	Non-Insulated			0.08 "	2.03 mm	12.19 mm	0.48 "
Panduit Corp LCCF4/0-38-X	0.91 in	23.11 mm	Electro-Tin			Copper			Barrel Crimp			1.17 "	29.72 mm	0.375 Stud	Two Stud Holes	122.94 mm	4.84 "	Rectangular Tongue	4 aught AWG	Free Hanging (In-Line)	Yellow	Non-Insulated	0.63 in	16 mm	0.14 in	3.56 mm					10.41 mm	0.41 "
Panduit Corp LCCF1/0-38D-X	0.67 "	17.02 mm	Electro-Tin			Copper			Barrel Crimp					0.375 Stud	Two Stud Holes	97.03 mm	3.82 "	Rectangular Tongue	44 AWG	Free Hanging (In-Line)	Black	Non-Insulated	0.45 in	11.43 mm			21.59 mm	0.85 in			10.41 mm	0.41 "	3.3 mm	0.13 in

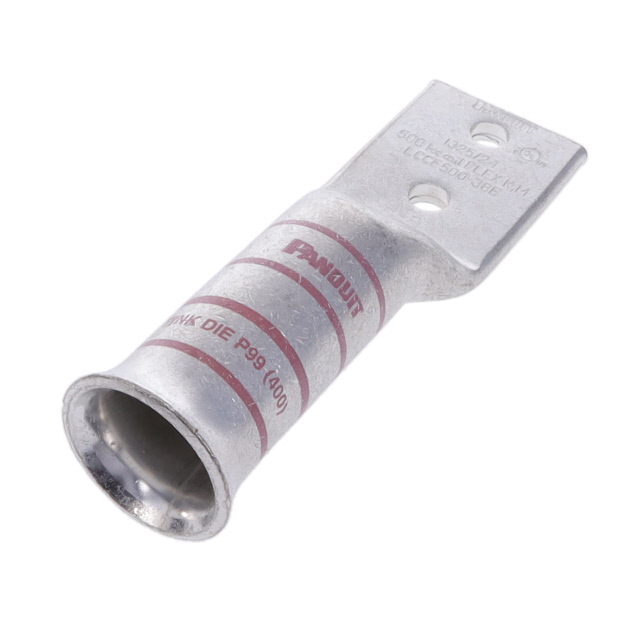

Panduit Corp LCCF500-38E-6

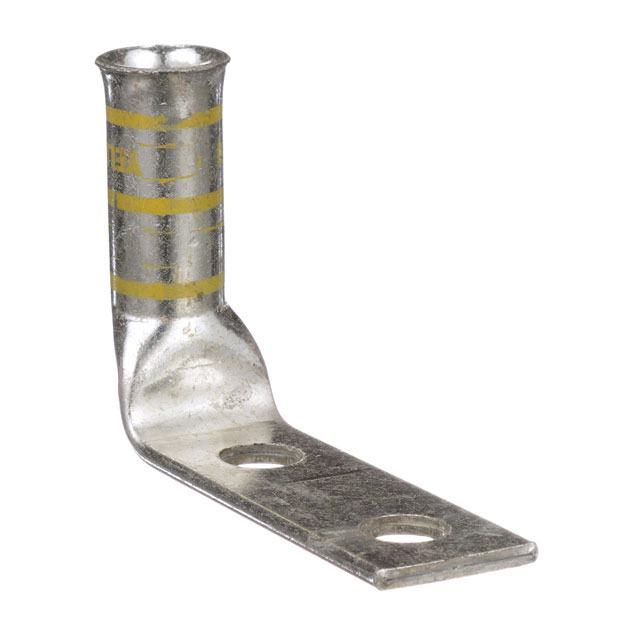

Panduit Corp LCCF4/0-12F-X	0.91 in	23.11 mm	Electro-Tin			Copper		0.53 in	Barrel Crimp			1.17 "	29.72 mm	0.5 Stud	Two Stud Holes			Rectangular Tongue	4 aught AWG	Free Hanging (In-Line) Right Angle	Yellow	Non-Insulated	0.63 in	16 mm	0.14 in	3.56 mm									13.46 mm
Panduit Corp LCCF750-12H-3	1.8 in	45.72 mm	Electro-Tin			Copper		0.53 in	Barrel Crimp					0.5 Stud	Two Stud Holes			Rectangular Tongue	750 MCM	Free Hanging (In-Line)		Non-Insulated	1.17 in	29.72 mm	0.32 "	8.13 mm	55.12 mm	2.17 "							13.46 mm	750 MCM
