M2013TJ Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER SPDT 6A 125V
| Part | Electrical Life | Mechanical Life | Actuator Marking | Actuator Type | Mounting Type | Voltage Rating - AC | Approval Agency | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Voltage Rating - DC | Current Rating (Amps) | Circuit | Features | Termination Style | Illumination Type, Color | Illumination Voltage (Nominal) | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 50000 Cycles | Varies by Cap | Actuator Arm Cap Required | Panel Mount Snap-In | 125 V | CSA UL | 15.9 mm | 12.5 mm | 85 °C | -30 ░C | On-Off-On | 30 V | 3 A 6 A | SPDT | Epoxy Sealed Terminals | Solder Lug | |||
 NKK Switches | 50000 Cycles | 50000 Cycles | No Marking | Concave (Standard V) - Illuminated | Panel Mount Snap-In | 28 V | CSA UL | 18.4 mm | 15.9 mm | 85 °C | -30 ░C | On-Off-On | 28 V | 0.4 VA | SPDT | Epoxy Sealed Terminals | Solder Lug | LED Red | 2 VDC | Black |

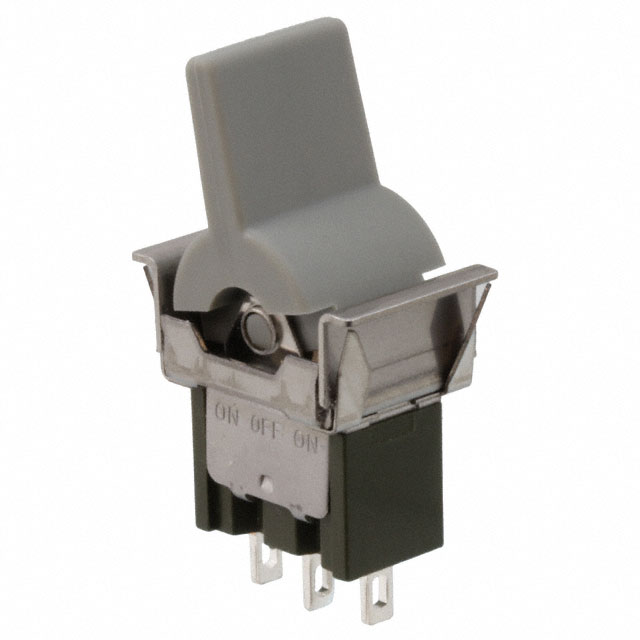

 NKK Switches | 25000 Steps | 50000 Cycles | No Marking | Paddle | Panel Mount Snap-In | 125 V | CSA UL | 15.9 mm | 12.5 mm | 85 °C | -30 ░C | On-Off-On | 30 V | 3 A 6 A | SPDT | Epoxy Sealed Terminals | Solder Lug | |||
 NKK Switches | 25000 Steps | 50000 Cycles | No Marking | Concave | Panel Mount Snap-In | 125 V | CSA UL | 15.9 mm | 12.5 mm | 85 °C | -30 ░C | On-Off-On | 30 V | 3 A 6 A | SPDT | Epoxy Sealed Terminals | Solder Lug | Green | ||
 NKK Switches | 25000 Steps | 50000 Cycles | No Marking | Paddle | Panel Mount Snap-In | 125 V | CSA UL | 15.9 mm | 12.5 mm | 85 °C | -30 ░C | On-Off-On | 30 V | 3 A 6 A | SPDT | Epoxy Sealed Terminals | Solder Lug | Black | ||
NKK Switches | 50000 Cycles | 50000 Cycles | Varies by Cap | Actuator Arm Cap Required | Panel Mount Snap-In | 28 V | CSA UL | 15.9 mm | 12.5 mm | 85 °C | -30 ░C | On-Off-On | 28 V | 0.4 VA | SPDT | Epoxy Sealed Terminals | Solder Lug | |||
NKK Switches | 25000 Steps | 50000 Cycles | No Marking | Concave (Standard V) - Illuminated | Panel Mount Snap-In | 125 V | CSA UL | 15.9 mm | 12.5 mm | 85 °C | -30 ░C | On-Off-On | 30 V | 3 A 6 A | SPDT | Epoxy Sealed Terminals | Solder Lug | LED Red | 2.8 VDC | Black |
NKK Switches | 25000 Steps | 50000 Cycles | No Marking | Concave (Standard V) - Illuminated | Panel Mount Snap-In | 125 V | CSA UL | 18.4 mm | 15.9 mm | 85 °C | -30 ░C | On-Off-On | 30 V | 3 A 6 A | SPDT | Epoxy Sealed Terminals | Solder Lug | Green/Green LED | 2.25 VDC | Black |

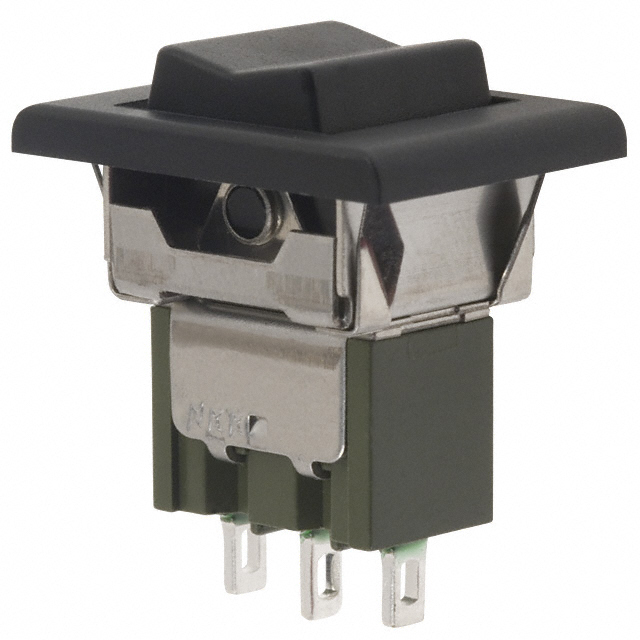

NKK Switches | 50000 Cycles | 50000 Cycles | No Marking | Concave | Panel Mount Snap-In | 28 V | CSA UL | 15.9 mm | 12.5 mm | 85 °C | -30 ░C | On-Off-On | 28 V | 0.4 VA | SPDT | Epoxy Sealed Terminals | Solder Lug | Black | ||
NKK Switches | 25000 Steps | 50000 Cycles | No Marking | Concave (Standard V) - Illuminated | Panel Mount Snap-In | 125 V | CSA UL | 18.4 mm | 15.9 mm | 85 °C | -30 ░C | On-Off-On | 30 V | 3 A 6 A | SPDT | Epoxy Sealed Terminals | Quick Connect - 0.062" (1.5mm) | Green/Red LED | 2 VDC 2.25 VDC | Black |
