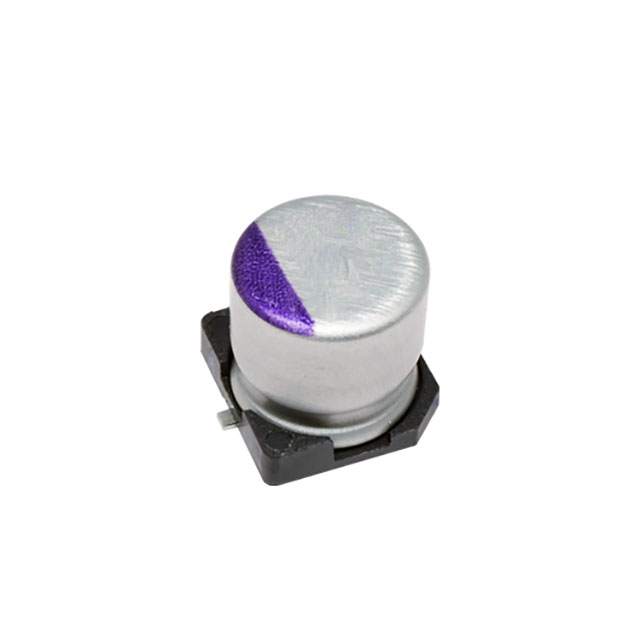

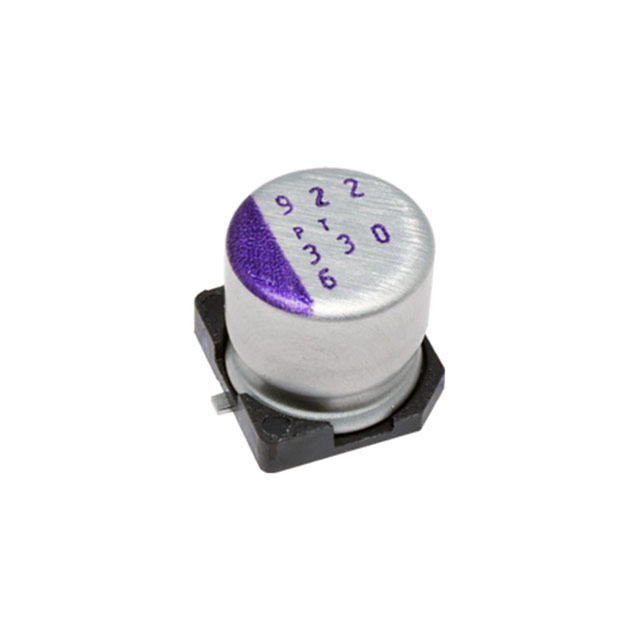

16SVPT Series

Catalog

CAP ALUMINUM POLYMER 100UF 16VDC 20%( 6.3 X 6.4MM) SMD 0.024 OHM 2.49A 20000H 105°C T/R

Part	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Type	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Applications	Mounting Type	Capacitance	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Height - Seated (Max) [Max]
Panasonic Electronic Components 16SVPT100M	20 %	-55 C	105 ░C	Polymer	2.49 A	124.5 mA	Radial Can - SMD	6.5 mm	0.256 in	16 V	20000 Hrs	0.248 "	6.3 mm	24 mOhms	General Purpose	Surface Mount	100 µF	0.26 in	6.6 mm	6.6 mm	0.26 in
Panasonic Electronic Components 16SVPT1000M	20 %	-55 C	105 ░C	Polymer	5.4 A	270 mA	Radial Can - SMD		12.7 mm	16 V	20000 Hrs	0.394 in	10 mm	12 mOhms	General Purpose	Surface Mount	1000 µF	0.406 in	10.3 mm	10.3 mm	0.406 "	0.5 in
Panasonic Electronic Components 16SVPT270M	20 %	-55 C	105 ░C	Polymer	3.3 A	165 mA	Radial Can - SMD		7 mm	16 V	20000 Hrs	0.315 in	8 mm	22 mOhms	General Purpose	Surface Mount	270 µF	0.327 in	8.3 mm	8.3 mm	0.327 in	0.276 in
