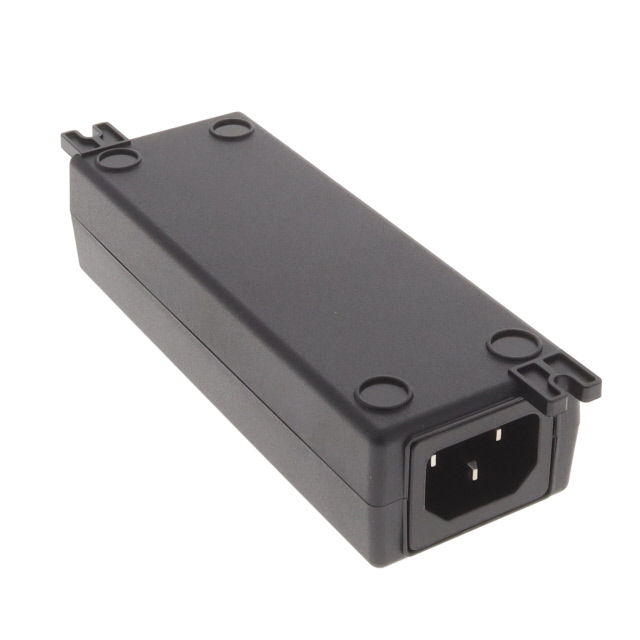

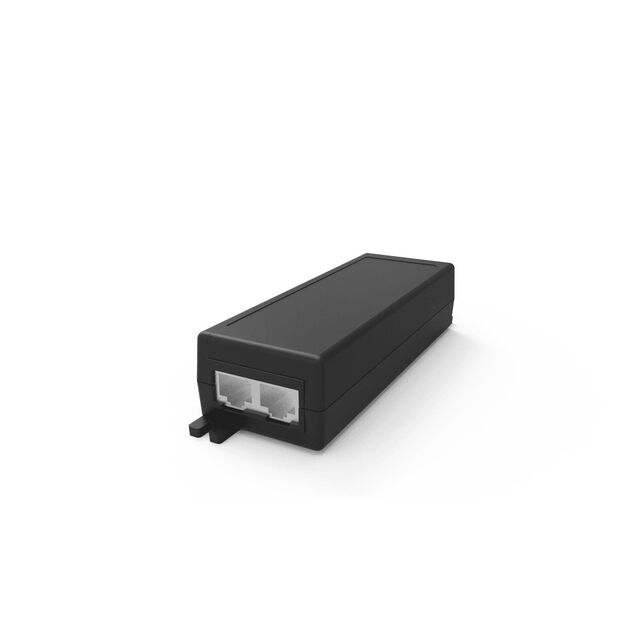

POEA30 Series
Manufacturer: Phihong USA
Beta
⌘K
PASSIVE POE ADAPTER C14 10 GIGAB
| Part | Output Connector | Input Connector | Voltage - Output | Number of Ports | Features | Current - Output | Approval Agency | Power (Watts) - Per Port | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Standard Number | Mounting Type | Type | Efficiency | Voltage - Input [Max] | Voltage - Input [Min] | Compliance | Note | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phihong USA | RJ45 (Data Power) | IEC 320-C14 (Power) RJ45 (Data) | 56 V | 1 | OCP OVP SCP | 536 mA | cULus IEC | 30 W | 30 mm | 45.5 mm | 1.18 in | 4.96 in | 126 mm | 1.79 in | 40 °C | -10 °C | 60950-1 62368-1 | Desktop | Passive Injector | 85 % | 264 VAC | 90 VAC | |||
 Phihong USA | RJ45 (Data Power) | IEC 320-C14 (Power) RJ45 (Data) | 56 V | 1 | OCP OVP SCP | 536 mA | AS/NZS BSMI CCC cULus IEC | 30 W | 30 mm | 45.5 mm | 1.18 in | 4.96 in | 126 mm | 1.79 in | 40 °C | -10 °C | 60950-1 62368-1 CNS13438 CNS14336-1 CNS15663 GB/T9254-2008 GB17625.1-2012 GB4943.1-2011 | Desktop | Passive Injector | 85 % | 264 VAC | 90 VAC | IEEE802.3at | ||
 Phihong USA | RJ45 (Data Power) | IEC 320-C14 (Power) RJ45 (Data) | 56 V | 1 | OCP OVP SCP | 536 mA | AS/NZS BSMI CCC cULus IEC | 30 W | 30 mm | 45.5 mm | 1.18 in | 4.96 in | 126 mm | 1.79 in | 40 °C | -10 °C | 60950-1 62368-1 CNS13438 CNS14336-1 CNS15663 GB/T9254-2008 GB17625.1-2012 GB4943.1-2011 | Desktop | Passive Injector | 85 % | 264 VAC | 90 VAC | IEEE802.3at | ||
 Phihong USA | RJ45 (Data Power) | IEC 320-C14 (Power) RJ45 (Data) | 56 V | 1 | OCP OVP SCP | 536 mA | cULus IEC | 30 W | 30 mm | 45.5 mm | 1.18 in | 4.96 in | 126 mm | 1.79 in | 40 °C | -10 °C | 60950-1 62368-1 | Desktop | Passive Injector | 85 % | 264 VAC | 90 VAC | |||
 Phihong USA | RJ45 (Data Power) | IEC 320-C14 (Power) RJ45 (Data) | 56 V | 1 | OCP OVP SCP | 536 mA | AS/NZS BSMI CCC cULus IEC | 30 W | 30 mm | 45.5 mm | 1.18 in | 4.96 in | 126 mm | 1.79 in | 40 °C | -10 °C | 60950-1 62368-1 CNS13438 CNS14336-1 CNS15663 GB/T9254-2008 GB17625.1-2012 GB4943.1-2011 | Desktop | Passive Injector | 264 VAC | 90 VAC | IEEE802.3at | AC Power Cord Sold Separately | Level VI | |
 Phihong USA | RJ45 (Data Power) | IEC 320-C14 (Power) RJ45 (Data) | 56 V | 1 | OCP OVP SCP | 536 mA | cULus IEC | 30 W | 30 mm | 45.5 mm | 1.18 in | 4.96 in | 126 mm | 1.79 in | 40 °C | -10 °C | 60950-1 62368-1 | Desktop | Passive Injector | 85 % | 264 VAC | 90 VAC | |||
 Phihong USA | RJ45 (Data Power) | IEC 320-C14 (Power) RJ45 (Data) | 56 V | 1 | OCP OVP SCP | 536 mA | cULus IEC | 30 W | 30 mm | 45.5 mm | 1.18 in | 4.96 in | 126 mm | 1.79 in | 40 °C | -10 °C | 60950-1 62368-1 | Desktop | Passive Injector | 85 % | 264 VAC | 90 VAC | |||
 Phihong USA | RJ45 (Data Power) | IEC 320-C14 (Power) RJ45 (Data) | 56 V | 1 | OCP OVP SCP | 536 mA | cULus IEC | 30 W | 30 mm | 45.5 mm | 1.18 in | 4.96 in | 126 mm | 1.79 in | 40 °C | -10 °C | 60950-1 62368-1 | Desktop | Passive Injector | 85 % | 264 VAC | 90 VAC | IEEE802.3at |
