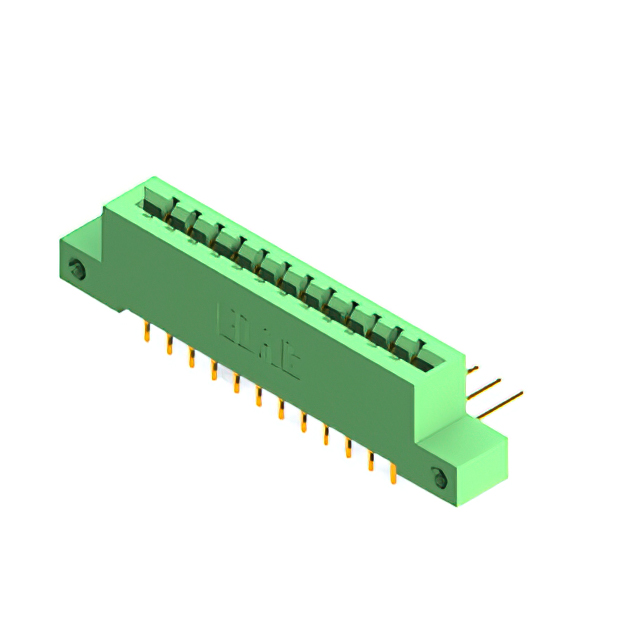

837-024 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE DUAL FMALE 24POS 0.156
...
| Part | Gender | Contact Finish | Contact Type | Mounting Type | Card Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Pitch [x] | Pitch [x] | Number of Rows | Read Out | Color | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Termination Rows | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Female | Gold | Cantilever | Through Hole | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 24 | 0.156 in | 3.96 mm | 2 | Dual | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 2 | Copper Alloy | 125 °C | -40 °C | Wire Wrap | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | ||
 EDAC Inc. | Female | Gold | Cantilever | Through Hole | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 24 | 0.156 in | 3.96 mm | 2 | Dual | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 2 | Copper Alloy | 125 °C | -40 °C | Solder | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | ||
 EDAC Inc. | Female | Gold | Cantilever | Through Hole | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 24 | 0.156 in | 3.96 mm | 2 | Dual | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 2 | Copper Alloy | 125 °C | -40 °C | Solder | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | ||
 EDAC Inc. | Female | Gold | Cantilever | Through Hole Right Angle | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 24 | 0.156 in | 3.96 mm | 2 | Dual | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 2 | Copper Alloy | 125 °C | -40 °C | Solder | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | ||
 EDAC Inc. | Female | Gold | Cantilever | Through Hole | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 24 | 0.156 in | 3.96 mm | 2 | Dual | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 2 | Copper Alloy | 125 °C | -40 °C | Solder | M3 Threaded Insert Top Mount Opening | ||||
 EDAC Inc. | Female | Gold | Cantilever | Through Hole | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 24 | 0.156 in | 3.96 mm | 1 | Single | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 1 | Copper Alloy | 125 °C | -40 °C | Wire Wrap | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | ||
 EDAC Inc. | Female | Gold | Cantilever | Through Hole | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 24 | 0.156 in | 3.96 mm | 2 | Dual | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 2 | Copper Alloy | 125 °C | -40 °C | Solder | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | ||
 EDAC Inc. | Female | Gold | Cantilever | Through Hole | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 24 | 0.156 in | 3.96 mm | 1 | Single | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 1 | Copper Alloy | 125 °C | -40 °C | Solder Eyelet(s) | |||||
 EDAC Inc. | Female | Gold | Cantilever | Through Hole | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 24 | 0.156 in | 3.96 mm | 1 | Single | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 1 | Copper Alloy | 125 °C | -40 °C | Solder | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | ||
 EDAC Inc. | Female | Gold | Cantilever | Through Hole | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 24 | 0.156 in | 3.96 mm | 1 | Single | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 1 | Copper Alloy | 125 °C | -40 °C | Solder | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in |
