HLW15S Series

Catalog

CONN FFC FPC VERT 15POS 1MM PCB

Part	Housing Color	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Flat Flex Type	Height Above Board [z]	Height Above Board [z]	Voltage Rating	Material Flammability Rating	Contact Finish	Termination	Contact Material	Number of Positions	FFC, FCB Thickness	Housing Material	Mounting Type	Connector/Contact Type	Pitch	Pitch
Amphenol ICC (FCI) HLW15S-2A7LF	Black	30	-55 C	85 °C	FFC FPC	5.9 mm	0.232 "	100 V	UL94 V-0	Tin	Solder	Phosphor Bronze	15	0.33 mm	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	Contacts Vertical - 1 Sided	1 mm	0.039 in

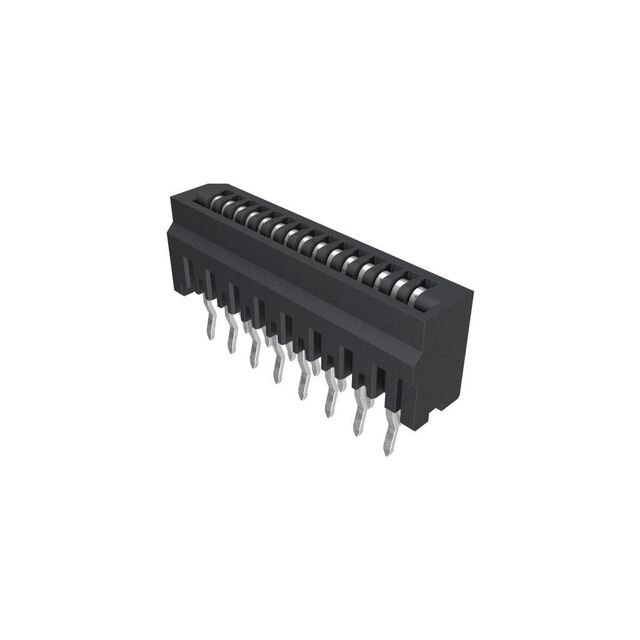

Amphenol ICC (FCI) HLW15S-2C7LF	Black	30	-55 C	85 °C	FFC FPC	5.9 mm	0.232 "	100 V	UL94 V-0	Tin	Kinked Pin	Phosphor Bronze	15	0.33 mm	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	Contacts Vertical - 1 Sided	1 mm	0.039 in
