GR024D Series
Manufacturer: Macromatic Industrial Controls
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

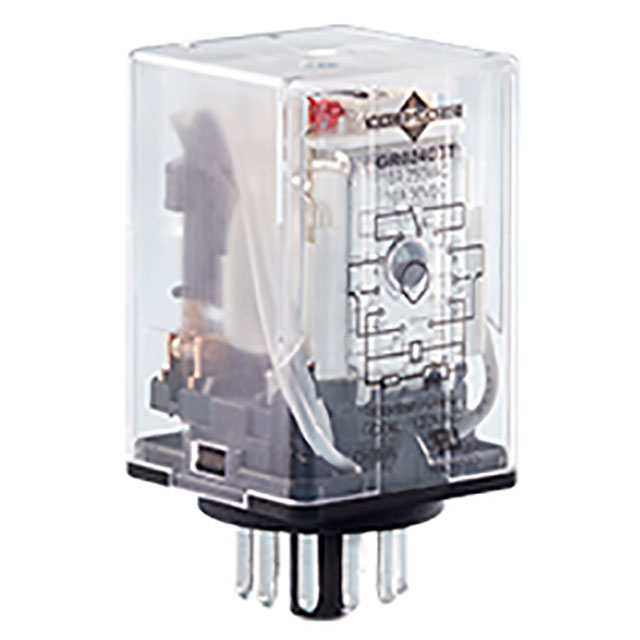

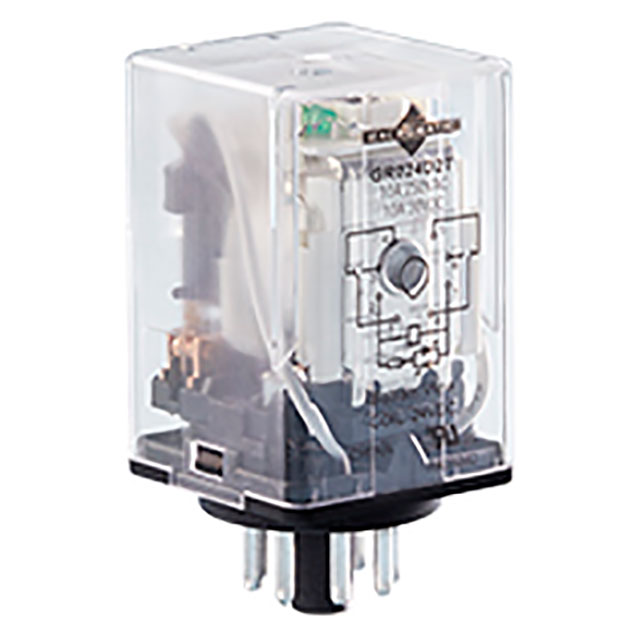

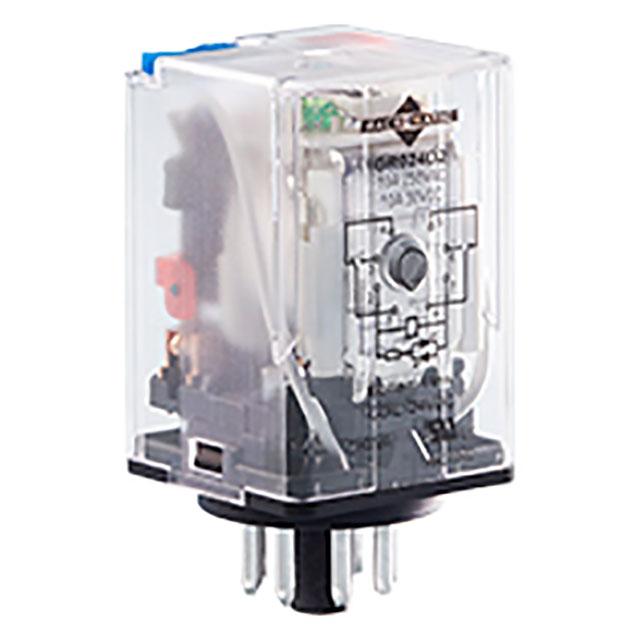

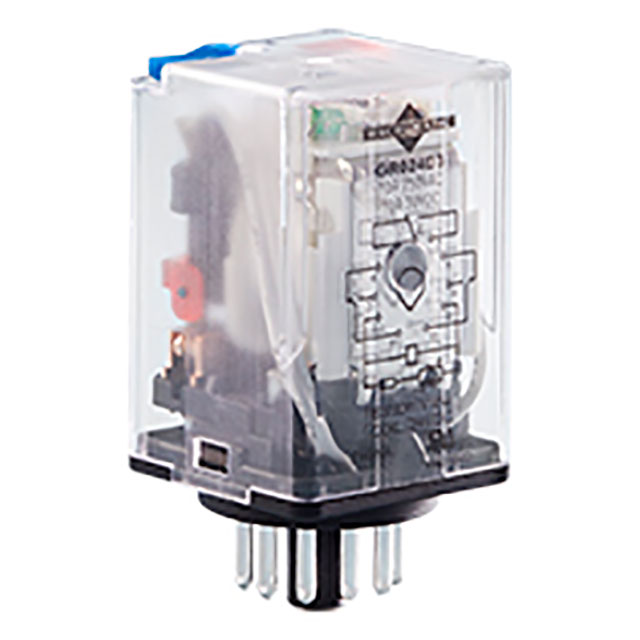

RELAY GEN PURPOSE DPDT 10A 24V
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Contact Form | Mounting Type | Coil Voltage | Features | Coil Type | Switching Voltage AC (Max) | Switching Voltage DC (Max) | Relay Type | Contact Rating (Current) | Pin Count | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Macromatic Industrial Controls | -40 °C | 55 °C | 2 2 Form C C DPDT Form | Socketable | 24 VDC | Lighted Indicator Test Button | Non Latching | 250 VAC | 30 VDC | General Purpose | 10 A | 8 | Plug In |
 Macromatic Industrial Controls | -40 °C | 55 °C | 3 Form C PDT | Socketable | 24 VDC | Lighted Indicator | Non Latching | 250 VAC | 30 VDC | General Purpose | 10 A | 3 pins 11 pins | Plug In |
 Macromatic Industrial Controls | -40 °C | 55 °C | 3 Form C PDT | Socketable | 24 VDC | Lighted Indicator Test Button | Non Latching | 250 VAC | 30 VDC | General Purpose | 10 A | 3 pins 11 pins | Plug In |
 Macromatic Industrial Controls | -40 °C | 55 °C | 2 2 Form C C DPDT Form | Socketable | 24 VDC | Lighted Indicator | Non Latching | 250 VAC | 30 VDC | General Purpose | 10 A | 8 | Plug In |
