03S109 Series
Manufacturer: Rosenberger
Beta
⌘K

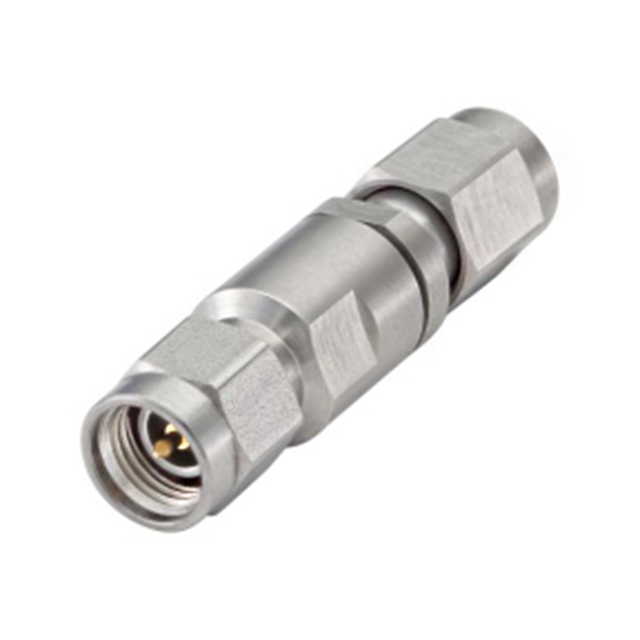

PRECISION 3.5 ADAPTER
| Part | Insertion Loss | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Mating Cycles | Body Material | Dielectric Material | Mounting Type | Adapter Type | Conversion Type | Convert To (Adapter End) [custom] | Center Contact Plating | Frequency - Max [Max] | Center Gender | Impedance | Style | Convert From (Adapter End) | Adapter Series [Max] | Adapter Series [Min] | Convert To (Adapter End) | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 0.26 dB | 85 °C | -40 C | Beryllium Copper | 500 | Stainless Steel | Polystyrene (PS) Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | Plug to Plug | Between Series | 2.4 mm | Gold | 26.5 GHz | Male to Male | 50 Ohms | Straight | 3.5mm Plug Male Pin | RPC-2.40 | RPC-3.50 | ||
 Rosenberger | 0.26 dB | 85 °C | -40 C | Beryllium Copper | 500 | Stainless Steel | Polystyrene (PS) Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | Plug to Jack | Between Series | Gold | 26.5 GHz | 50 Ohms | Straight | 3.5mm Plug Male Pin | RPC-2.40 | RPC-3.50 | 2.4 mm | (APC-2.4 OS-50) Jack Female Socket |
