86118CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

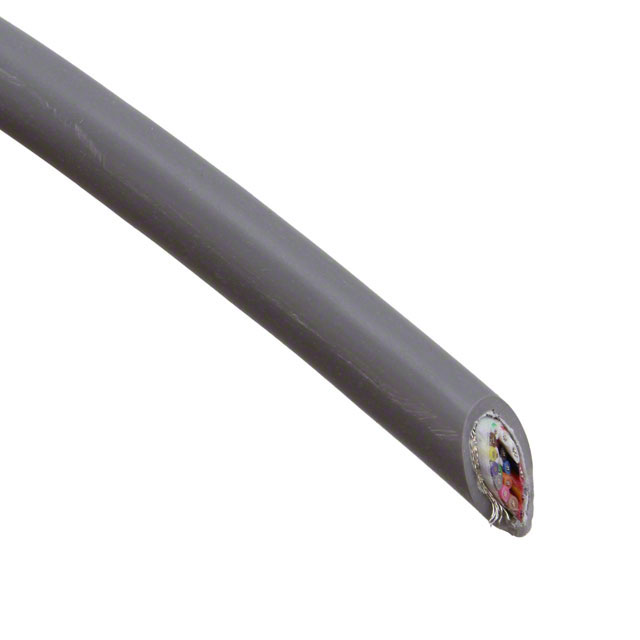

CABLE 18COND 26AWG SHLD
| Part | Shield Coverage | Shield Material | Jacket Color | Wire Gauge | Conductor Material | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Shield Type | Voltage | Number of Conductors | Ratings | Conductor Strand [x] | Conductor Strand [x] | Features | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 90 % 100 % | Aluminum Copper Tinned | Slate | 26 AWG | Copper Tinned | 152.4 m | 500 ft | 0.302 in | 7.67 mm | Poly-Vinyl Chloride (PVC) | 1.016 mm | 0.04 in | Multi-Conductor | Braid Foil | 300 VDC | 18 | ISO 10993 UL Style 2661 | 34 AWG | 7 | Biological Compatibility Drain Wire | Poly-Vinyl Chloride (PVC) |
