5502FE Series
Manufacturer: Belden Inc.
Beta
⌘K

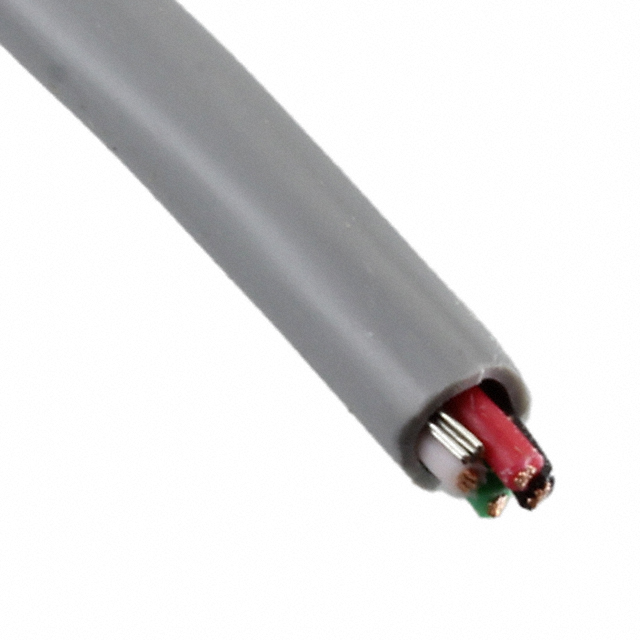

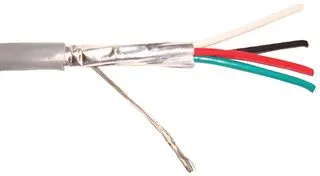

CABLE 4COND 22AWG GRAY SHLD
| Part | Shield Material | Shield Coverage | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Features | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Length | Length | Conductor Insulation | Jacket (Insulation) Material | Wire Gauge | Shield Type | Ratings | Cable Type | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Alarm Security Sound | 30 AWG | 7 | 0.017 " | 0.432 mm | Gray | Drain Wire Rip Cord | Copper Bare | 3.68 mm | 0.145 " | 4 | 152.4 m | 500 ft | Polypropylene (PP) | Poly-Vinyl Chloride (PVC) Riser | 22 AWG | Foil | UL Style CMR | Multi-Conductor | |
 Belden Inc. | Aluminum | 100 % | Security Sound | 30 AWG | 7 | 0.017 " | 0.432 mm | Gray | Drain Wire Rip Cord | Copper Bare | 3.68 mm | 0.145 " | 4 | 304.8 m | 1000 ft | Polypropylene (PP) | Poly-Vinyl Chloride (PVC) Riser | 22 AWG | Foil | UL Style CMR | Multi-Conductor | 300 VDC |
