RBR1VWM30ATF Series

Low VF, 30V, 1A, Schottky Barrier Diode for Automotive

Catalog

Low VF, 30V, 1A, Schottky Barrier Diode for Automotive

Part	Speed	Qualification	Operating Temperature - Junction	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Package / Case	Grade	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Supplier Device Package

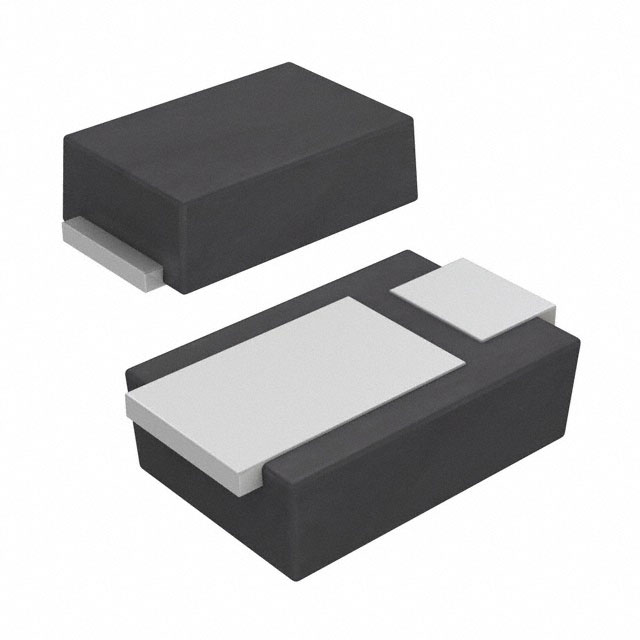

Rohm Semiconductor RBR1VWM60ATFTR	200 mA 500 ns	AEC-Q101	150 ¯C	530 mV	75 µA	1 A	2-SMD Flat Leads	Automotive	Surface Mount	60 V	Schottky	PMDE
Rohm Semiconductor RBR1VWM30ATFTR	200 mA 500 ns	AEC-Q101	150 ¯C	480 mV	50 çA	1 A	2-SMD Flat Leads	Automotive	Surface Mount	30 V	Schottky	PMDE
Rohm Semiconductor RBR1VWM60ATR	200 mA 500 ns	AEC-Q101	150 ¯C	530 mV	75 µA	1 A	2-SMD Flat Leads	Automotive	Surface Mount	60 V	Schottky	PMDE

Low VF, 30V, 1A, Schottky Barrier Diode for Automotive

• High reliability, Small power mold type, Low VF

RBR1VWM30ATF is low VFhigh reliability schottky barrier diode, suitable for general rectification.
