F2976 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K
RF SWITCH, 10GHZ, -40 TO 105DEG C ROHS COMPLIANT: YES
| Part | RF Type | Operating Temperature [Min] | Operating Temperature [Max] | Isolation | Insertion Loss | Mounting Type | Topology | P1dB | Circuit | Voltage - Supply [Max] | Voltage - Supply [Min] | Impedance | Test Frequency | Package / Case | IIP3 | Frequency Range [Min] | Frequency Range [Max] | Supplier Device Package | Type | Supplied Contents | Frequency [Max] | Frequency [Min] | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | General Purpose | -40 °C | 105 ░C | 18 dB | 0.8 dB | Surface Mount | Reflective | 40 dBm | SPDT | 5.25 V | 2.5 V | 50 Ohms | 10 GHz | 12-UFQFN Exposed Pad | 77 dBm | 5 MHz | 10 GHz | 12-VFQFPN (2x2) | |||||

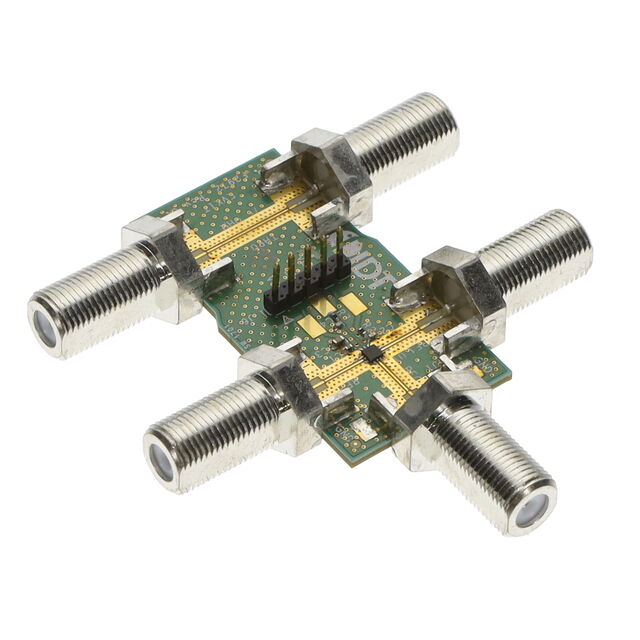

 Renesas Electronics Corporation | Switch SPDT | Board(s) | 10 GHz | 5 MHz | F2976 |
