HS2P3F Series
Manufacturer: Switchcraft Inc.
Beta
⌘K

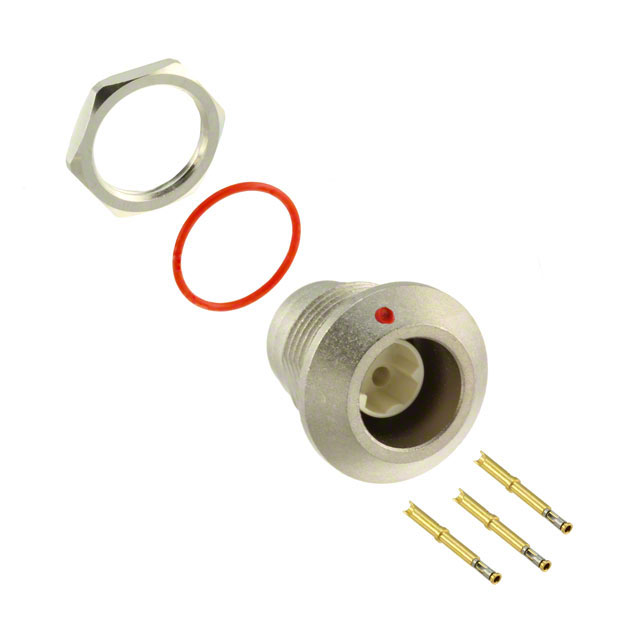

CONN RCPT FMALE 3POS GOLD CRIMP
| Part | Fastening Type | Insert Material | Mounting Feature | Shell Finish | Contact Material | Color | Termination | Applications | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Primary Material | Shell Material | Voltage Rating | Orientation | Shielding | Ingress Protection | Contact Finish - Mating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | Push-Pull | Liquid Crystal Polymer (LCP) | Bulkhead - Rear Side Nut | Electroless Nickel | Copper Alloy | Silver | Crimp Solder Cup | Agriculture Audio General Medical Testing Equipment & Measurement | UL94 HF-1 | 135 °C | -40 °C | Receptacle Female Sockets | Metal | Copper Alloy | 125 VAC | Keyed | Shielded | IP66 IP67 IP68 | Gold | |
 Switchcraft Inc. | Push-Pull | Liquid Crystal Polymer (LCP) | Bulkhead - Front Side Nut | Electroless Nickel | Copper Alloy | Silver | Solder | Agriculture Audio General Medical Testing Equipment & Measurement | 135 °C | -40 °C | Receptacle Female Sockets | Metal | Copper Alloy | 125 VAC | Keyed | Shielded | IP66 IP67 IP68 | Gold | Panel Mount Through Hole | |
 Switchcraft Inc. | Push-Pull | Liquid Crystal Polymer (LCP) | Bulkhead - Front Side Nut | Electroless Nickel | Copper Alloy | Silver | Solder | Agriculture Audio General Medical Testing Equipment & Measurement | 135 °C | -40 °C | Receptacle Female Sockets | Metal | Copper Alloy | 125 VAC | Keyed | Shielded | IP66 IP67 IP68 | Gold | Panel Mount Through Hole |
