DME-05 Series
Manufacturer: Adam Tech
Beta
⌘K

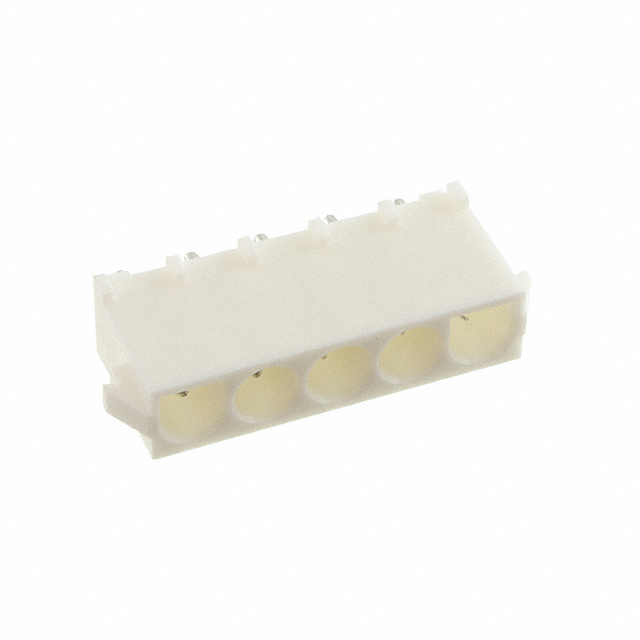

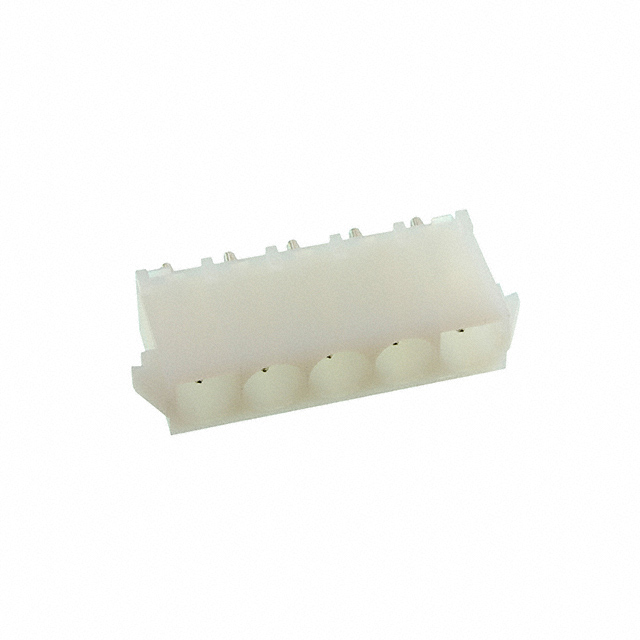

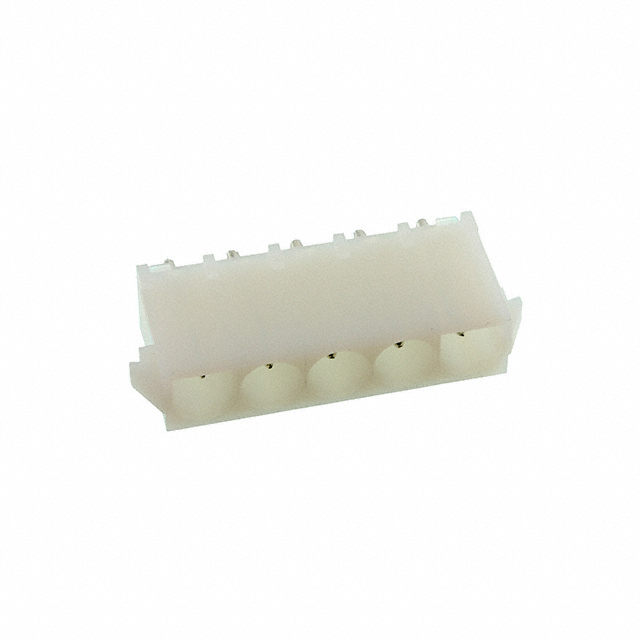

6.35MM PCB HEADER, 5 POSITION
| Part | Insulation Material | Applications | Contact Shape | Contact Material | Insulation Height | Insulation Height | Mounting Type | Connector Type | Termination | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Number of Rows | Number of Positions | Contact Length - Post | Contact Length - Post | Current Rating (Amps) | Features | Contact Finish - Post | Voltage Rating | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Insulation Color | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Nylon 6/6 Polyamide (PA66) | General Purpose | Circular | Phosphor Bronze | 0.55 in | 13.97 mm | Through Hole | Receptacle | Solder | UL94 V-2 | 6.35 mm | 0.25 in | 1 | 5 | 4.5 mm | 0.177 in | 11 A | Board Guide | Tin | 600 VAC | Locking Ramp | 85 °C | -25 °C | Female Socket | Natural | All |
 Adam Tech | Nylon 6/6 Polyamide (PA66) | General Purpose | Circular | Brass | 0.55 in | 13.97 mm | Through Hole | Receptacle | Solder | UL94 V-0 | 6.35 mm | 0.25 in | 1 | 5 | 4.5 mm | 0.177 in | 11 A | Tin | 600 VAC | Locking Ramp | 85 °C | -25 °C | Female Socket | Natural | All |
