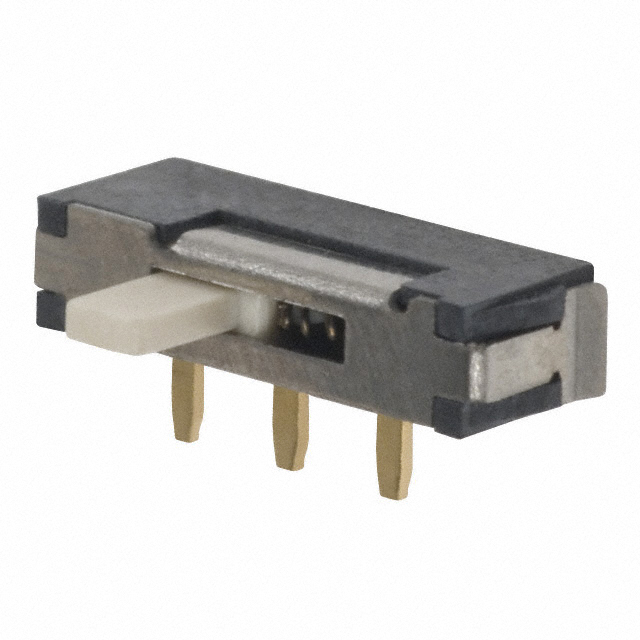

CSS-1211 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SLIDE SWITCH, SPDT, 0.1A, 12VDC, TH ROHS COMPLIANT: YES
| Part | Electrical Life | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Material | Contact Timing | Operating Force [Max] | Operating Force [Min] | Switch Travel | Voltage Rating - DC | Switch Function | Current Rating (Amps) | Termination Style | Contact Finish | Contact Material | Circuit | Actuator Length [x] | Actuator Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 10000 Cycles | -20 C | 70 °C | Liquid Crystal Polymer (LCP) | Non-Shorting | 357 gf | 102 gf | 2 mm | 12 V | On-Mom | 100 mA | PC Pin | Gold | Copper Alloy | SPDT | 2 mm | Standard | Through Hole Right Angle |
 Nidec Components Corporation | 10000 Cycles | -20 C | 70 °C | Liquid Crystal Polymer (LCP) | Non-Shorting | 357 gf | 102 gf | 2 mm | 12 V | On-Mom | 100 mA | Gull Wing | Gold | Copper Alloy | SPDT | 2 mm | Standard | Surface Mount Right Angle |
