MAX40056 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC CURRENT SENSE 1 CIRCUIT 8UMAX

Part	Amplifier Type	Voltage - Input Offset	Slew Rate	Voltage - Supply Span (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [custom]	Package / Case	Grade	Mounting Type	Output Type	Number of Circuits	Current - Supply	Supplier Device Package	Voltage - Supply Span (Max) [Max]	Current - Input Bias	-3db Bandwidth	Current - Output / Channel	Utilized IC / Part	Board Type	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Channels per IC	Supplied Contents	Current - Supply (Main IC)
Analog Devices Inc./Maxim Integrated MAX40056TAUA+T	Current Sense	5 çV	1.5 V/µs	2.7 V	125 °C	-40 °C	8-MSOP 8-TSSOP	0.118 in	3 mm	Automotive	Surface Mount	Push-Pull Rail-to-Rail	1	6 mA	8-uMAX/uSOP	5.5 V	30 µA	300 kHz	20 mA
Analog Devices Inc./Maxim Integrated MAX40056FAUA+T	Current Sense	20 çV	1.5 V/µs	2.7 V	125 °C	-40 °C	8-MSOP 8-TSSOP	0.118 in	3 mm		Surface Mount	Push-Pull Rail-to-Rail	1	6 mA	8-uMAX/uSOP	5.5 V	30 µA	300 kHz	20 mA

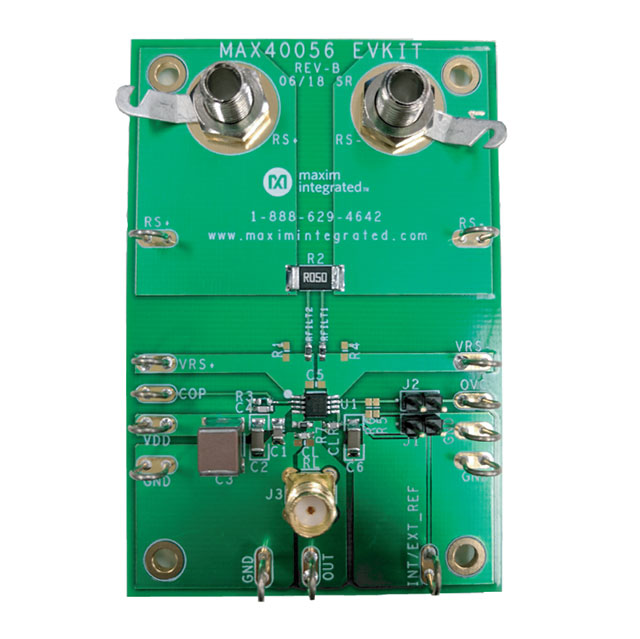

Analog Devices Inc./Maxim Integrated MAX40056EVKIT#	Current Sense		1.5 V/µs									Single-Ended						300 kHz	20 mA	MAX40056	Fully Populated	5.5 V	2.7 V	1 - Single	Board(s)	6 mA
Analog Devices Inc./Maxim Integrated MAX40056FAUA/V+T	Current Sense	20 çV	1.5 V/µs	2.7 V	125 °C	-40 °C	8-MSOP 8-TSSOP	0.118 in	3 mm		Surface Mount	Push-Pull Rail-to-Rail	1	6 mA	8-uMAX/uSOP	5.5 V	30 µA	300 kHz	20 mA
Analog Devices Inc./Maxim Integrated MAX40056UAUA+T	Current Sense	5 çV	1.5 V/µs	2.7 V	125 °C	-40 °C	8-MSOP 8-TSSOP	0.118 in	3 mm	Automotive	Surface Mount	Push-Pull Rail-to-Rail	1	6 mA	8-uMAX/uSOP	5.5 V	30 µA	300 kHz	20 mA
Analog Devices Inc./Maxim Integrated MAX40056UAUA+	Current Sense	5 çV	1.5 V/µs	2.7 V	125 °C	-40 °C	8-MSOP 8-TSSOP	0.118 in	3 mm	Automotive	Surface Mount	Push-Pull Rail-to-Rail	1	6 mA	8-uMAX/uSOP	5.5 V	30 µA	300 kHz	20 mA
Analog Devices Inc./Maxim Integrated MAX40056UAUA/V+T	Current Sense	20 çV	1.5 V/µs	2.7 V	125 °C	-40 °C	8-MSOP 8-TSSOP	0.118 in	3 mm	Automotive	Surface Mount	Push-Pull Rail-to-Rail	1	6 mA	8-uMAX/uSOP	5.5 V	30 µA	300 kHz	20 mA
Analog Devices Inc./Maxim Integrated MAX40056UAUA/V+	Current Sense	5 çV	1.5 V/µs	2.7 V	125 °C	-40 °C	8-MSOP 8-TSSOP	0.118 in	3 mm		Surface Mount	Push-Pull Rail-to-Rail	1	6 mA	8-uMAX/uSOP	5.5 V	20 çA	300 kHz	20 mA
Analog Devices Inc./Maxim Integrated MAX40056FAUA/V+	Current Sense	20 çV	1.5 V/µs	2.7 V	125 °C	-40 °C	8-MSOP 8-TSSOP	0.118 in	3 mm		Surface Mount	Push-Pull Rail-to-Rail	1	6 mA	8-uMAX/uSOP	5.5 V	30 µA	300 kHz	20 mA
