MAX11040 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

KIT EVALUATION FOR MAX11040

Part	Sampling Rate (Per Second)	Number of Bits	Number of A/D Converters	Data Interface	Input Range	Utilized IC / Part	Supplied Contents	Reference Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Architecture	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Configuration	Ratio - S/H:ADC	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Package / Case [custom]	Package / Case [custom]	Package / Case	Supplier Device Package	Number of Inputs	Mounting Type	Input Type
Analog Devices Inc./Maxim Integrated MAX11040DBEVKIT+	64k	24	4	DSP MICROWIRE™ QSPI™ Serial SPI™	2.2 V	MAX11040	Board(s)
Analog Devices Inc./Maxim Integrated MAX11040KGUU+	64k	24	4	SPI				External Internal	-40 °C	105 ░C	Simultaneous Sampling	Sigma-Delta	3.6 V	3 V	S/H-ADC	1:1	3.6 V	2.7 V	4.4 mm	0.173 in	38-TFSOP	38-TSSOP	4	Surface Mount	Differential

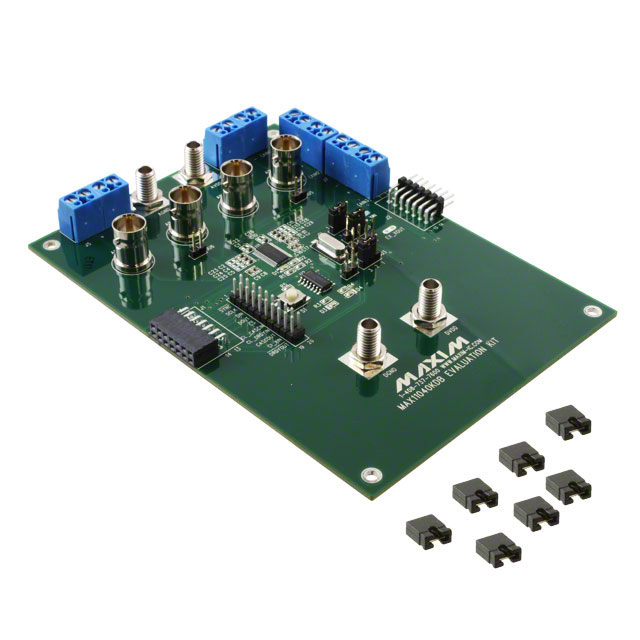

Analog Devices Inc./Maxim Integrated MAX11040KDBEVKIT#	64k	24	4	DSP MICROWIRE™ QSPI™ Serial SPI™	2.2 V	MAX11040K	Board(s)
Analog Devices Inc./Maxim Integrated MAX11040GUU+T	64k	24	4	SPI				External Internal	-40 °C	105 ░C	Simultaneous Sampling	Sigma-Delta	3.6 V	3 V	S/H-ADC	1:1	3.6 V	2.7 V	4.4 mm	0.173 in	38-TFSOP	38-TSSOP	4	Surface Mount	Differential
Analog Devices Inc./Maxim Integrated MAX11040KGUU+T	64k	24	4	SPI				External Internal	-40 °C	105 ░C	Simultaneous Sampling	Sigma-Delta	3.6 V	3 V	S/H-ADC	1:1	3.6 V	2.7 V	4.4 mm	0.173 in	38-TFSOP	38-TSSOP	4	Surface Mount	Differential

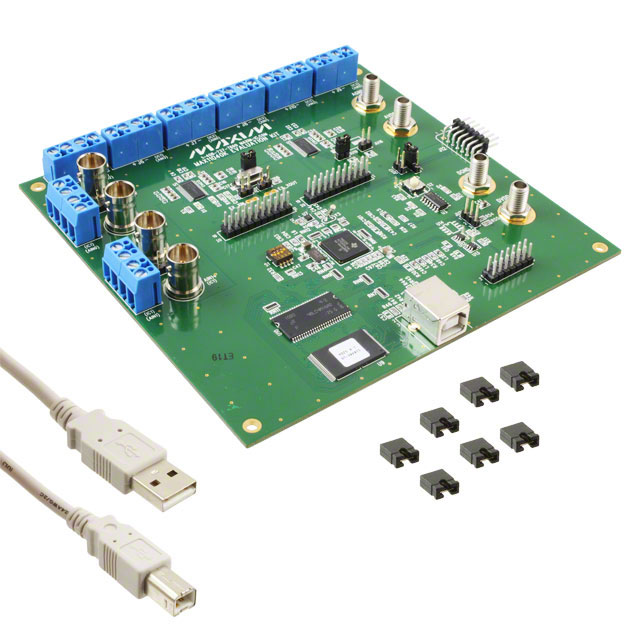

Analog Devices Inc./Maxim Integrated MAX11040KEVKIT#	64k	24	4	DSP MICROWIRE™ QSPI™ Serial SPI™	2.2 V	MAX11040K	Board(s) Cable(s)
Analog Devices Inc./Maxim Integrated MAX11040GUU+	64k	24	4	SPI				External Internal	-40 °C	105 ░C	Simultaneous Sampling	Sigma-Delta	3.6 V	3 V	S/H-ADC	1:1	3.6 V	2.7 V	4.4 mm	0.173 in	38-TFSOP	38-TSSOP	4	Surface Mount	Differential
Analog Devices Inc./Maxim Integrated MAX11040EVKIT+	64k	24	4	DSP MICROWIRE™ QSPI™ Serial SPI™	2.2 V	MAX11040	Board(s) Cable(s)
