331350 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

CONN BNC PLUG STR 50 OHM PUSH

Part	Contact Termination	Connector Type	Number of Ports	Voltage Rating	Body Material	Includes	Mating Cycles	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Impedance	Fastening Type	Housing Color	Frequency - Max [Max]	Center Contact Plating	Shield Termination	Cable Group	Connector Style	Center Contact Material	Mounting Type
TE Connectivity Aerospace, Defense and Marine 9-331350-3	Crimp	Male Pin Plug	1	500 V	Brass	1 Connector 1 Contact 1 Ferrule 1 Gasket	500	Polytetrafluoroethylene (PTFE)	85 °C	-55 °C	Silver	50 Ohms	Bayonet Lock	Silver	4 GHz	Gold	Crimp	187 RG-179	BNC	Brass	Free Hanging (In-Line)

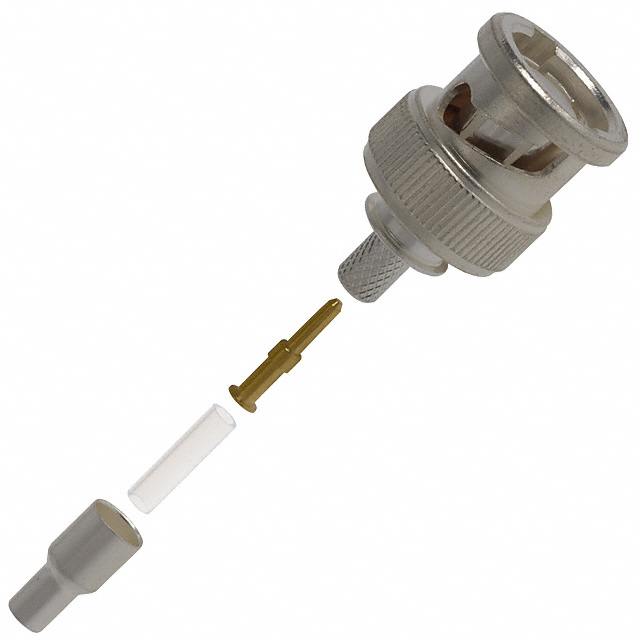

TE Connectivity Aerospace, Defense and Marine 2-331350-5	Crimp	Male Pin Plug	1	500 V	Brass	1 Connector 1 Contact 1 Ferrule 1 Gasket	500	Polytetrafluoroethylene (PTFE)	85 °C	-55 °C	Silver	50 Ohms	Bayonet Lock	Silver	4 GHz	Gold	Crimp	187 RG-179	BNC	Brass	Free Hanging (In-Line)

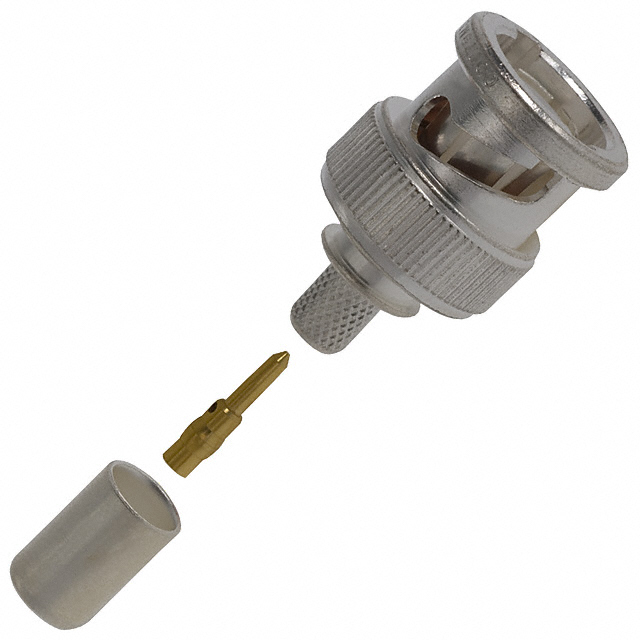

TE Connectivity Aerospace, Defense and Marine 2-331350-1	Crimp	Male Pin Plug	1	500 V	Brass	1 Connector 1 Contact 1 Ferrule 1 Gasket	500	Polytetrafluoroethylene (PTFE)	85 °C	-55 °C	Silver	50 Ohms	Bayonet Lock	Silver	4 GHz	Gold	Crimp	58A 58B 58C RG-58	BNC	Brass	Free Hanging (In-Line)
TE Connectivity Aerospace, Defense and Marine 8-331350-0	Crimp	Male Pin Plug	1	500 V	Brass	1 Connector 1 Contact 1 Ferrule 1 Gasket	500	Polytetrafluoroethylene (PTFE)	85 °C	-55 °C	Silver	50 Ohms	Bayonet Lock	Silver	4 GHz	Gold	Crimp	188 RG-174	BNC	Brass	Free Hanging (In-Line)
TE Connectivity Aerospace, Defense and Marine 2-331350-9	Crimp	Male Pin Plug	1	500 V	Brass	1 Connector 1 Contact 1 Ferrule 1 Gasket	500	Polytetrafluoroethylene (PTFE)	85 °C	-55 °C	Silver	50 Ohms	Bayonet Lock	Silver	4 GHz	Gold	Crimp		BNC	Brass	Free Hanging (In-Line)
TE Connectivity Aerospace, Defense and Marine 2-331350-4	Crimp	Male Pin Plug	1	500 V	Brass	1 Connector 1 Contact 1 Ferrule 1 Gasket	500	Polytetrafluoroethylene (PTFE)	85 °C	-55 °C	Silver	50 Ohms	Bayonet Lock	Silver	4 GHz	Gold	Crimp	188 RG-174	BNC	Brass	Free Hanging (In-Line)
