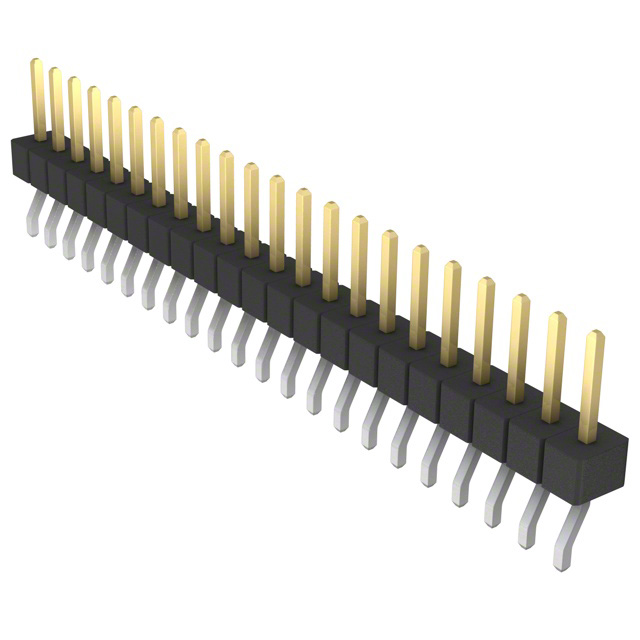

GBC22S Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER SMD R/A 22POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Color | Connector Type | Mounting Type | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Contact Material | Current Rating (Amps) | Termination | Fastening Type | Contact Length - Mating [x] | Contact Length - Mating | Number of Rows | Contact Shape | Pitch - Mating | Pitch - Mating | Insulation Material | Contact Finish - Mating | Number of Positions Loaded | Style | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Shrouding | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 2.54 µm | 100 µin | Black | Breakaway Header | Surface Mount Right Angle | Male Pin | -65 ░C | 150 °C | UL94 V-0 | Phosphor Bronze | 3 A | Solder | Push-Pull | 0.23 in | 5.84 mm | 1 | Square | 0.1 in | 2.54 mm | Nylon 9T Polyamide (PA9T) | Gold | All | Board to Board Cable | 22 positions | 10 çin | 0.25 çm | 3.56 mm | 0.14 in | Unshrouded | Tin |
