M40-110 Series
Manufacturer: Harwin Inc.
Beta
⌘K
WIRE-TO-BOARD CONNECTOR, M40 SERIES, CRIMP, RECEPTACLE, 8, 1 MM ROHS COMPLIANT: YES
| Part | Note | Color | Contact Termination | Fastening Type | Contact Type | Insulation Material | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Pitch | Pitch | Connector Type | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

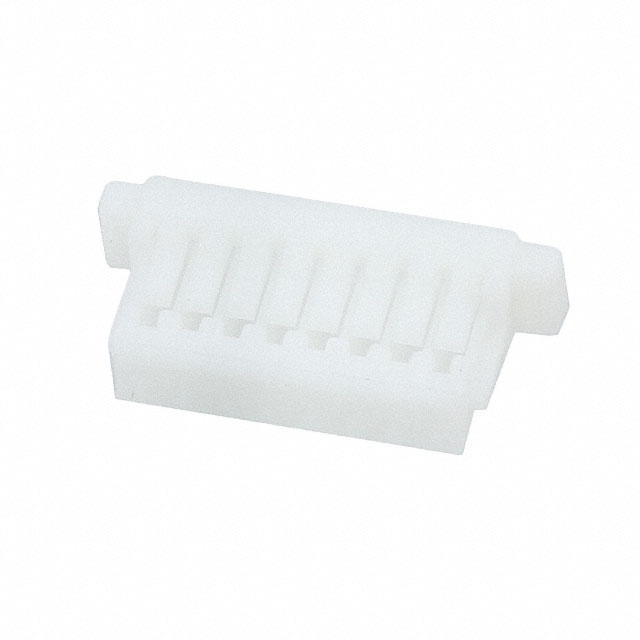

 Harwin Inc. | Contacts Not Included | White | Crimp | Latch Holder | Female Socket | Nylon 6/6 Polyamide (PA66) | Free Hanging (In-Line) | 85 °C | -25 °C | 8 | 1 mm | 0.039 in | Receptacle | 1 |

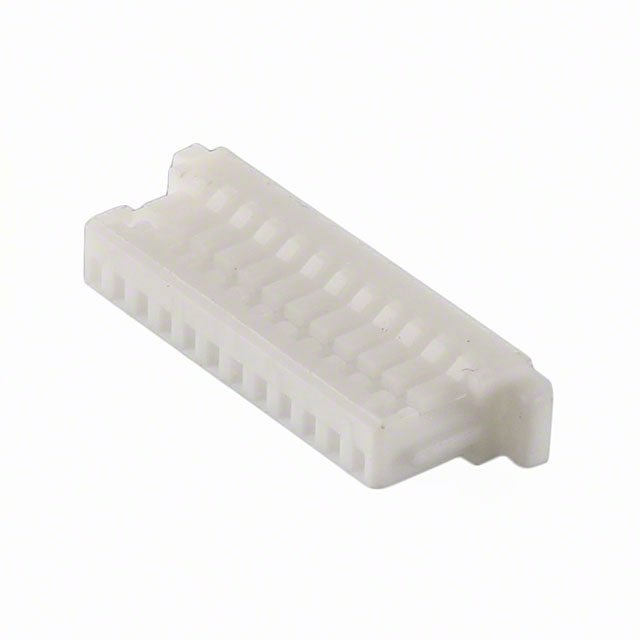

 Harwin Inc. | Contacts Not Included | White | Crimp | Latch Holder | Female Socket | Nylon 6/6 Polyamide (PA66) | Free Hanging (In-Line) | 85 °C | -25 °C | 12 | 1 mm | 0.039 in | Receptacle | 1 |
 Harwin Inc. | Contacts Not Included | White | Crimp | Latch Holder | Female Socket | Nylon 6/6 Polyamide (PA66) | Free Hanging (In-Line) | 85 °C | -25 °C | 6 | 1 mm | 0.039 in | Receptacle | 1 |
 Harwin Inc. | Contacts Not Included | White | Crimp | Latch Holder | Female Socket | Nylon 6/6 Polyamide (PA66) | Free Hanging (In-Line) | 85 °C | -25 °C | 4 | 1 mm | 0.039 in | Receptacle | 1 |

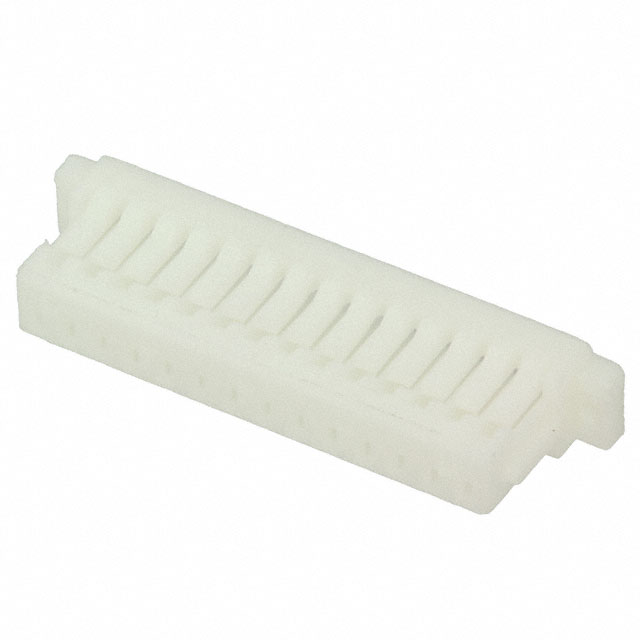

 Harwin Inc. | Contacts Not Included | White | Crimp | Latch Holder | Female Socket | Nylon 6/6 Polyamide (PA66) | Free Hanging (In-Line) | 85 °C | -25 °C | 14 | 1 mm | 0.039 in | Receptacle | 1 |

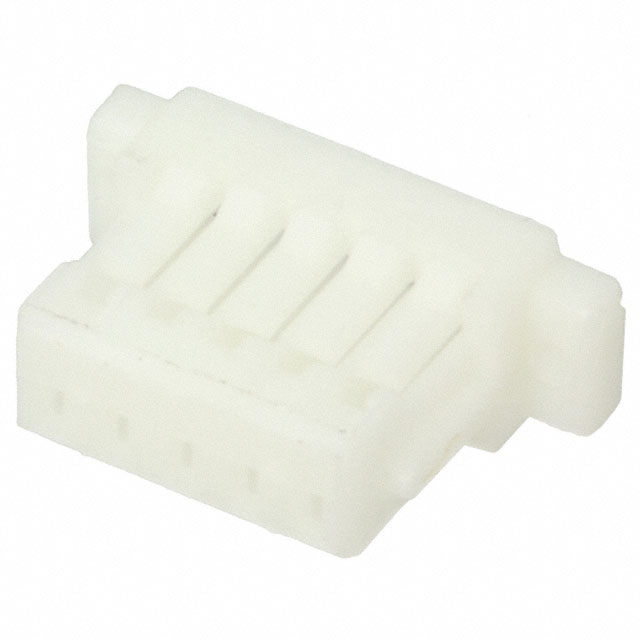

 Harwin Inc. | Contacts Not Included | White | Crimp | Latch Holder | Female Socket | Nylon 6/6 Polyamide (PA66) | Free Hanging (In-Line) | 85 °C | -25 °C | 5 | 1 mm | 0.039 in | Receptacle | 1 |

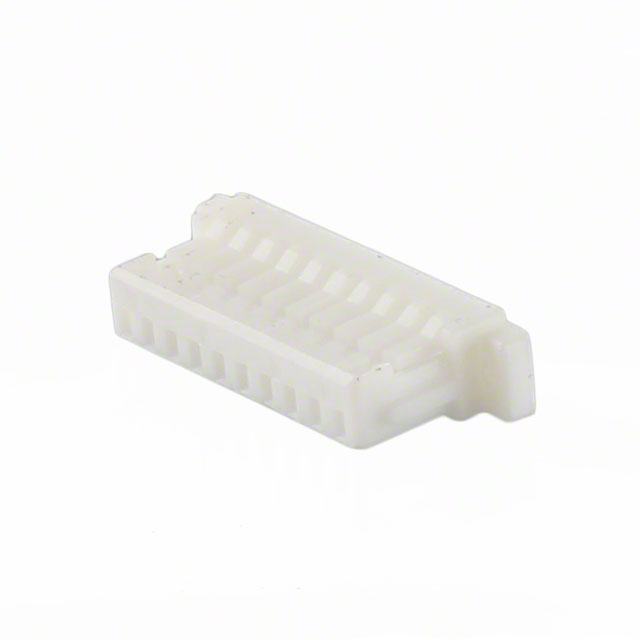

 Harwin Inc. | Contacts Not Included | White | Crimp | Latch Holder | Female Socket | Nylon 6/6 Polyamide (PA66) | Free Hanging (In-Line) | 85 °C | -25 °C | 10 | 1 mm | 0.039 in | Receptacle | 1 |
