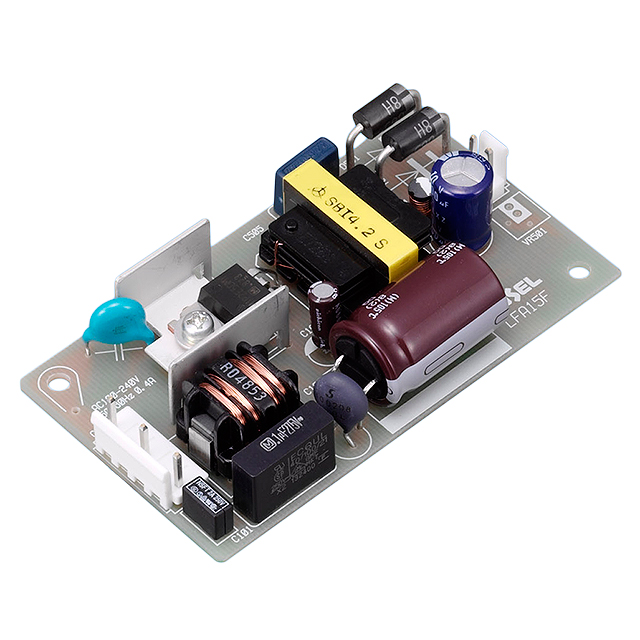

LFA15F Series

Catalog

AC/DC CONVERTER 12V

Part	Efficiency	Current - Output 1	Type	Standard Number	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Applications	Number of Outputs	Mounting Type	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Approval Agency
Cosel USA, Inc. LFA15F-12-J1Y	78.5 %	1.3 A	Open Frame	60950-1 62368-1	22.1 mm	3.44 in	0.87 in	87.4 mm	50 mm	1.97 in	ITE (Commercial)	1	Chassis Mount	3000 V	70 °C	-10 °C	12 V	CE CSA cURus TUV UL
Cosel USA, Inc. LFA15F-3R3-SY	69 %	3 A	Open Frame	60950-1 62368-1	22.1 mm	3.44 in	0.87 in	87.4 mm	50 mm	1.97 in	ITE (Commercial)	1	Chassis Mount	3000 V	70 °C	-10 °C	3.3 V	CE CSA cURus TUV UL
Cosel USA, Inc. LFA15F-12-SNC	78.5 %	1.3 A	Enclosed	60950-1 62368-1	22.1 mm	3.44 in	0.87 in	87.4 mm	50 mm	1.97 in	ITE (Commercial)	1	Chassis Mount	3000 V	70 °C	-10 °C	12 V	CE CSA cURus TUV UL
Cosel USA, Inc. LFA15F-24-SNJ1	81.5 %	700 mA	Enclosed	60950-1 62368-1	22.1 mm	3.44 in	0.87 in	87.4 mm	50 mm	1.97 in	ITE (Commercial)	1	Chassis Mount	3000 V	70 °C	-10 °C	24 V	CE CSA cURus TUV UL
Cosel USA, Inc. LFA15F-12-C	78.5 %	1.3 A	Open Frame	60950-1 62368-1	22.1 mm	3.44 in	0.87 in	87.4 mm	50 mm	1.97 in	ITE (Commercial)	1	Chassis Mount	3000 V	70 °C	-10 °C	12 V	CE CSA cURus TUV UL
Cosel USA, Inc. LFA15F-5-CY	76 %	3 A	Open Frame	60950-1 62368-1	22.1 mm	3.44 in	0.87 in	87.4 mm	50 mm	1.97 in	ITE (Commercial)	1	Chassis Mount	3000 V	70 °C	-10 °C	5 V	CE CSA cURus TUV UL
Cosel USA, Inc. LFA15F-24-CJ1	81.5 %	700 mA	Open Frame	60950-1 62368-1	22.1 mm	3.44 in	0.87 in	87.4 mm	50 mm	1.97 in	ITE (Commercial)	1	Chassis Mount	3000 V	70 °C	-10 °C	24 V	CE CSA cURus TUV UL
Cosel USA, Inc. LFA15F-24-G	81.5 %	700 mA	Open Frame	60950-1 62368-1	22.1 mm	3.44 in	0.87 in	87.4 mm	50 mm	1.97 in	ITE (Commercial)	1	Chassis Mount	3000 V	70 °C	-10 °C	24 V	CE CSA cURus TUV UL
Cosel USA, Inc. LFA15F-5-CJ1Y	76 %	3 A	Open Frame	60950-1 62368-1	22.1 mm	3.44 in	0.87 in	87.4 mm	50 mm	1.97 in	ITE (Commercial)	1	Chassis Mount	3000 V	70 °C	-10 °C	5 V	CE CSA cURus TUV UL
Cosel USA, Inc. LFA15F-15-SJ1	80 %	1 A	Open Frame	60950-1 62368-1	22.1 mm	3.44 in	0.87 in	87.4 mm	50 mm	1.97 in	ITE (Commercial)	1	Chassis Mount	3000 V	70 °C	-10 °C	15 V	CE CSA cURus TUV UL
