09120082 Series
Manufacturer: HARTING
Beta
⌘K

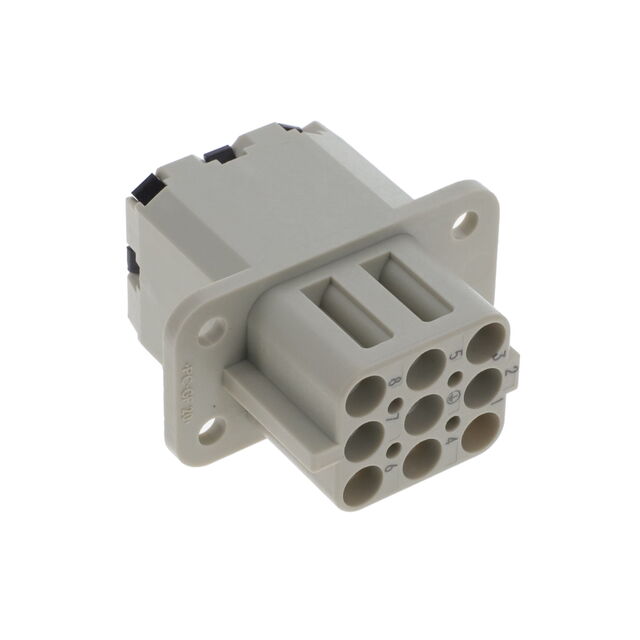

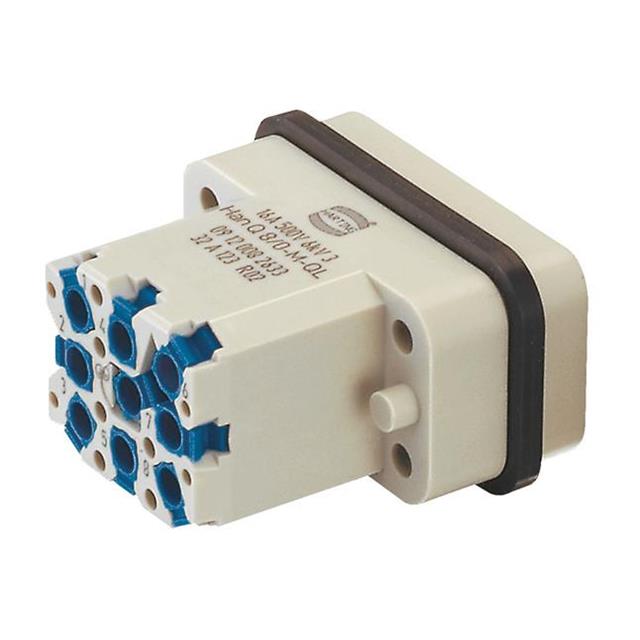

HEAVY DUTY CONNECTOR, HAN Q SERIES, INSERT, 8 CONTACTS, PLUG, PUSH LOCK PIN
| Part | Contact Material | Color | Material Flammability Rating | Housing Material | Contact Finish | Voltage Rating | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Gender | Connector Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Copper Alloy | Gray | UL94 V-0 | Polycarbonate (PC) | Silver | 500 V | Push In with Lock | 125 °C | -40 C | 8 | Male | Insert | 16 A |
 HARTING | Copper Alloy | Gray | UL94 V-0 | Polycarbonate (PC) | Silver | 500 V | Push In with Lock | 125 °C | -40 C | 8 | Female | Insert | 16 A |
 HARTING | Copper Alloy | Gray | UL94 V-0 | Polycarbonate (PC) | Silver | 500 V | Push In with Lock | 125 °C | -40 C | 8 | Female | Insert | 16 A |
