B07D93 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

B07D939BC1-0273 = RELAY.

Part	Release Time	Coil Current	Must Operate Voltage	Seal Rating	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Coil Resistance	Operate Time	Coil Voltage	Termination Style	Contact Form	Contact Rating (Current)	Coil Type	Must Release Voltage	Mounting Type	Contact Material	Grade
TE Connectivity Aerospace, Defense and Marine 1617005-2	10 ms	88.3 mA	13 VDC	Sealed - Hermetically	125 °C	-65 ░C	General Purpose	300 Ohms	10 ms	26.5 VDC	PC Pin	DPDT (2 Form C)	10 A	Non Latching	1.8 VDC	Through Hole	Silver Cadmium Oxide (AgCdO)
TE Connectivity Aerospace, Defense and Marine B07D932BA2-0350	15 ms		3.25 VDC	Sealed - Hermetically	125 °C	-65 ░C	General Purpose		15 ms		Solder Hook	DPDT (2 Form C)	10 A	Non Latching	1.8 VDC	Chassis Mount	Silver Cadmium Oxide (AgCdO)	Military
TE Connectivity Aerospace, Defense and Marine 9-1617527-1	10 ms	88.3 mA	13 VDC	Sealed - Hermetically	125 °C	-65 ░C	General Purpose	300 Ohms	10 ms	26.5 VDC	Solder Hook	DPDT (2 Form C)	10 A	Non Latching	1.8 VDC	Chassis Mount	Silver Cadmium Oxide (AgCdO)
TE Connectivity Aerospace, Defense and Marine 1617005-1	10 ms	15.8 mA	66 VDC	Sealed - Hermetically	125 °C	-65 ░C	General Purpose	7600 Ohms	10 ms	120 VDC	PC Pin	DPDT (2 Form C)	10 A	Non Latching	9 VDC	Through Hole	Silver Cadmium Oxide (AgCdO)
TE Connectivity Aerospace, Defense and Marine 5-1617004-0	10 ms	15.8 mA	66 VDC	Sealed - Hermetically	125 °C	-65 ░C	General Purpose	7600 Ohms	10 ms	120 VDC	PC Pin	DPDT (2 Form C)	10 A	Non Latching	9 VDC	Through Hole	Silver Cadmium Oxide (AgCdO)
TE Connectivity Aerospace, Defense and Marine 4-1617004-6	10 ms	88.3 mA	13 VDC	Sealed - Hermetically	125 °C	-65 ░C	General Purpose	300 Ohms	10 ms	26.5 VDC	PC Pin	DPDT (2 Form C)	10 A	Non Latching	1.8 VDC	Through Hole	Silver Cadmium Oxide (AgCdO)

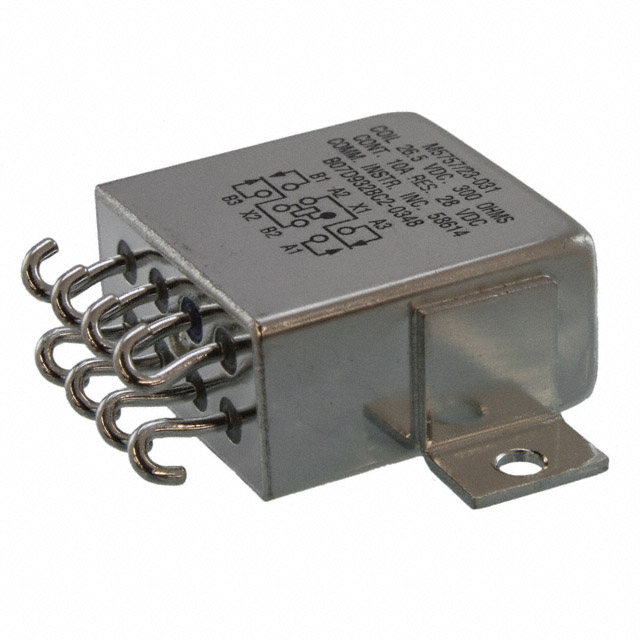

TE Connectivity Aerospace, Defense and Marine B07D932BC2-0348	15 ms	88.3 mA	13 VDC	Sealed - Hermetically	125 °C	-65 ░C	General Purpose	300 Ohms	15 ms	26.5 VDC	Solder Hook	DPDT (2 Form C)	10 A	Non Latching	2.3 VDC	Chassis Mount	Silver Cadmium Oxide (AgCdO)	Military
TE Connectivity Aerospace, Defense and Marine B07D932BZ2-0358	15 ms	105.9 mA	9.7 VDC	Sealed - Hermetically	125 °C	-65 ░C	General Purpose	170 Ohms	15 ms	18 VDC	Solder Hook	DPDT (2 Form C)	10 A	Non Latching	1.15 VDC	Chassis Mount	Silver Cadmium Oxide (AgCdO)
TE Connectivity Aerospace, Defense and Marine B07D934BZ2-0356	15 ms	105.9 mA	9.7 VDC	Sealed - Hermetically	125 °C	-65 ░C	General Purpose	170 Ohms	15 ms	18 VDC	PC Pin	DPDT (2 Form C)	10 A	Non Latching	1.15 VDC	Chassis Mount	Silver Cadmium Oxide (AgCdO)
TE Connectivity Aerospace, Defense and Marine 9-1617527-3	10 ms	40 mA	26 VDC	Sealed - Hermetically	125 °C	-65 ░C	General Purpose	1.2 kOhms	10 ms	48 VDC	Solder Hook	DPDT (2 Form C)	10 A	Non Latching	3.6 VDC	Chassis Mount	Silver Cadmium Oxide (AgCdO)
