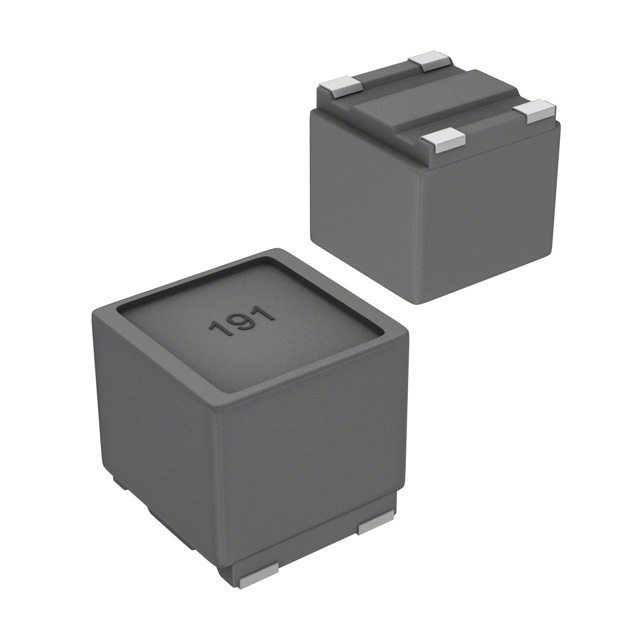

SRF0504 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FILTER, LINE, 6 µH, SRF0504 SERIES, 3 KOHM, 500 MA, 5.2MM X 5MM X 4.8MM
| Part | Filter Type | Current Rating (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Height (Max) [Max] [z] | Height (Max) [Max] [z] | Number of Lines | DC Resistance (DCR) (Max) [Max] | Inductance @ Frequency | Voltage Rating - DC | Impedance @ Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Signal Line | 500 mA | 5.2 mm | 5 mm | 0.205 " | 0.197 " | Surface Mount | Horizontal 4 PC Pad | 125 °C | -40 C | 4.8 mm | 0.189 in | 2 | 200 mOhm | 6 µH | 50 VDC | 3 kOhms |
