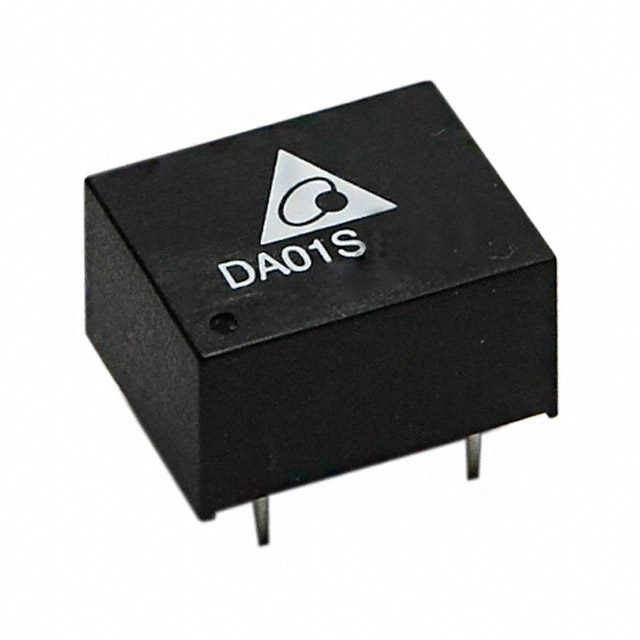

DA01S Series
Manufacturer: Delta Electronics
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC/DC CONVERTER, 5VOUT, 1W
| Part | Voltage - Isolation | Voltage - Input (Max) [Max] | Voltage - Output 1 | Mounting Type | Type | Efficiency | Applications | Package / Case | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Input (Min) [Min] | Features | Current - Output (Max) [Max] | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 3000 V | 5.5 V | 5 V | Through Hole | Isolated Module | 69 % | Medical | 7-DIP Module 4 Leads | 7.9 mm | 0.4 " | 0.5 " | 0.31 " | 12.7 mm | 10.2 mm | 4.5 V | SCP | 200 mA | 1 | 85 °C | -40 C |
 Delta Electronics | 3000 V | 26.4 V | 5 V | Through Hole | Isolated Module | 70 % | Medical | 7-DIP Module 4 Leads | 7.9 mm | 0.4 " | 0.5 " | 0.31 " | 12.7 mm | 10.2 mm | 21.6 V | SCP | 200 mA | 1 | 85 °C | -40 C |
Delta Electronics | 3000 V | 5.5 V | 9 V | Through Hole | Isolated Module | 76 % | Medical | 7-DIP Module 4 Leads | 7.9 mm | 0.4 " | 0.5 " | 0.31 " | 12.7 mm | 10.2 mm | 4.5 V | SCP | 110 mA | 1 | 85 °C | -40 C |
Delta Electronics | 3000 V | 13.2 V | 12 V | Through Hole | Isolated Module | 79 % | Medical | 7-DIP Module 4 Leads | 7.9 mm | 0.4 " | 0.5 " | 0.31 " | 12.7 mm | 10.2 mm | 10.8 V | SCP | 84 mA | 1 | 85 °C | -40 C |
