3128-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

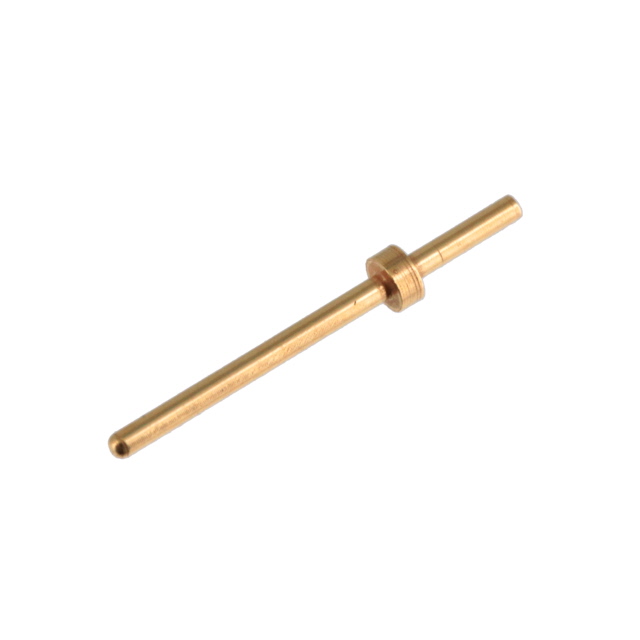

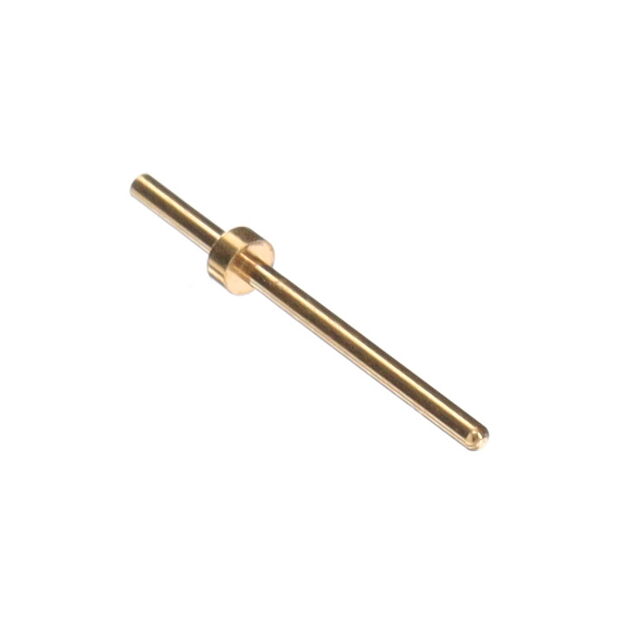

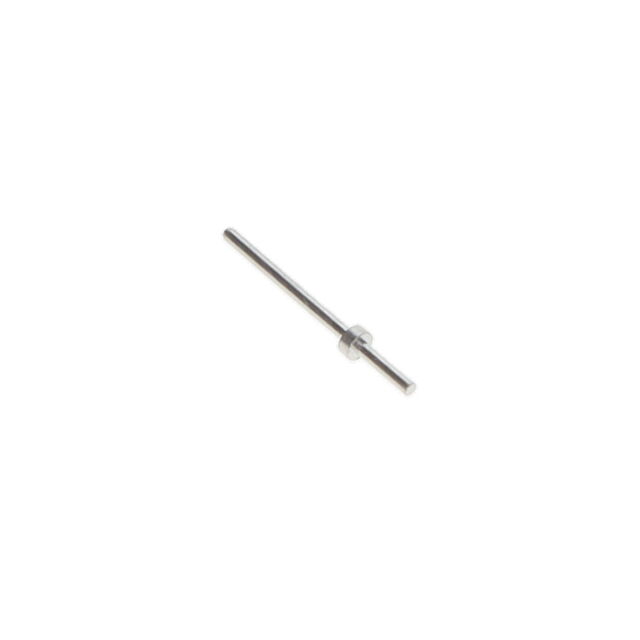

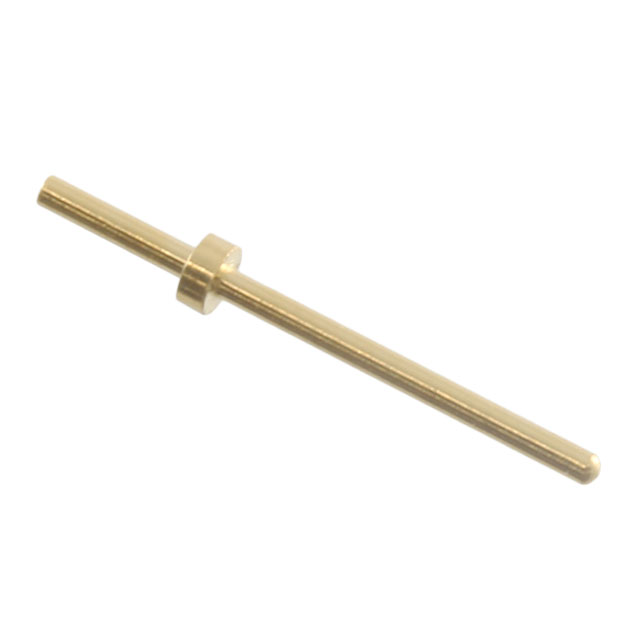

CONN PC PIN CIRC .020DIA GOLD
| Part | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Insulation | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Length - Overall [x] | Length - Overall [x] | Contact Finish | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Terminal Type | Terminal Style | Length - Above Flange [x] | Length - Above Flange [x] | Termination | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.02 in | 0.51 mm | Non-Insulated | Brass Alloy | 20 µin | 0.51 µm | 0.37 in | 9.4 mm | Gold | 0.02 in | 0.51 mm | PC Pin | Single End | 6.35 mm | 0.25 in | Solder | 0.046 " | 1.17 mm | 0.61 mm | 0.024 in | 2.54 mm | 0.1 " | Through Hole |
 Mill-Max Manufacturing Corp. | 0.02 in | 0.51 mm | Non-Insulated | Brass Alloy | 50 µin | 1.27 µm | 0.37 in | 9.4 mm | Gold | 0.02 in | 0.51 mm | PC Pin | Single End | 6.35 mm | 0.25 in | Solder | 0.046 " | 1.17 mm | 0.61 mm | 0.024 in | 2.54 mm | 0.1 " | Through Hole |
 Mill-Max Manufacturing Corp. | 0.02 in | 0.51 mm | Non-Insulated | Brass | 200 Áin | 5.08 Ám | 1.27 in | 32.26 mm | Tin | 0.02 in | 0.51 mm | PC Pin | Single End | 6.35 mm | 0.25 in | Solder | 0.046 " | 1.17 mm | 0.61 mm | 0.024 in | 2.54 mm | 0.1 " | Through Hole |
 Mill-Max Manufacturing Corp. | 0.02 in | 0.51 mm | Non-Insulated | Brass Alloy | 10 Áin | 0.25 Ám | 0.37 in | 9.4 mm | Gold | 0.02 in | 0.51 mm | PC Pin | Single End | 6.35 mm | 0.25 in | Solder | 0.046 " | 1.17 mm | 0.61 mm | 0.024 in | 2.54 mm | 0.1 " | Through Hole |
