78415 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

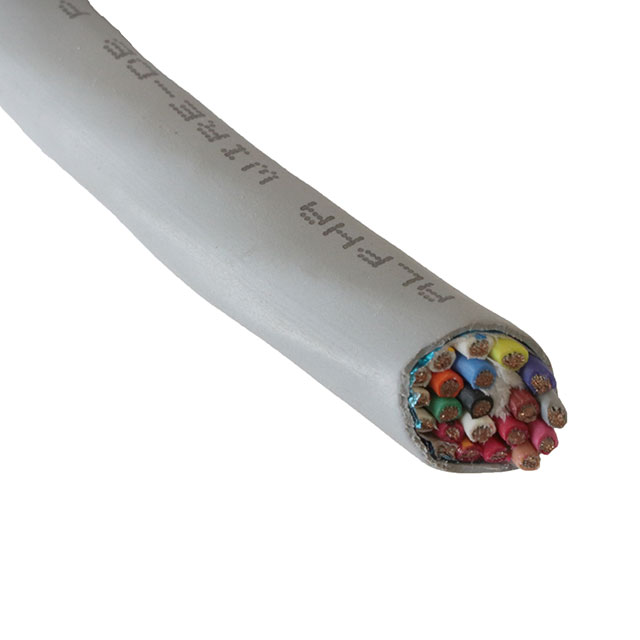

CABLE 20COND 20AWG SLATE SHLD 1'
| Part | Shield Material | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Shield Coverage | Wire Gauge | Length | Length | Ratings | Voltage | Shield Type | Features | Jacket Color | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 20 | -40 °C | 80 C | Copper Tinned | Multi-Conductor | 0.015 in | 0.381 mm | Polyphenylene Ether Modified (mPPE) | 100 % | 20 AWG | 1 ft | 300 mm | ISO 10993 UL Style 21460 | 300 V | Foil | Biological Compatibility Drain Wire Rip Cord | Slate | Polyphenylene Ether Modified (mPPE) | 19 | 32 AWG | 0.321 " | 8.15 mm | ||
 ALPHA WIRE | Aluminum | 20 | -40 °C | 80 C | Copper Tinned | Multi-Conductor | 0.015 in | 0.381 mm | Polyphenylene Ether Modified (mPPE) | 100 % | 20 AWG | ISO 10993 UL Style 21460 | 300 V | Foil | Biological Compatibility Drain Wire Rip Cord | Slate | Polyphenylene Ether Modified (mPPE) | 19 | 32 AWG | 0.321 " | 8.15 mm | 30.5 m | 100 ft |
