M24308/1 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
D SUB CONNECTOR, 15 CONTACTS, RECEPTACLE, SOLDER CUP, DA, MIL-DTL-24308 SERIES, STEEL BODY
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Finish | Connector Type | Current Rating (Amps) | Mounting Type | Contact Type | Connector Style | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Number of Rows [custom] | Flange Feature | Shell Size, Connector Layout | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Material, Finish | Contact Material | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Material Flammability Rating | Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ITT Cannon, LLC | Polyester | -55 C | 150 °C | 15 | Gold | Receptacle Female Sockets | 7.5 A | Panel Mount | Signal | D-Sub | Yellow Chromate Plated Zinc | Steel | 2 | Housing/Shell (Unthreaded) | 2 | 50 µin | 1.27 µm | |||||||||

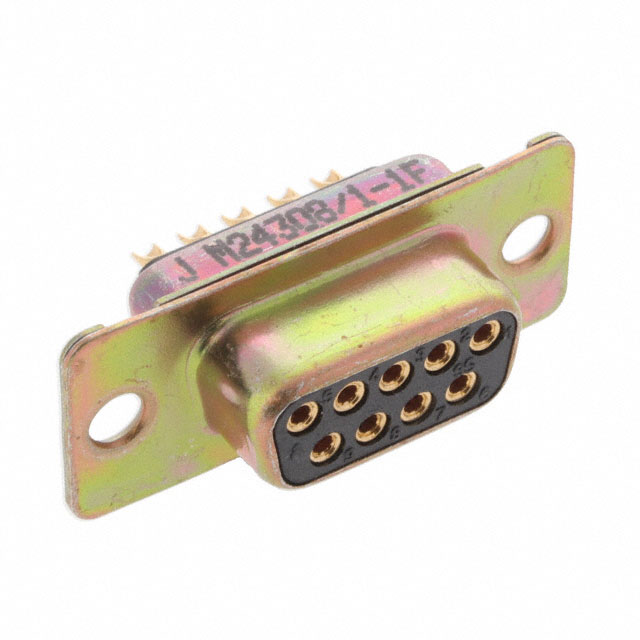

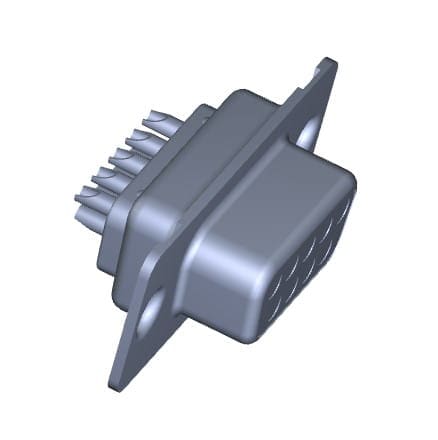

 ITT Cannon, LLC | Polyester | -55 C | 150 °C | 9 | Gold | Receptacle Female Sockets | 7.5 A | Panel Mount | Signal | D-Sub | 2 | Housing/Shell (Unthreaded) | 50 µin | 1.27 µm | 1 | DE E | Steel Yellow Chromate Plated Cadmium | |||||||||

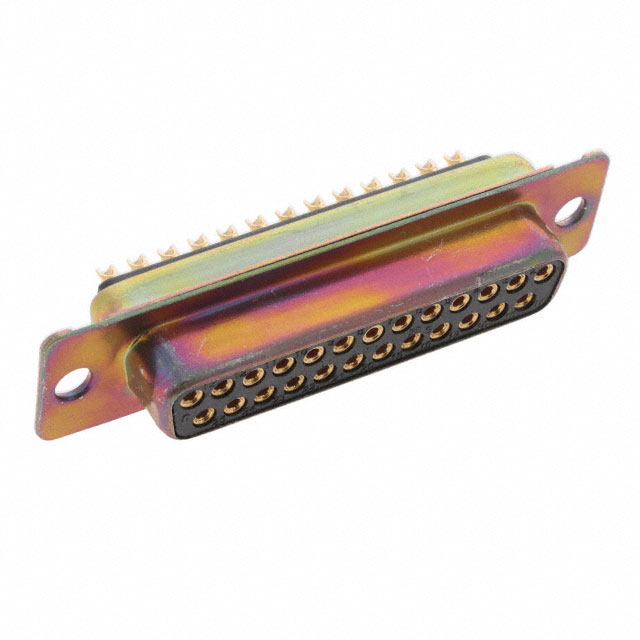

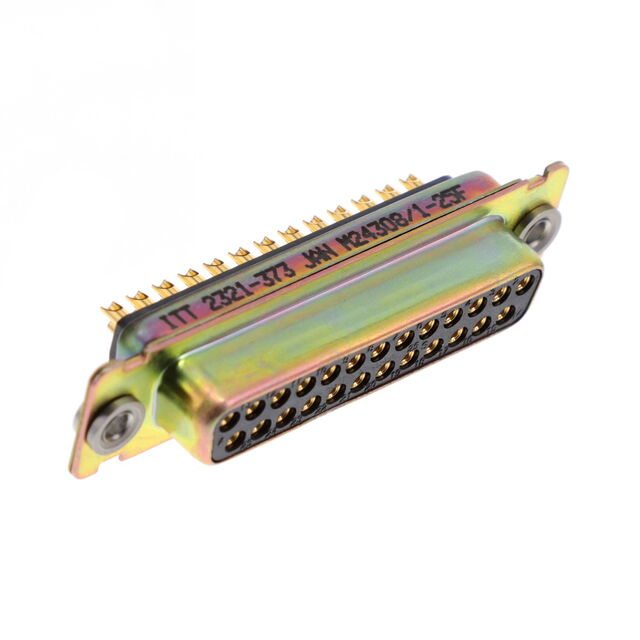

 ITT Cannon, LLC | Polyester | -55 C | 150 °C | 25 | Gold | Receptacle Female Sockets | 7.5 A | Panel Mount | Signal | D-Sub | 2 | Housing/Shell (Unthreaded) | 50 µin | 1.27 µm | Steel Yellow Chromate Plated Cadmium | Copper Alloy | B DB | 3 | UL94 V-0 | |||||||

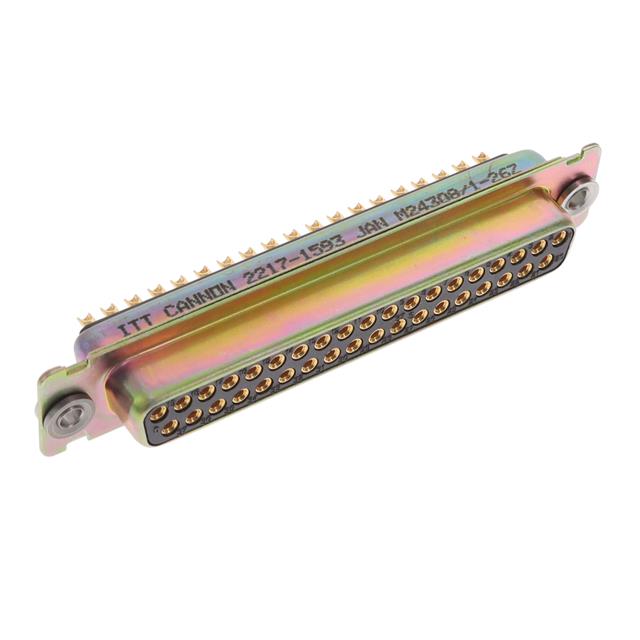

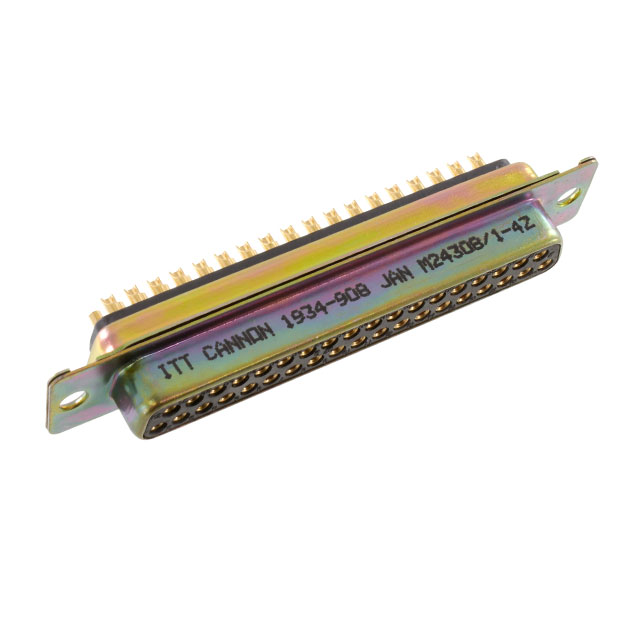

 ITT Cannon, LLC | Polyester | -55 C | 150 °C | 37 | Gold | Receptacle Female Sockets | 7.5 A | Panel Mount | Signal | D-Sub | Yellow Chromate Plated Zinc | Steel | 2 | Housing/Shell (Unthreaded) | 4 | 50 µin | 1.27 µm | DC C | ||||||||

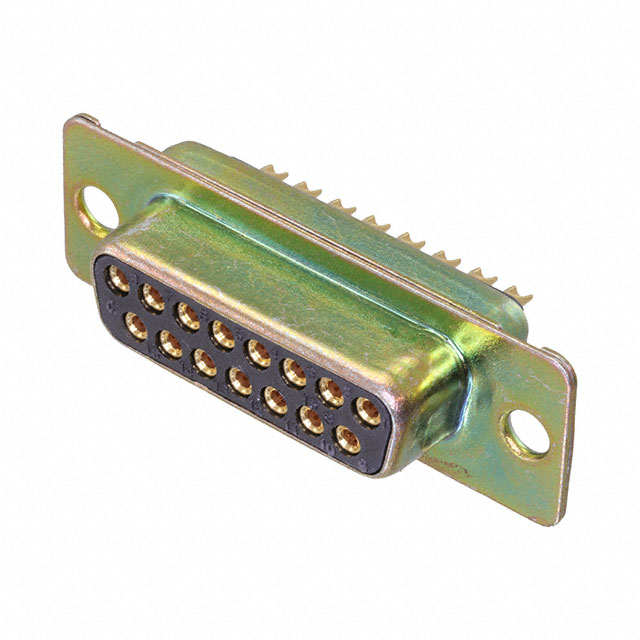

 ITT Cannon, LLC | Polyester | -55 C | 150 °C | 15 | Gold | Receptacle Female Sockets | 7.5 A | Panel Mount | Signal | D-Sub | 2 | Housing/Shell (Unthreaded) | 2 | 50 µin | 1.27 µm | Steel Yellow Chromate Plated Cadmium | ||||||||||

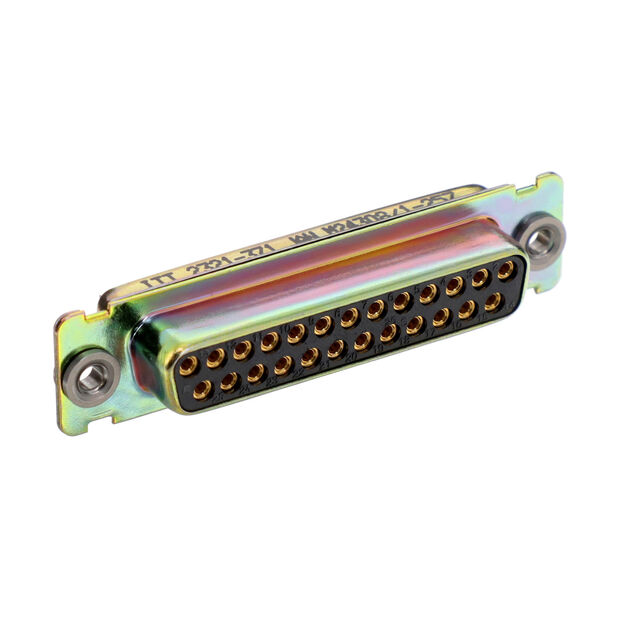

 ITT Cannon, LLC | Polyester | -55 C | 150 °C | 25 | Gold | Receptacle Female Sockets | 7.5 A | Panel Mount | Signal | D-Sub | 2 | Housing/Shell (Unthreaded) | 50 µin | 1.27 µm | Steel Yellow Chromate Plated Cadmium | B DB | 3 | |||||||||
 ITT Cannon, LLC | Polyester | -55 C | 150 °C | 37 | Gold | Receptacle Female Sockets | 7.5 A | Panel Mount | Signal | D-Sub | 2 | Housing/Shell (Unthreaded) | 4 | 50 µin | 1.27 µm | Steel Yellow Chromate Plated Cadmium | DC C | |||||||||

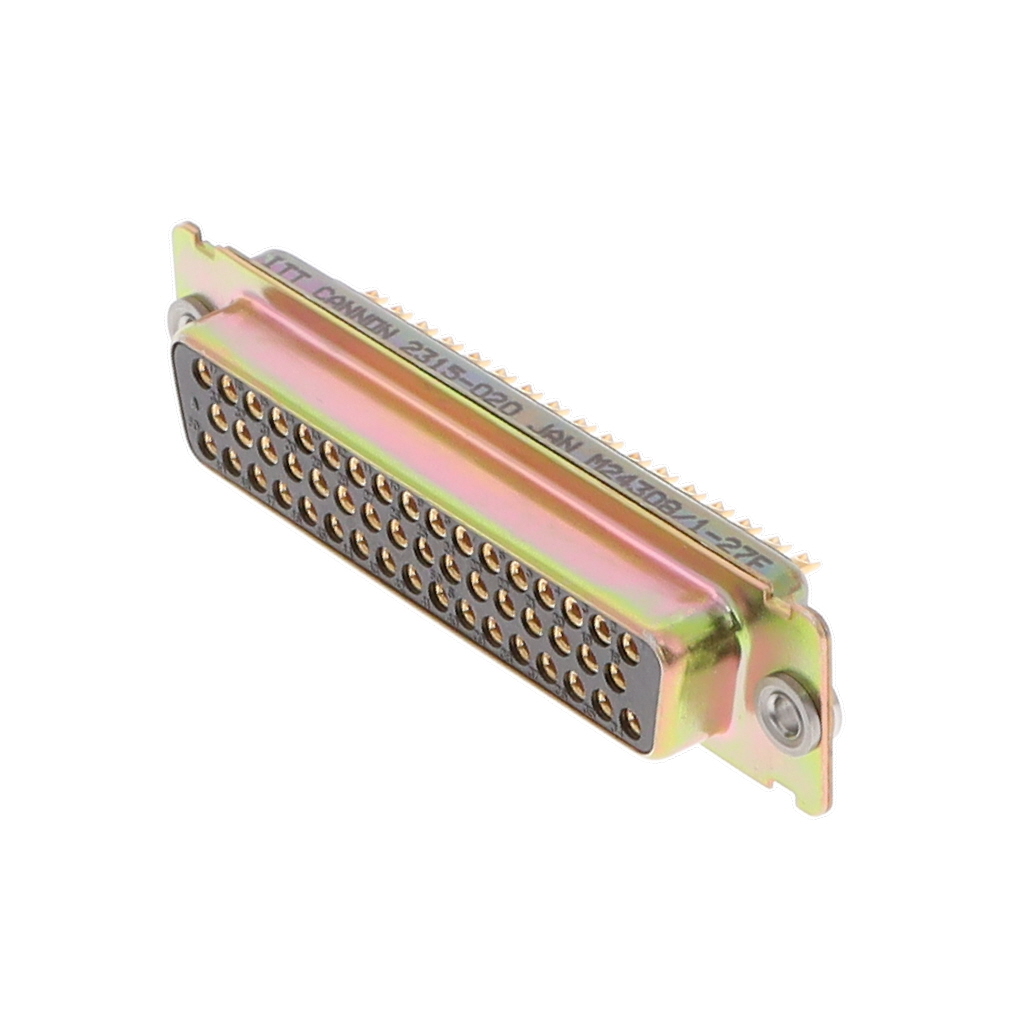

 ITT Cannon, LLC | Thermoplastic | -55 C | 125 °C | 50 | Gold | Receptacle Female Sockets | 7.5 A | Panel Mount Through Hole | Signal | D-Sub | 3 | Housing/Shell (Unthreaded) | 50 µin | 1.27 µm | 5 | D DD | Steel Yellow Chromate Plated Cadmium | Solder | Shielded | |||||||
 ITT Cannon, LLC | Polyester | -55 C | 150 °C | 9 | Gold | Receptacle Female Sockets | 7.5 A | Panel Mount | Signal | D-Sub | Yellow Chromate Plated Zinc | Steel | 2 | Housing/Shell (Unthreaded) | 50 µin | 1.27 µm | 1 | DE E | ||||||||
 ITT Cannon, LLC | Polyester | -55 C | 150 °C | 25 | Gold | Receptacle Female Sockets | 7.5 A | Panel Mount | Signal | D-Sub | Yellow Chromate Plated Zinc | Steel | 2 | Housing/Shell (Unthreaded) | 50 µin | 1.27 µm | B DB | 3 |
