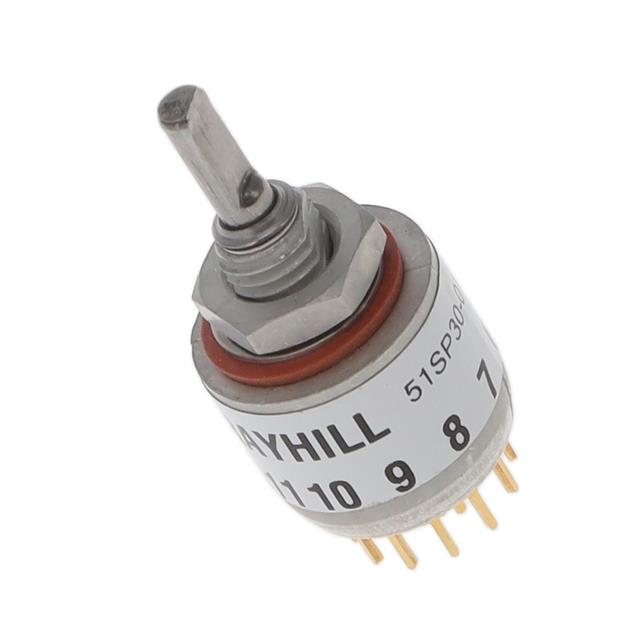

51SP30 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH ROTARY 12POS 150MA 115V
| Part | Panel Cutout Dimensions [diameter] | Actuator Type | Circuit per Deck | Current Rating (Amps) | Index Stops | Voltage Rating - AC | Angle of Throw | Voltage Rating - DC | Number of Positions | Number of Poles per Deck | Mounting Type | Actuator Length [x] | Contact Finish | Contact Timing | Depth Behind Panel [custom] | Features | Termination Style | Number of Decks [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 6.45 mm | Flatted (3.17mm Dia) | SP12T | 150 mA 200 mA | Fixed | 115 V | 30 ° | 28 V | 12 | 1 | Panel Mount Through Hole | 9.53 mm | Gold | Shorting (MBB) | 13.64 mm | Shaft and Panel Sealed | PC Pin | 1 |
Grayhill Inc. | 6.45 mm | Flatted (3.17mm Dia) | 3P4T | 150 mA 200 mA | Fixed | 115 V | 30 ° | 28 V | 4 | 3 | Panel Mount Through Hole | 9.53 mm | Gold | Non-Shorting (BBM) | 13.64 mm | Shaft and Panel Sealed | PC Pin | 1 |
 Grayhill Inc. | 6.45 mm | Flatted (3.17mm Dia) | 4PDT | 150 mA 200 mA | Fixed | 115 V | 30 ° | 28 V | 2 | Panel Mount Through Hole | 9.53 mm | Gold | Non-Shorting (BBM) | 13.64 mm | Shaft and Panel Sealed | PC Pin | 1 | |
Grayhill Inc. | 6.45 mm | Flatted (3.17mm Dia) | DP6T | 150 mA 200 mA | Fixed | 115 V | 30 ° | 28 V | 6 | 2 | Panel Mount Through Hole | 9.53 mm | Gold | Non-Shorting (BBM) | 13.64 mm | Shaft and Panel Sealed | PC Pin | 1 |
Grayhill Inc. | Flatted (3.17mm Dia) | DP5T | 150 mA 200 mA | Fixed | 115 V | 30 ° | 28 V | 5 | 2 | Panel Mount Through Hole | 9.53 mm | Gold | Shorting (MBB) | 13.64 mm | Process Sealed Shaft and Panel Sealed | PC Pin | 1 | |
Grayhill Inc. | Flatted (3.17mm Dia) | SP5T | 150 mA 200 mA | Fixed | 115 V | 30 ° | 28 V | 5 | 1 | Panel Mount Through Hole | 9.53 mm | Gold | Shorting (MBB) | 13.64 mm | Process Sealed Shaft and Panel Sealed | PC Pin | 1 | |
Grayhill Inc. | 6.45 mm | Flatted (3.17mm Dia) | 3P3T | 150 mA 200 mA | Fixed | 115 V | 30 ° | 28 V | 3 | Panel Mount Through Hole | 9.53 mm | Gold | Non-Shorting (BBM) | 13.64 mm | Shaft and Panel Sealed | PC Pin | 1 | |
Grayhill Inc. | 6.45 mm | Flatted (3.17mm Dia) | SP4T | 150 mA 200 mA | Fixed | 115 V | 30 ° | 28 V | 4 | 1 | Panel Mount Through Hole | 9.53 mm | Gold | Shorting (MBB) | 13.64 mm | Shaft and Panel Sealed | PC Pin | 1 |
Grayhill Inc. | 6.45 mm | Flatted (3.17mm Dia) | 3P3T | 150 mA 200 mA | Fixed | 115 V | 30 ° | 28 V | 3 | Panel Mount Through Hole | 9.53 mm | Gold | Shorting (MBB) | 13.64 mm | Shaft and Panel Sealed | PC Pin | 1 | |
Grayhill Inc. | 6.45 mm | Flatted (3.17mm Dia) | SP5T | 150 mA 200 mA | Fixed | 115 V | 30 ° | 28 V | 5 | 1 | Panel Mount Through Hole | 9.53 mm | Gold | Non-Shorting (BBM) | 13.64 mm | Shaft and Panel Sealed | PC Pin | 1 |
