Y101132C Series
Manufacturer: LITTELFUSE
Beta
⌘K

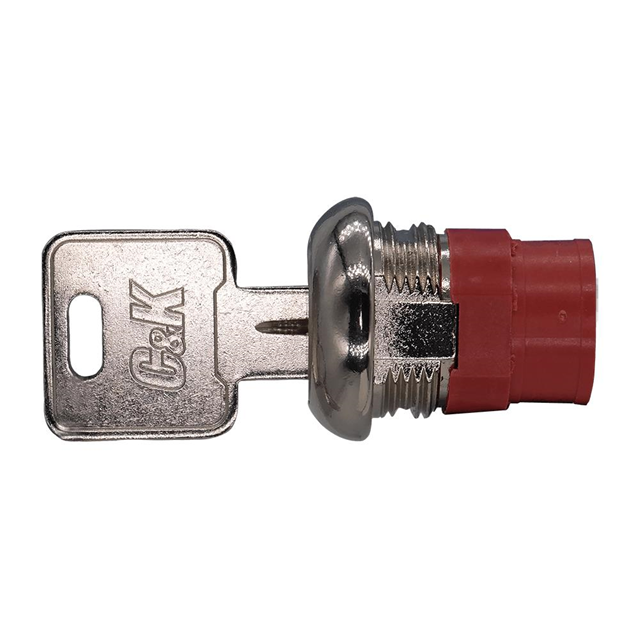

SWITCH KEYLOCK 2POS SPDT 4A 125V
| Part | Depth Behind Flange | Electrical Life | Actuator Type | Contact Finish | Features | Contact Material | Circuit | Voltage Rating - AC | Number of Positions | Switch Function | Contact Timing | Key Removable Positions | Panel Cutout Dimensions [diameter] | Termination Style | Voltage Rating - DC | Mounting Type | Angle of Throw | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 28.83 mm | 10000 Cycles | Flat Key | Silver | Epoxy Sealed Terminals | Copper | SPDT | 125 V | 2 | On-On | Not Specified | 1 | 19.3 mm | Solder Lug | 28 V | Panel Mount | 90 ° | 4 A |
LITTELFUSE | 23.14 mm | 10000 Cycles | Flat Key | Silver | Copper | SPDT | 125 V | 2 | On-On | Not Specified | 1 | 19.3 mm | Wire Leads | 28 V | Panel Mount | 90 ° | 4 A |
