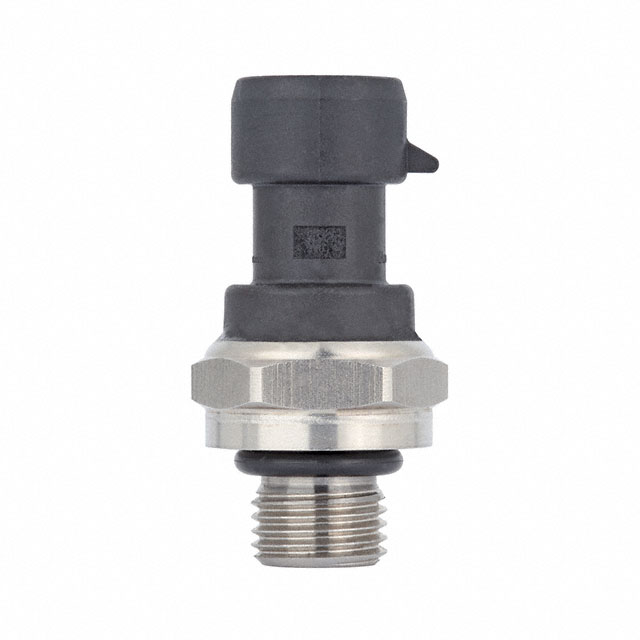

MIPAG1 Series

Catalog

SENSOR 725.19PSIS 1/4" 4.5V

Part	Pressure Type	Port Style	Package / Case	Port Size	Port Size	Termination Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Output [Min]	Output [Max]	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Features	Output Type	Accuracy	Voltage - Supply [Min]	Voltage - Supply [Max]
Honeywell Sensing and Productivity Solutions MIPAG1XX050BSAAX	Sealed Gauge	Threaded	Cylinder Threaded	BSPP Male	6.35 mm	Connector	12000 kPa	1740.45 PSI	0.5 V	4.5 V	725.19 PSI	5000 kPa	125 °C	-40 °C	Temperature Compensated	Analog Voltage	0.15 %	4.75 V	5.25 V
