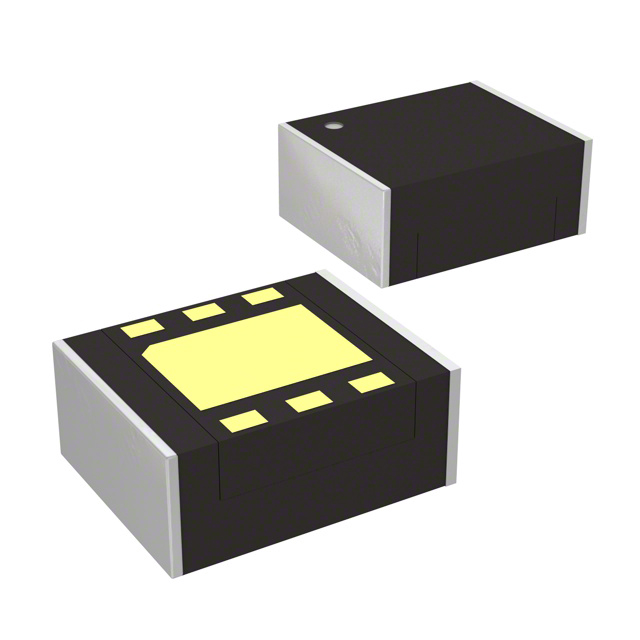

XCL101 Series

Catalog

DC DC CONVERTER 4.5V 0.3W

Part	Package / Case	Number of Outputs	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Type	Applications	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type
Torex Semiconductor Ltd XCL101C451ER-G	8-TDFN Exposed Pad	1	5.5 V	100 mA	0.9 V	85 °C	-40 C	CL-2025-02	Non-Isolated PoL Module	ITE (Commercial)	4.5 V	0.04 in	2.5 mm	0.08 in	2 mm	1 mm	0.1 "	Surface Mount
Torex Semiconductor Ltd XCL101C301ER-G		1	5.5 V	100 mA	0.9 V	85 °C	-40 C	CL-2025-02	Non-Isolated PoL Module	ITE (Commercial)	3 V	0.04 in	2.5 mm	0.08 in	2 mm	1 mm	0.1 "	Surface Mount
Torex Semiconductor Ltd XCL101A361ER-G	8-TDFN Exposed Pad	1	5.5 V	100 mA	0.9 V	85 °C	-40 C	CL-2025-02	Non-Isolated PoL Module	ITE (Commercial)	3.6 V	0.04 in	2.5 mm	0.08 in	2 mm	1 mm	0.1 "	Surface Mount
Torex Semiconductor Ltd XCL101A201ER-G	8-TDFN Exposed Pad	1	5.5 V	100 mA	0.9 V	85 °C	-40 C	CL-2025-02	Non-Isolated PoL Module	ITE (Commercial)	2 V	0.04 in	2.5 mm	0.08 in	2 mm	1 mm	0.1 "	Surface Mount
Torex Semiconductor Ltd XCL101C411ER-G	8-TDFN Exposed Pad							CL-2025-02										Surface Mount
Torex Semiconductor Ltd XCL101C191ER-G	8-TDFN Exposed Pad							CL-2025-02										Surface Mount
Torex Semiconductor Ltd XCL101A181ER-G	8-TDFN Exposed Pad	1	5.5 V	100 mA	0.9 V	85 °C	-40 C	CL-2025-02	Non-Isolated PoL Module	ITE (Commercial)	1.8 V	0.04 in	2.5 mm	0.08 in	2 mm	1 mm	0.1 "	Surface Mount
Torex Semiconductor Ltd XCL101C491ER-G	8-TDFN Exposed Pad							CL-2025-02										Surface Mount
Torex Semiconductor Ltd XCL101C331BR-G	6-TDFN Exposed Pad	1	5.5 V	100 mA	0.9 V	85 °C	-40 C	CL-2025	Non-Isolated PoL Module	ITE (Commercial)	3.3 V	0.04 in	2.5 mm	0.08 in	2 mm	1 mm	0.1 "	Surface Mount
Torex Semiconductor Ltd XCL101A371ER-G	8-TDFN Exposed Pad							CL-2025-02										Surface Mount
