3111-2 Series

Catalog

CONN PC PIN CIRC .030DIA GOLD

Part	Length - Below Flange [x]	Length - Below Flange [x]	Termination	Mounting Type	Pin Size - Above Flange [diameter]	Pin Size - Above Flange	Contact Finish Thickness	Contact Finish Thickness	Insulation	Length - Overall [x]	Length - Overall [x]	Length - Above Flange	Length - Above Flange	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Terminal Style	Contact Material	Terminal Type	Board Thickness	Board Thickness
Mill-Max Manufacturing Corp. 3111-2-00-15-00-00-08-0	2.08 mm	0.082 "	Swage	Through Hole	0.03 in	0.76 mm	0.25 Ám	10 Áin	Non-Insulated	0.402 "	10.2 mm	0.3 in	7.62 mm	0.043 in	1.09 mm	Gold	1.77 mm	0.07 in	Single End	Brass Alloy	PC Pin	1.57 mm	0.062 "

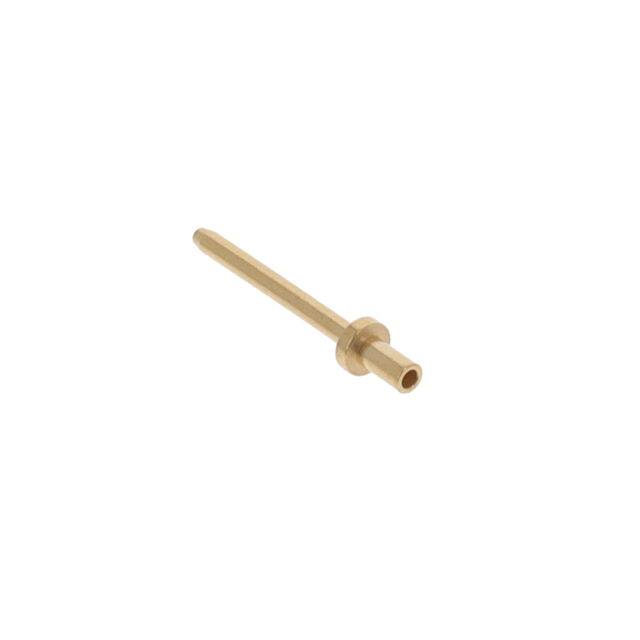

Mill-Max Manufacturing Corp. 3111-2-00-21-00-00-08-0	2.08 mm	0.082 "	Swage	Through Hole	0.03 in	0.76 mm	0.51 µm	20 µin	Non-Insulated	0.402 "	10.2 mm	0.3 in	7.62 mm	0.043 in	1.09 mm	Gold	1.77 mm	0.07 in	Single End	Brass Alloy	PC Pin	1.57 mm	0.062 "
Mill-Max Manufacturing Corp. 3111-2-00-34-00-00-08-0	2.08 mm	0.082 "	Swage	Through Hole	0.03 in	0.76 mm	1.27 µm	50 µin	Non-Insulated	0.402 "	10.2 mm	0.3 in	7.62 mm	0.043 in	1.09 mm	Gold	1.77 mm	0.07 in	Single End	Brass Alloy	PC Pin	1.57 mm	0.062 "
Mill-Max Manufacturing Corp. 3111-2-00-01-00-00-08-0	2.08 mm	0.082 "	Swage	Through Hole	0.03 in	0.76 mm	5.08 Ám	200 Áin	Non-Insulated	0.402 "	10.2 mm	0.3 in	7.62 mm	0.043 in	1.09 mm	Tin-Lead	1.77 mm	0.07 in	Single End	Brass Alloy	PC Pin	1.57 mm	0.062 "
