4N27 Series

Catalog

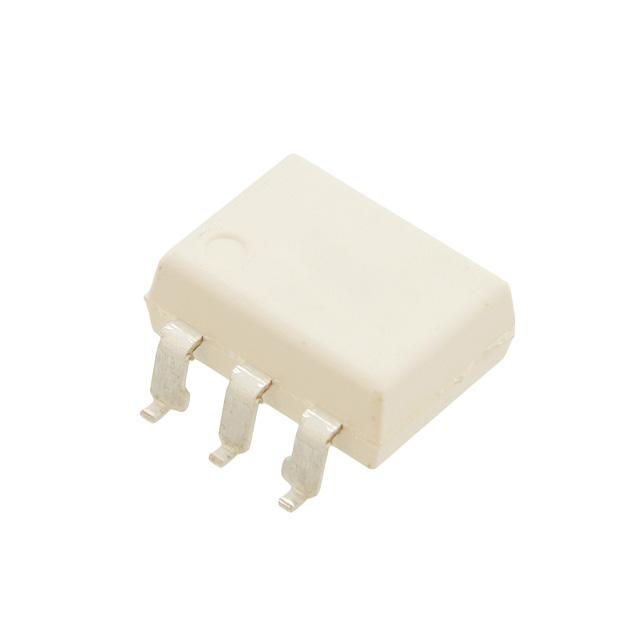

OPTOISO 7.5KV TRANS W/BASE 6SMD

Part	Voltage - Output (Max) [Max]	Voltage - Forward (Vf) (Typ)	Turn On / Turn Off Time (Typ)	Vce Saturation (Max) [Max]	Voltage - Isolation	Supplier Device Package	Current Transfer Ratio (Min) [Min]	Number of Channels	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Input Type	Current - DC Forward (If) (Max) [Max]	Package / Case	Package / Case	Package / Case
ON Semiconductor 4N27FVM	30 V	1.18 V	2 µs	500 mV	7500 Vpk	6-SMD	10 %	1	100 °C	-55 °C	6-SMD Gull Wing	Surface Mount	DC	60 mA
ON Semiconductor 4N27FR2M	30 V	1.18 V	2 µs	500 mV	7500 Vpk	6-SMD	10 %	1	100 °C	-55 °C	6-SMD Gull Wing	Surface Mount	DC	60 mA
ON Semiconductor 4N27TM	30 V	1.18 V	2 µs	500 mV	7500 Vpk	6-DIP	10 %	1	100 °C	-40 °C	6-DIP	Through Hole	DC	60 mA	10.16 mm	10.16 mm
ON Semiconductor 4N27TVM	30 V	1.18 V	2 µs	500 mV	4170 Vrms	6-DIP	10 %	1	100 °C	-40 °C	6-DIP	Through Hole	DC	60 mA	10.16 mm	10.16 mm
ON Semiconductor 4N27VM	30 V	1.18 V	2 µs	500 mV	4170 Vrms	6-DIP	10 %	1	100 °C	-40 °C	6-DIP	Through Hole	DC	60 mA		7.62 mm	0.3 in
ON Semiconductor 4N27	30 V	1.18 V	2 µs	500 mV	5300 Vrms	6-DIP	10 %	1	100 °C	-55 °C	6-DIP	Through Hole	DC	100 mA		7.62 mm	0.3 in
