892-033 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 33POS 0.100

Part	Material - Insulation	Termination Rows	Contact Finish	Number of Positions/Bay/Row	Card Type	Mounting Type	Number of Positions [custom]	Pitch	Pitch	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Termination	Gender	Contact Material	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Color	Read Out

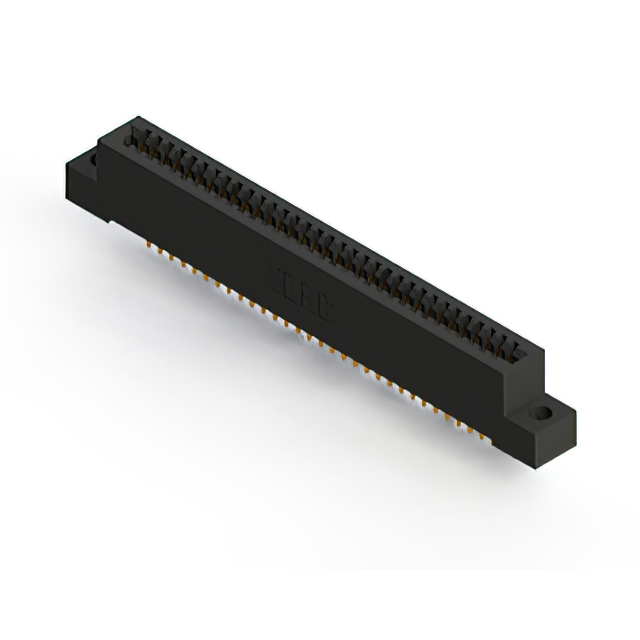

EDAC Inc. 892-033-540-104	Polyphenylene Sulfide (PPS)	1	Gold	33	Non Specified - Single Edge	Through Hole	33	0.1 "	2.54 mm	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Wire Wrap	Female	Copper Alloy	Cantilever	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	1	Black	Single

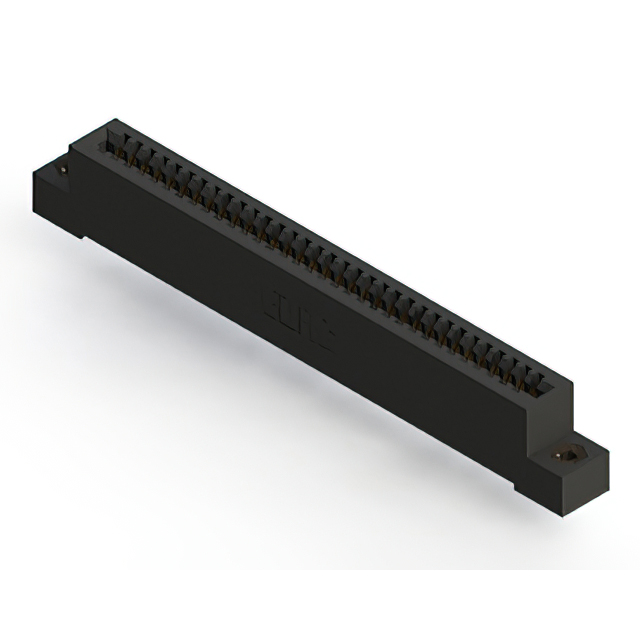

EDAC Inc. 892-033-524-108	Polyphenylene Sulfide (PPS)	1	Gold	33	Non Specified - Single Edge	Through Hole	33	0.1 "	2.54 mm	4-40 Flush Mount Threaded Insert Top Opening			Solder	Female	Copper Alloy	Cantilever	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	1	Black	Single

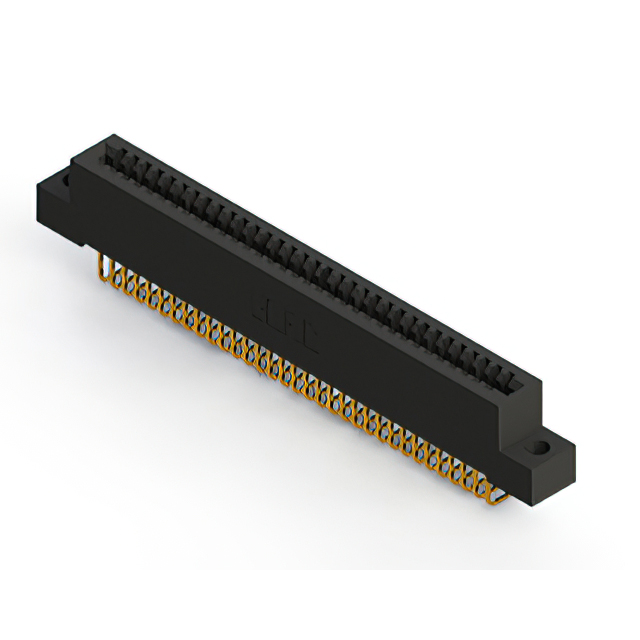

EDAC Inc. 892-033-558-104	Polyphenylene Sulfide (PPS)	1	Gold	33	Non Specified - Single Edge	Right Angle Through Hole	33	0.1 "	2.54 mm	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Solder	Female	Copper Alloy	Cantilever	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	1	Black	Single
EDAC Inc. 892-033-559-101	Polyphenylene Sulfide (PPS)	1	Gold	33	Non Specified - Single Edge	Right Angle Through Hole	33	0.1 "	2.54 mm				Solder	Female	Copper Alloy	Cantilever	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	1	Black	Single

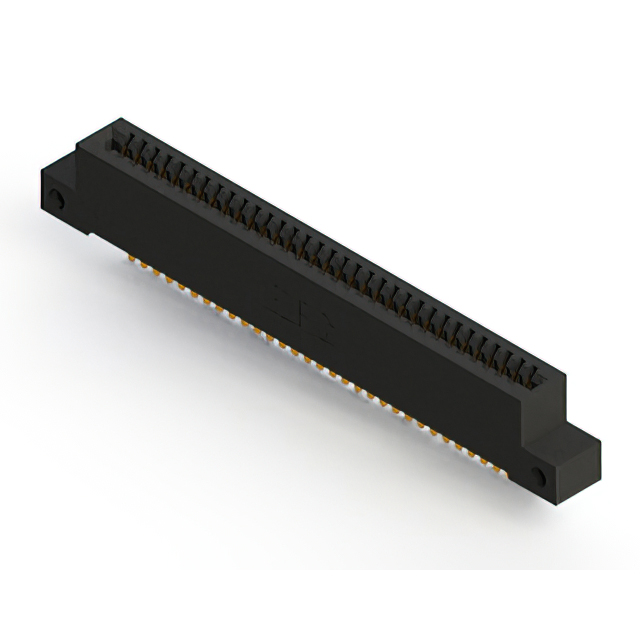

EDAC Inc. 892-033-500-112	Polyphenylene Sulfide (PPS)	1	Gold	33	Non Specified - Single Edge	Through Hole	33	0.1 "	2.54 mm	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Solder Eyelet(s)	Female	Copper Alloy	Cantilever	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	1	Black	Single

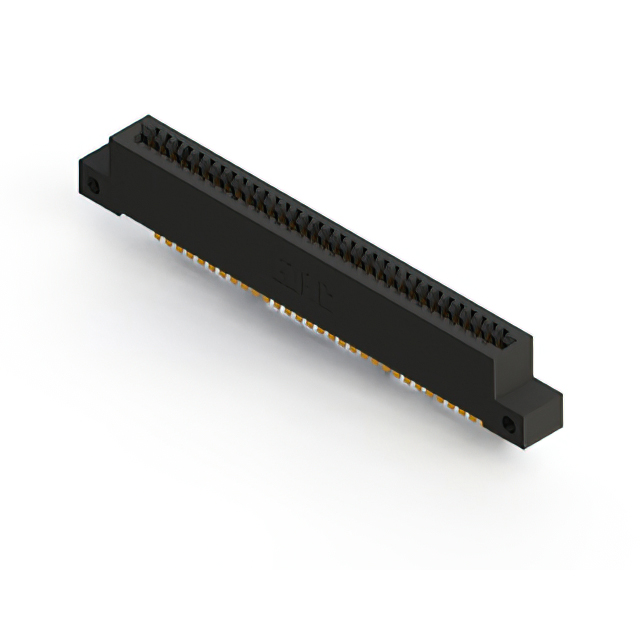

EDAC Inc. 892-033-544-112	Polyphenylene Sulfide (PPS)	1	Gold	33	Non Specified - Single Edge	Through Hole	33	0.1 "	2.54 mm	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Wire Wrap	Female	Copper Alloy	Cantilever	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	1	Black	Single
EDAC Inc. 892-033-558-108	Polyphenylene Sulfide (PPS)	1	Gold	33	Non Specified - Single Edge	Right Angle Through Hole	33	0.1 "	2.54 mm	4-40 Flush Mount Threaded Insert Top Opening			Solder	Female	Copper Alloy	Cantilever	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	1	Black	Single
EDAC Inc. 892-033-559-103	Polyphenylene Sulfide (PPS)	1	Gold	33	Non Specified - Single Edge	Right Angle Through Hole	33	0.1 "	2.54 mm	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Solder	Female	Copper Alloy	Cantilever	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	1	Black	Single
EDAC Inc. 892-033-541-107	Polyphenylene Sulfide (PPS)	1	Gold	33	Non Specified - Single Edge	Through Hole	33	0.1 "	2.54 mm	Flush Mount M3 Threaded Insert Top Opening			Wire Wrap	Female	Copper Alloy	Cantilever	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	1	Black	Single
EDAC Inc. 892-033-523-112	Polyphenylene Sulfide (PPS)	1	Gold	33	Non Specified - Single Edge	Through Hole	33	0.1 "	2.54 mm	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Solder	Female	Copper Alloy	Cantilever	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	1	Black	Single
