77053 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

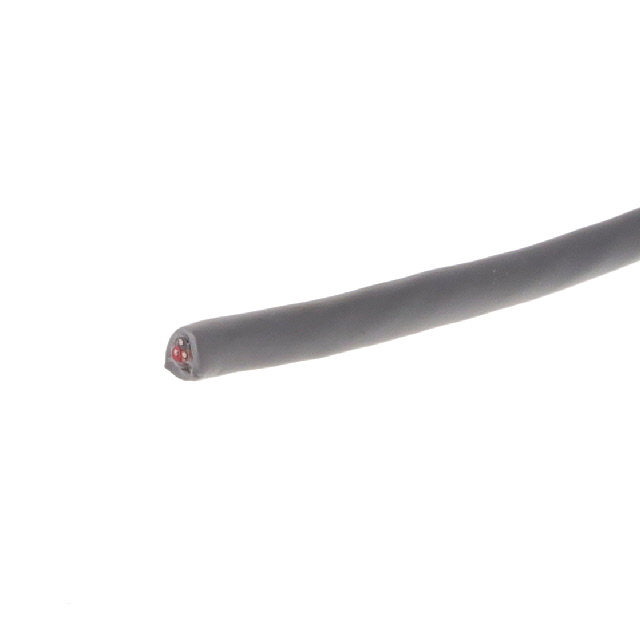

CABLE 3COND 28AWG SLATE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Voltage | Conductor Insulation | Features | Length | Length | Conductor Material | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Ratings | Jacket Color | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | -50 °C | 105 ░C | Multi-Conductor | 600 V | Polyphenylene Ether Modified (mPPE) | Biological Compatibility Rip Cord | 304.8 m | 1000 ft | Copper Tinned | 28 AWG | 0.144 in | 3.66 mm | 7 | 36 AWG | Polyphenylene Ether Modified (mPPE) | ISO 10993 UL Style 21915 | Slate | 3 | 0.813 mm | 0.032 in | ||
ALPHA WIRE | -50 °C | 105 ░C | Multi-Conductor | 600 V | Polyphenylene Ether Modified (mPPE) | Biological Compatibility Rip Cord | Copper Tinned | 28 AWG | 0.144 in | 3.66 mm | 7 | 36 AWG | Polyphenylene Ether Modified (mPPE) | ISO 10993 UL Style 21915 | Slate | 3 | 0.813 mm | 0.032 in | 100 ft | 30.5 m |
