8214 Series
Manufacturer: Belden Inc.
Beta
⌘K

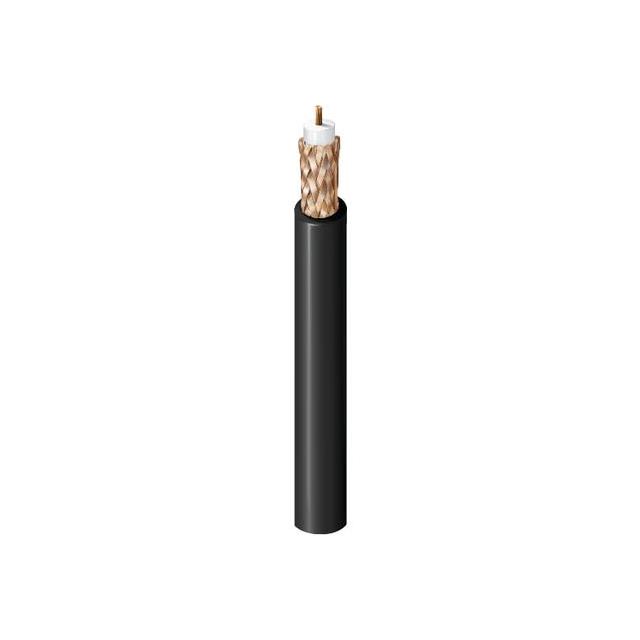

CABLE COAXIAL RG-8 11AWG 100'
| Part | Conductor Material | VoP, Velocity of Propagation | Shield Coverage | Shield Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Conductor Strand | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Usage | Cable Group | Length | Length | Wire Gauge | Shield Type | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Bare | 78 | 95 % | Copper Bare | 0.285 in | 7.24 mm | 80 °C | -40 C | Black | 7 Strands 19 AWG | 0.403 in | 10.24 mm | Poly-Vinyl Chloride (PVC) | RF Signal | RG-8 | 100 ' | 30.48 m | 11 AWG | Braid | Coaxial |
