CH1NBU Series
Manufacturer: CIT Relay and Switch
Beta
⌘K

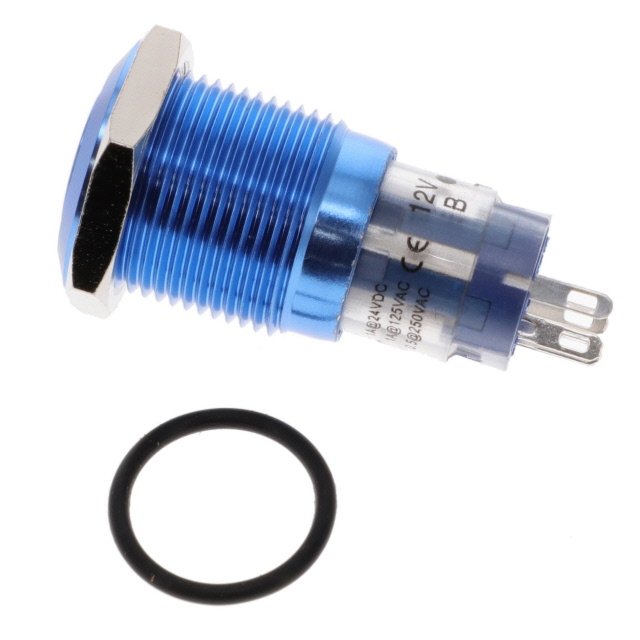

SWITCH PB SPDT 1A 125V
| Part | Electrical Life | Switch Function | Illumination Type, Color | Type | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Actuator Type | Illumination Voltage (Nominal) | Mounting Type | Voltage Rating - DC | Voltage Rating - AC | Ingress Protection | Color - Actuator/Cap | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Circuit | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 30000 Cycles | On-Mom | Blue LED | Anti-Vandal Illuminated | 16 mm | 1 A | Button Flush Round | 12 VDC | Panel Mount Front | 24 V | 125 V | IP67 - Dust Tight Waterproof | Blue | -25 °C | 70 °C | Solder Lug | SPDT | No Marking |
