3446 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

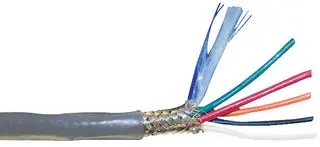

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 6 CONDUCTOR, 16 AWG, 1.23 MM², 100 FT, 30.5 M
| Part | Jacket Color | Length [x] | Length [x] | Usage | Cable Type | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Shield Type | Shield Coverage | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Slate | 30.5 m | 100 ft | Communication Control | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 0.864 mm | 0.034 in | 6 | Braid | 90 % | Copper Tinned | 0.376 in | 9.55 mm | 16 AWG | 105 ░C | -55 °C | Poly-Vinyl Chloride (PVC) | 19 Strands | 29 AWG | Copper Tinned |
ALPHA WIRE | Slate | 152.4 m | 500 ' | Communication Control | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 0.864 mm | 0.034 in | 6 | Braid | 90 % | Copper Tinned | 0.376 in | 9.55 mm | 16 AWG | 105 ░C | -55 °C | Poly-Vinyl Chloride (PVC) | 19 Strands | 29 AWG | Copper Tinned |
