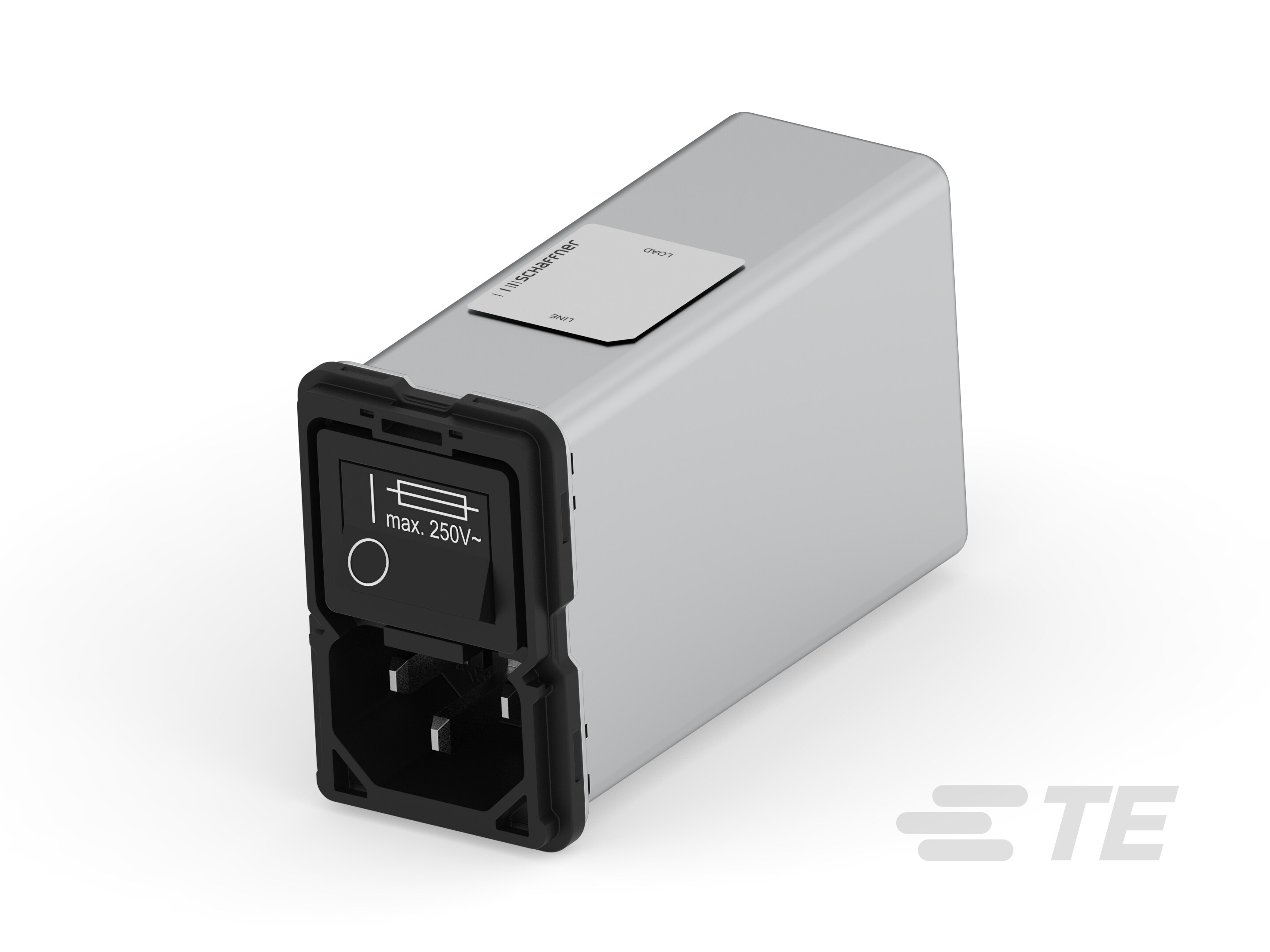

Schaffner FN9280 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

...

Part	Termination	Termination	Termination	Fuse Holder, Drawer	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Current Rating - Filter	Mounting Type	Connector Style	Approval Agency	Switch Features	Accomodates a Fuse	Filter Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Features	Ingress Protection	Connector Type	Material Flammability Rating
TE Connectivity AMP Connectors FN9280E-4-06	6.3 mm	Quick Connect	0.25 "	Twin Fused	2.5 mm	0.039 in	0.098 in	1 mm	4 A	Flange Panel Mount	IEC 320-C14	CQC CSA ENEC UR	Switch On-Off		Filtered (EMI RFI) - Commercial Medical	28.8 mm	47.1 mm	Front or Rear Side Mount	IP40	Receptacle Male Blades - Module	UL94 V-2
TE Connectivity AMP Connectors FN9280-4-100		Spring-Cage		Twin Fused					4 A	Flange Panel Mount	IEC 320-C14	CQC CSA ENEC UL	Switch On-Off		Filtered (EMI RFI) - Commercial	28.8 mm	47.1 mm	Front or Rear Side Mount	IP40	Receptacle Male Blades - Module	UL94 V-2
TE Connectivity AMP Connectors FN9280B-6-06	6.3 mm	Quick Connect	0.25 "	Twin Fused					6 A	Flange Panel Mount	IEC 320-C14	CQC CSA ENEC UL	Switch On-Off		Filtered (EMI RFI) - Commercial Medical	28.8 mm	47.1 mm	Front or Rear Side Mount	IP40	Receptacle Male Blades - Module	UL94 V-2
TE Connectivity AMP Connectors FN9280B-10-06	6.3 mm	Quick Connect	0.25 "	Twin Fused					10 A	Flange Panel Mount	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off		Filtered (EMI RFI) - Commercial Medical	28.8 mm	47.1 mm	Front or Rear Side Mount	IP40	Receptacle Male Blades - Module	UL94 V-2
TE Connectivity AMP Connectors FN9289E-1-100		Spring-Cage		Twin Fused	2.5 mm	0.039 in	0.098 in	1 mm	1 A	Panel Mount Snap-In	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off		Filtered (EMI RFI) - Commercial Medical	28.8 mm	47.8 mm		IP40	Receptacle Male Blades - Module	UL94 V-2
TE Connectivity AMP Connectors FN9289B-4-06	6.3 mm	Quick Connect	0.25 "	Twin Fused	2.5 mm	0.039 in	0.098 in	1 mm	4 A	Panel Mount Snap-In	IEC 320-C14	CQC CSA ENEC UL	Switch On-Off		Filtered (EMI RFI) - Commercial Medical	28.8 mm	47.1 mm		IP40	Receptacle Male Blades - Module	UL94 V-2
TE Connectivity AMP Connectors FN9280-6-100		Spring-Cage		Twin Fused					6 A	Flange Panel Mount	IEC 320-C14	CQC CSA ENEC UL	Switch On-Off		Filtered (EMI RFI) - Commercial	28.8 mm	47.1 mm	Front or Rear Side Mount	IP40	Receptacle Male Blades - Module	UL94 V-2
TE Connectivity AMP Connectors FN9280E-1-100		Spring-Cage		Twin Fused					1 A	Flange Panel Mount	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off		Filtered (EMI RFI) - Commercial Medical	28.8 mm	47.1 mm	Front or Rear Side Mount	IP40	Receptacle Male Blades - Module	UL94 V-2
TE Connectivity AMP Connectors FN9289-6-06	6.3 mm	Quick Connect	0.25 "	Twin Fused	2.5 mm	0.039 in	0.098 in	1 mm	6 A	Panel Mount Snap-In	IEC 320-C14	CQC CSA ENEC UL	Switch On-Off		Filtered (EMI RFI) - Commercial	28.8 mm	47.1 mm		IP40	Receptacle Male Blades - Module	UL94 V-2
TE Connectivity AMP Connectors FN9282-10-06	6.3 mm	Quick Connect	0.25 "	Twin Fused					10 A	Flange Panel Mount	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off		Filtered (EMI RFI) - Commercial	28.8 mm	47.1 mm	Front Side Mount	IP40	Receptacle Male Blades - Module	UL94 V-2
