TPS7A03 Series

Catalog

NANOPOWER-IQ 200NA 200MA LOW-DROPOUT (LDO) VOLTAGE REGULATOR WITH FAST TRANSIENT RESPONSE

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Quiescent (Iq)	Voltage Dropout (Max) [Max]	Number of Regulators	Output Configuration	Current - Output	Supplier Device Package	Control Features	Mounting Type	Voltage - Output (Min/Fixed)	PSRR	Package / Case	Voltage - Input (Max) [Max]	Protection Features	Voltage - Output (Min/Fixed) [Min]	Voltage Dropout (Max)

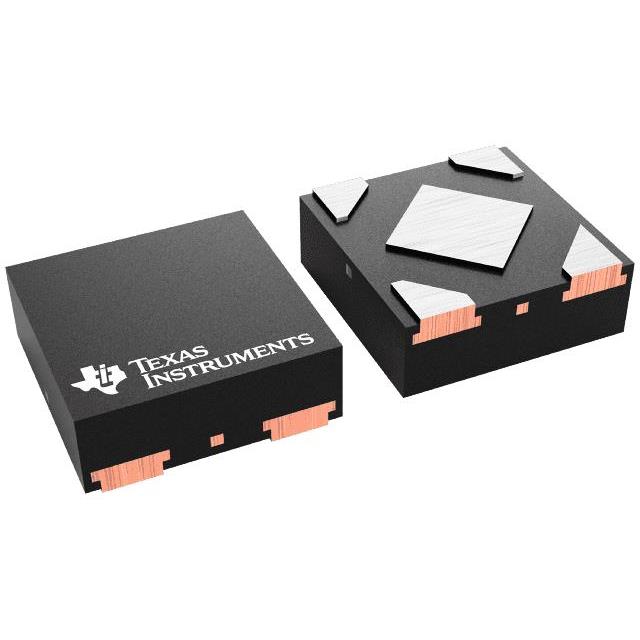

Texas Instruments TPS7A0312PDQNR	-40 C	125 °C	300 nA	0.79 V	1	Positive	0.2 A	4-X2SON (1x1)	Current Limit Enable	Surface Mount	1.2 V	55 dB	4-XDFN Exposed Pad	6 V	Over Current Over Temperature Under Voltage Lockout (UVLO)
Texas Instruments TPS7A0312DQNR	-40 C	125 °C	300 nA	0.79 V	1	Positive	0.2 A	4-X2SON (1x1)	Current Limit Enable	Surface Mount	1.2 V	55 dB	4-XDFN Exposed Pad	6 V	Over Current Over Temperature Under Voltage Lockout (UVLO)
Texas Instruments TPS7A0313PDBVR	-40 C	125 °C	300 nA		1	Positive	0.2 A	SOT-23-5	Enable	Surface Mount		55 dB	SC-74A SOT-753	6 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	1.3 V	0.7 V
Texas Instruments TPS7A0310PDQNR	-40 C	125 °C	300 nA		1	Positive	0.2 A	4-X2SON (1x1)	Enable	Surface Mount	1 V	55 dB	4-XDFN Exposed Pad	6 V	Over Current Over Temperature Under Voltage Lockout (UVLO)		0.85 V
Texas Instruments TPS7A0315PDBVR	-40 C	125 °C	300 nA	0.56 V	1	Positive	0.2 A	SOT-23-5	Enable	Surface Mount	1.5 V	55 dB	SC-74A SOT-753	6 V	Over Current Over Temperature Under Voltage Lockout (UVLO)
Texas Instruments TPS7A0323PDBVR	-40 C	125 °C	300 nA		1	Positive	0.2 A	SOT-23-5	Enable	Surface Mount	2.3 V	55 dB	SC-74A SOT-753	6 V	Over Current Over Temperature Under Voltage Lockout (UVLO)
Texas Instruments TPS7A0315PDQNR1	-40 C	125 °C	300 nA	0.56 V	1	Positive	0.2 A	4-X2SON (1x1)	Current Limit Enable	Surface Mount	1.5 V	55 dB	4-XDFN Exposed Pad	6 V	Over Current Over Temperature Under Voltage Lockout (UVLO)
Texas Instruments TPS7A0315PDQNR	-40 C	125 °C	300 nA	0.56 V	1	Positive	0.2 A	4-X2SON (1x1)	Enable	Surface Mount	1.5 V	55 dB	4-XDFN Exposed Pad	6 V	Over Current Over Temperature Under Voltage Lockout (UVLO)
Texas Instruments TPS7A0312PDBVR	-40 C	125 °C	300 nA		1	Positive	0.2 A	SOT-23-5	Enable	Surface Mount	1.2 V	55 dB	SC-74A SOT-753	6 V	Over Current Over Temperature Under Voltage Lockout (UVLO)		0.7 V
Texas Instruments TPS7A0318PDQNRM3	-40 C	125 °C	300 nA		1	Positive	0.2 A	4-X2SON (1x1)	Current Limit Enable	Surface Mount	1.8 V	55 dB	4-XDFN Exposed Pad	6 V	Over Current Over Temperature Under Voltage Lockout (UVLO)
