UO-19 Series
Manufacturer: Floyd Bell Inc
Beta
⌘K

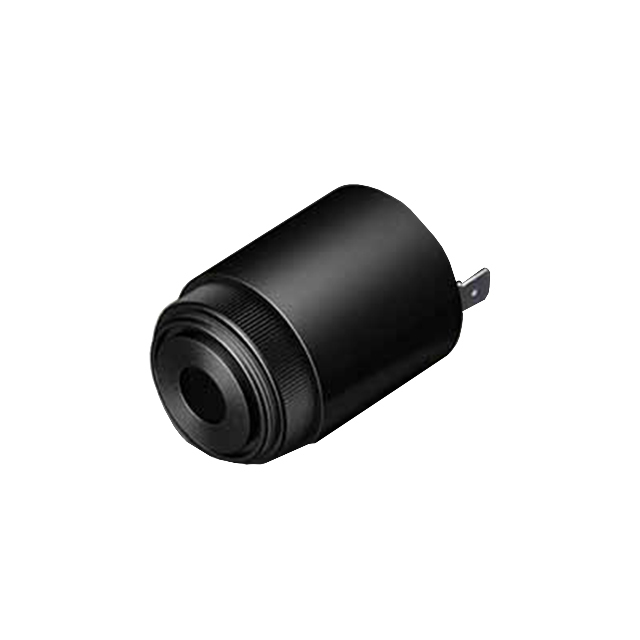

BUZZER PIEZO 35.81MM PNL MNT
| Part | Ingress Protection | Size / Dimension [diameter] | Size / Dimension [diameter] | Termination | Termination | Termination | Technology | Current - Supply [Max] | Current - Supply [Min] | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Operating Mode | Frequency | Port Location | Sound Pressure Level (SPL) | Voltage Range [Max] | Voltage Range [Min] | Approval Agency | Driver Circuitry | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | IP68 - Dust Tight Waterproof | 1.41 in | 35.81 mm | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | Piezo | 60 mA | 40 mA | 46.74 mm | 1.84 in | Whooping | 2.1 kHz | Top | 109 dB | 30 V | 20 VDC | UL UR | Indicator Internally Driven | Panel Mount |
 Floyd Bell Inc | IP68 - Dust Tight Waterproof | 1.41 in | 35.81 mm | 0.25 " | Quick Connect Tab | 6.35 mm | Piezo | 60 mA | 40 mA | 46.74 mm | 1.84 in | Whooping | 2.1 kHz | Top | 109 dB | 30 V | 20 VDC | UL UR | Indicator Internally Driven | Panel Mount |
