53S107 Series
Manufacturer: Rosenberger
Beta
⌘K

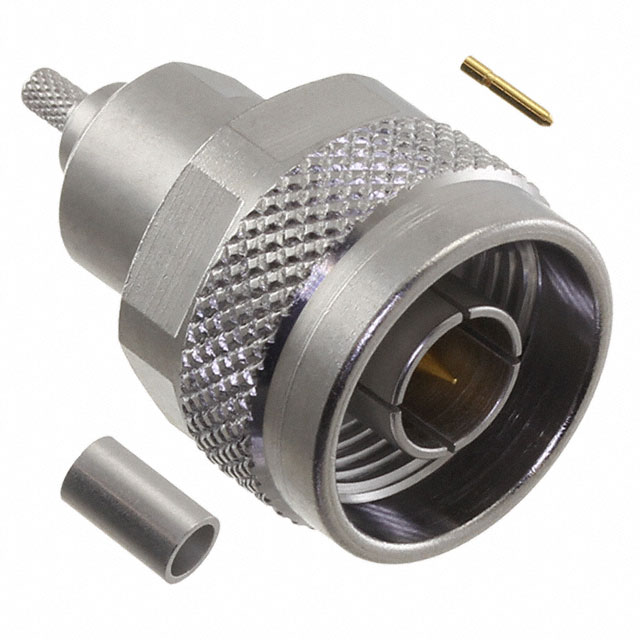

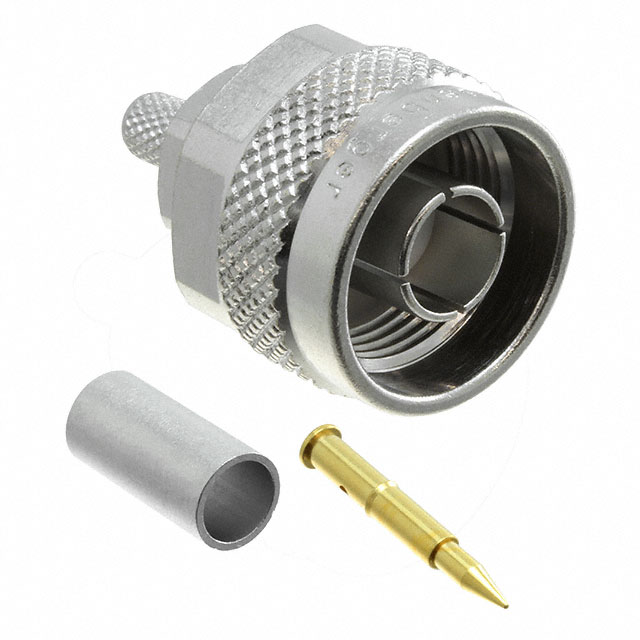

CONN N TYPE PLUG STR 50OHM CRIMP
| Part | Insertion Loss | Center Contact Plating | Mating Cycles | Voltage Rating | Includes | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Body Finish | Number of Ports | Center Contact Material | Housing Color | Cable Group | Connector Style | Mounting Type | Fastening Type | Connector Type | Frequency - Max [Max] | Impedance | Contact Termination | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 0.05 dB | Gold | 500 | 500 V | 1 Connector 1 Contact 1 Ferrule | Polytetrafluoroethylene (PTFE) | 155 C | -55 C | Brass | White Bronze | 1 | Brass | Silver | 141 RG-58C | N Type | Free Hanging (In-Line) | Threaded | Plug Male Pin | 11 GHz | 50 Ohms | Crimp | Crimp |
 Rosenberger | 0.05 dB | Gold | 500 | 500 V | 1 Connector 1 Contact 1 Ferrule | Polytetrafluoroethylene (PTFE) | 85 °C | -45 °C | Brass | White Bronze | 1 | Bronze | Silver | 188A 316 RG-174A | N Type | Free Hanging (In-Line) | Threaded | Plug Male Pin | 11 GHz | 50 Ohms | Crimp | Crimp |
