XZDG55 Series
Manufacturer: SunLED
Beta
⌘K

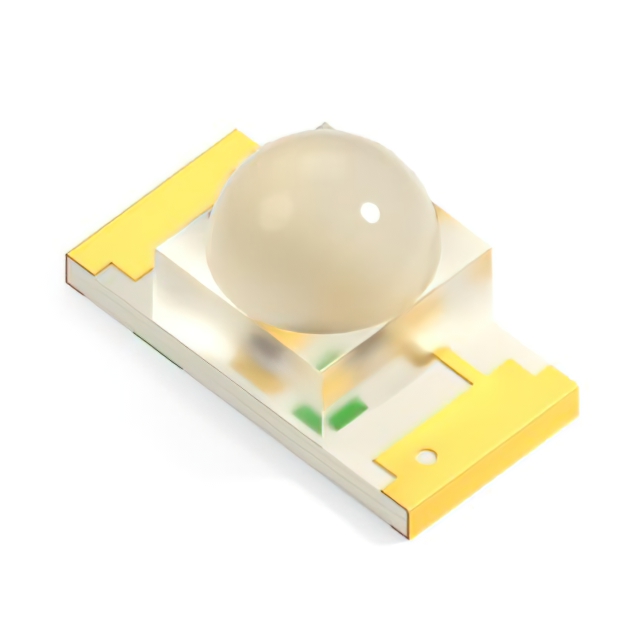

LED GREEN CLEAR CHIP SMD
| Part | Viewing Angle | Wavelength - Dominant | Height (Max) [Max] [z] | Package / Case | Voltage - Forward (Vf) (Typ) | Lens Color | Millicandela Rating | Lens Transparency | Current - Test | Mounting Type | Configuration | Wavelength - Peak | Lens Style | Supplier Device Package | Lens Size [diameter] | Color | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | 35 ° | 525 nm | 1.8 mm | 1206 (3216 Metric) | 3.3 V | Colorless | 2290 mcd | Clear | 20 mA | Surface Mount | Standard | 515 nm | Round with Domed Top | Chip LED | 1.6 mm | Green | 1.6 mm | 3.2 mm |
