MP502 Series

Catalog

BRIDGE RECT 1P 200V 50A MP-50W

Part	Current - Average Rectified (Io)	Diode Type	Voltage - Peak Reverse (Max) [Max]	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Reverse Leakage @ Vr	Supplier Device Package

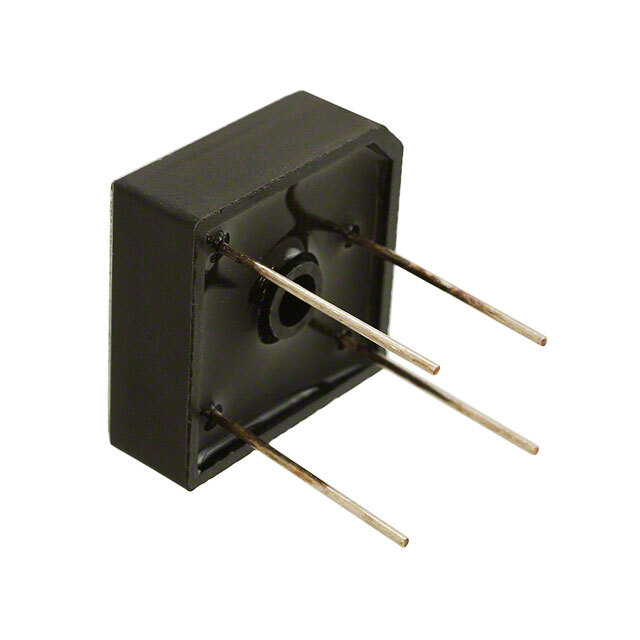

Micro Commercial Components MP502W-BP	50 A	Single Phase	200 V	Through Hole	1.2 V	Standard	150 °C	-50 °C	4-Square MP-50W	10 µA	MP-50W
Micro Commercial Components MP502-BP	50 A	Single Phase	200 V	QC Terminal	1.2 V	Standard	150 °C	-50 °C	4-Square MP-50	10 µA	MP-50
