680M21W Series
Manufacturer: NorComp Inc.
Beta
⌘K
COMBINATION LAYOUT D SUB CONNECTOR, POWER-D 680M SERIES, DB-21W1, PLUG, 21 CONTACTS, SOLDER
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Current Rating (Amps) | Shell Size, Connector Layout | Shell Size, Connector Layout | Connector Style | Number of Rows [custom] | Shell Material, Finish | Contact Finish | Features | Contact Finish Thickness | Connector Type | Number of Positions | Flange Feature | Contact Type | Material Flammability Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

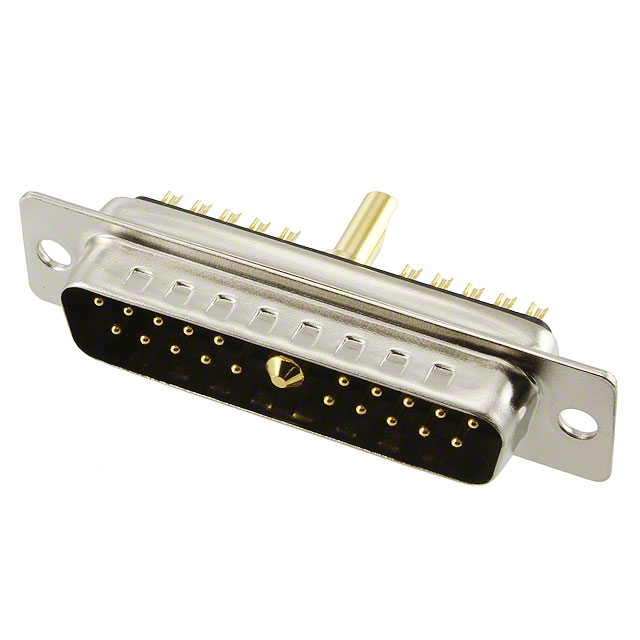

 NorComp Inc. | Black | -55 C | 125 °C | Copper Alloy | Polybutylene Terephthalate (PBT) | 20A 5A | 21W1 B DB | 3 | Combo D-Sub | 2 | Nickel Plated Steel | Gold | Grounding Indents | Flash | Plug Male Pins | 21 | Housing/Shell (Unthreaded) | Signal and Power | UL94 V-0 | Panel Mount |

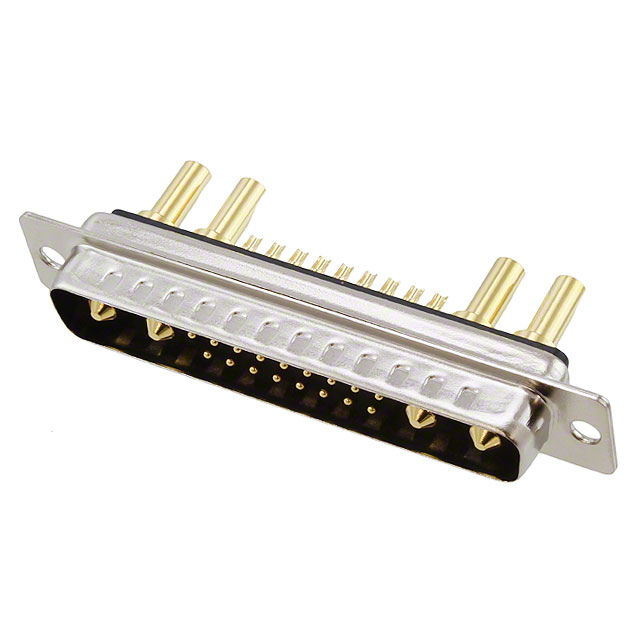

 NorComp Inc. | -55 C | 125 °C | Copper Alloy | Polybutylene Terephthalate (PBT) | 20A 5A | 4 (DC C) - 21WA4 | Combo D-Sub | 2 | Nickel Plated Steel | Gold | Grounding Indents | Flash | Plug Male Pins | 21 | Housing/Shell (Unthreaded) | Signal and Power | UL94 V-0 | Panel Mount |
