Samxd0 Series Series

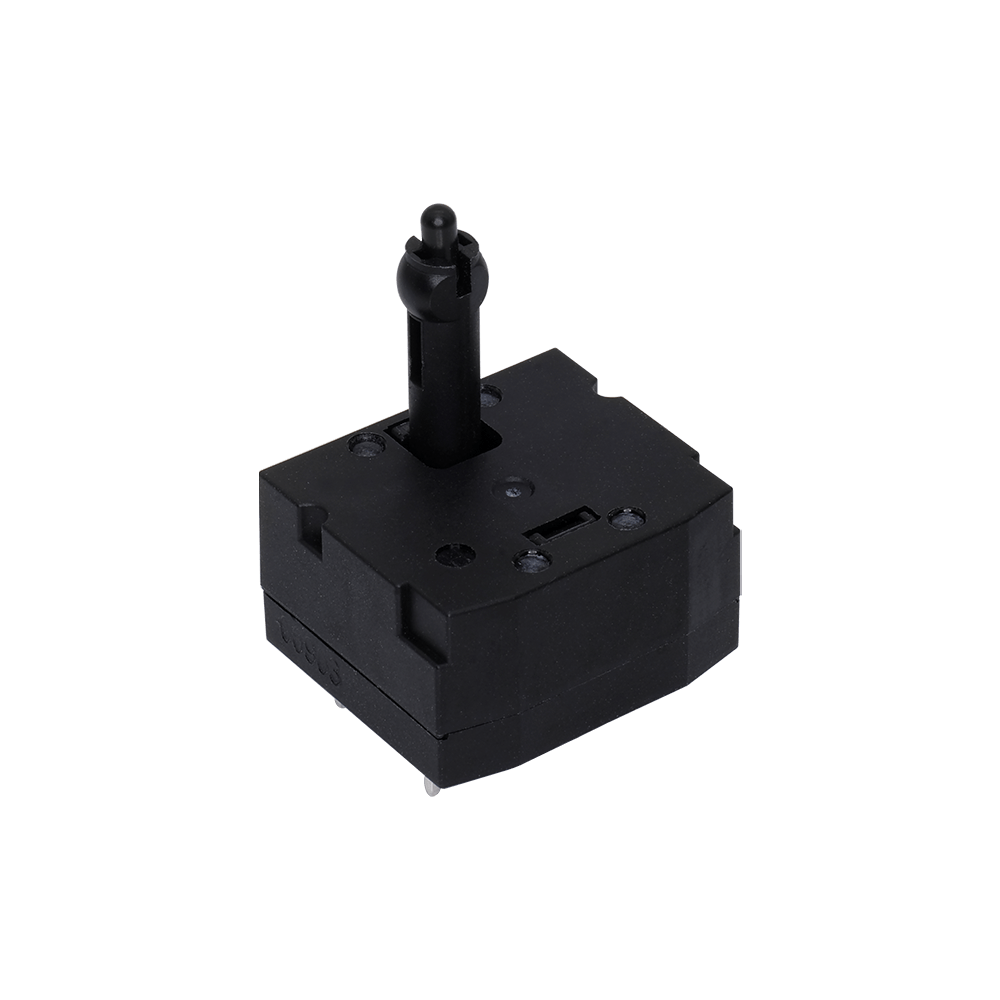

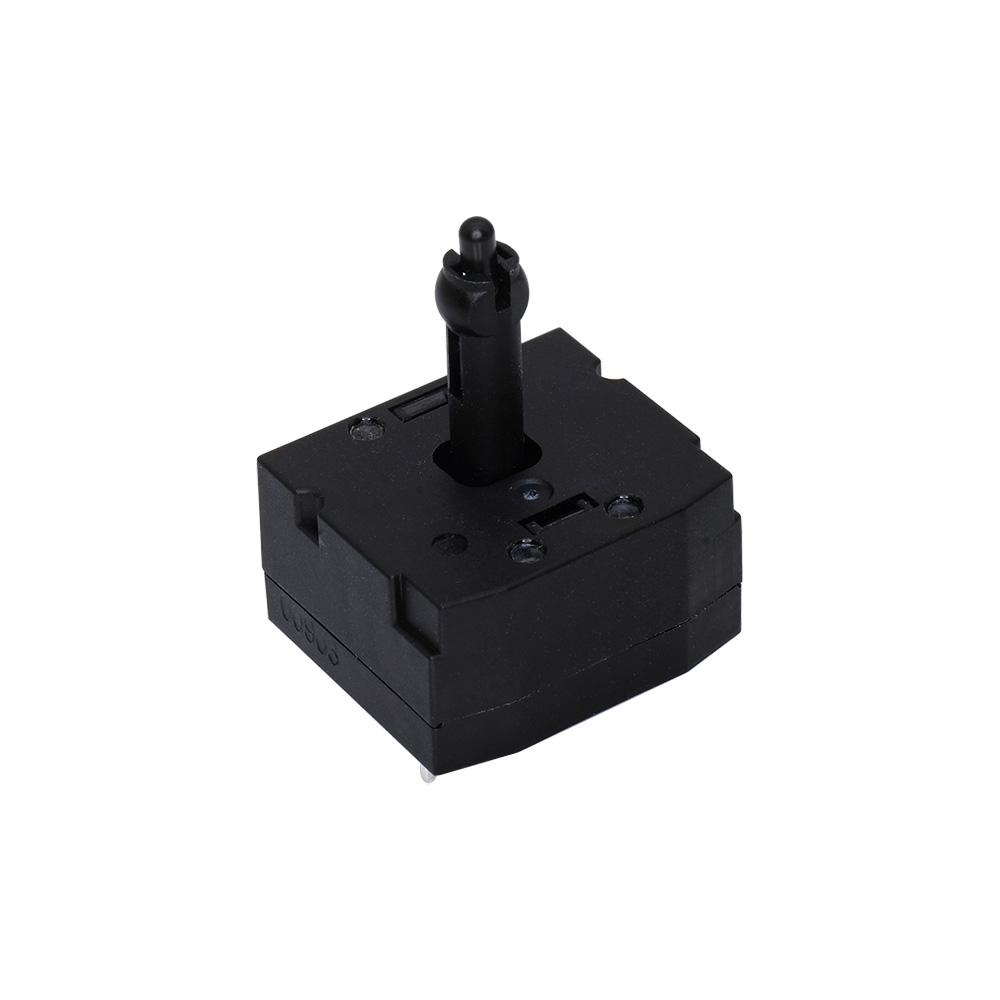

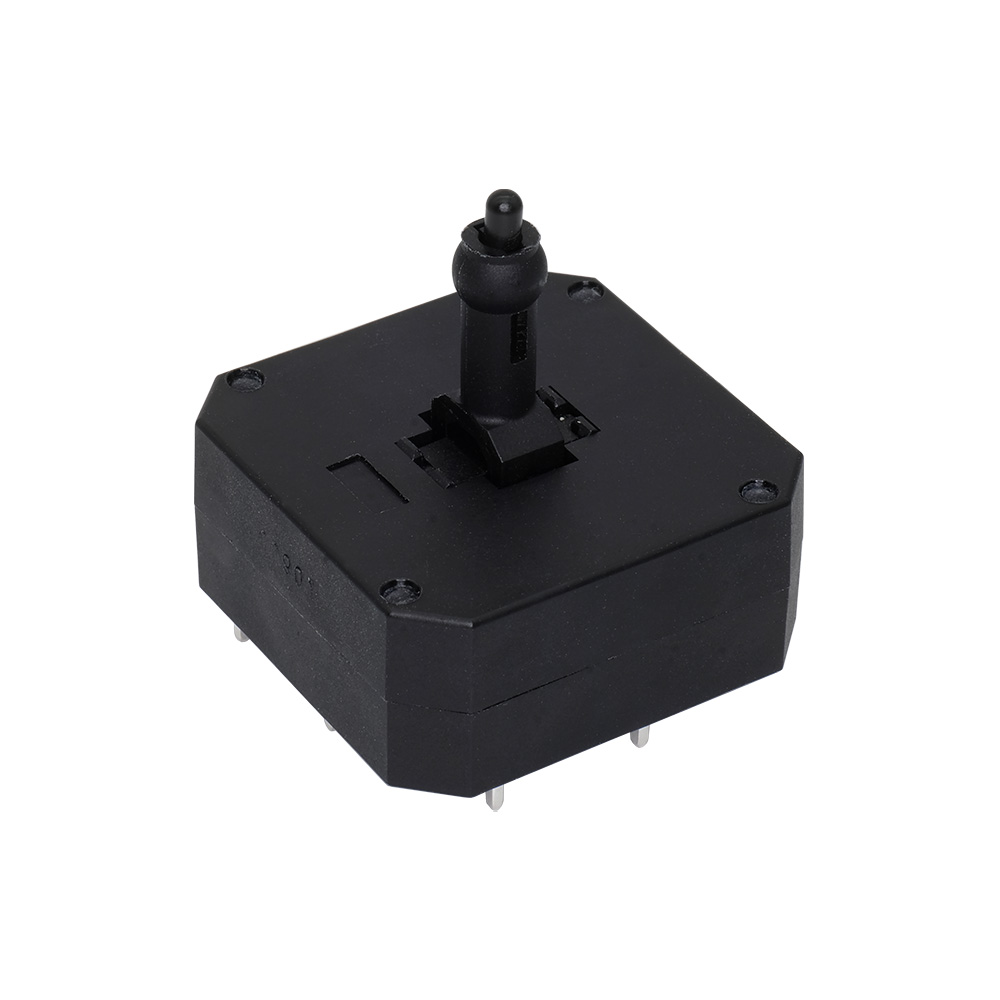

Multiway dust protected seat adjustment power switches

Catalog

Multiway dust protected seat adjustment power switches

Part	Operating Force	Electrical Life	Mechanical Life	Ingress Protection	Termination Style	Current Rating (Amps)	Type	Output	Mounting Type	Voltage Rating - DC	Actuator Type	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]
LITTELFUSE SAMXDH2MR10SP	612 gf	30000 Cycles	30000 Steps	IP54 - Dust Protected Water Resistant	PC Pin	15 A	Navigation Switch 1 - Axis	Digital (Mechanical Switch)	Through Hole	14 V	Plunger for Cap	2-Way Directional	85 °C	-40 C
LITTELFUSE SAMXDH2LS11	612 gf	30000 Cycles	30000 Steps	IP54 - Dust Protected Water Resistant	PC Pin	15 A	Navigation Switch 1 - Axis	Digital (Mechanical Switch)	Through Hole	14 V	Plunger for Cap	2-Way Directional	85 °C	-40 C
LITTELFUSE SAMXDH4MS11				IP54 - Dust Protected Water Resistant	PC Pin	15 A	Navigation Switch 2 - Axis	Digital (Mechanical Switch)	Through Hole	14 V	Plunger for Cap	4-Way Directional	85 °C	-40 C
LITTELFUSE SAMXDH2LR14SP				IP54 - Dust Protected Water Resistant	PC Pin	15 A	Navigation Switch 1 - Axis	Digital (Mechanical Switch)	Through Hole	14 V	Plunger for Cap	2-Way Directional	85 °C	-40 C

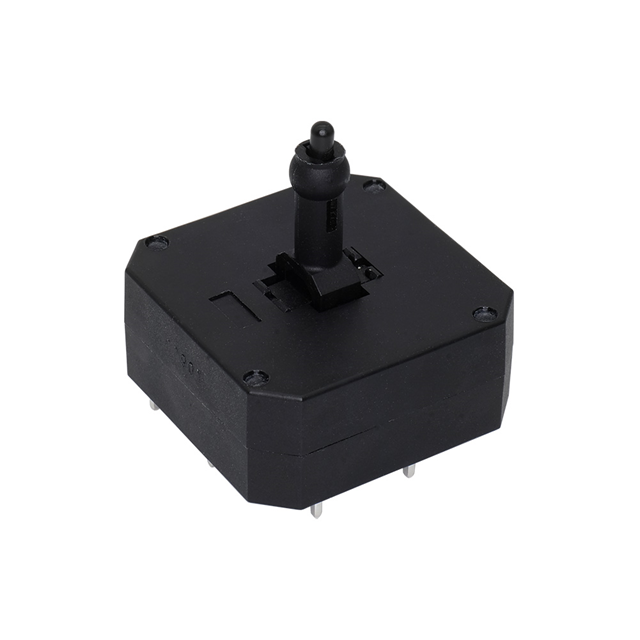

LITTELFUSE SAMXDH4MR11SP	612 gf	30000 Cycles	30000 Steps	IP54 - Dust Protected Water Resistant	PC Pin	15 A	Navigation Switch 2 - Axis	Digital (Mechanical Switch)	Through Hole	14 V	Plunger for Cap	4-Way Directional	85 °C	-40 C
LITTELFUSE SAMXDH2MR14SP				IP54 - Dust Protected Water Resistant	PC Pin	15 A	Navigation Switch 1 - Axis	Digital (Mechanical Switch)	Through Hole	14 V	Plunger for Cap	2-Way Directional	85 °C	-40 C
LITTELFUSE SAMXDH2LR10SP				IP54 - Dust Protected Water Resistant	PC Pin	15 A	Navigation Switch 1 - Axis	Digital (Mechanical Switch)	Through Hole	14 V	Plunger for Cap	2-Way Directional	85 °C	-40 C
LITTELFUSE SAMXDH2LR10				IP54 - Dust Protected Water Resistant	PC Pin	15 A	Navigation Switch 1 - Axis	Digital (Mechanical Switch)	Through Hole	14 V	Plunger for Cap	2-Way Directional	85 °C	-40 C

Catalog

Multiway dust protected seat adjustment power switches

Description

2 and 4 ways power switches for seat adjustment. Capable of handling 15A at 14VDC power, this SAMXD new version is dust proof and can offer different style of actuators, with or without spring pin for interface button tolerance management.
